2 TECHNICAL DATA OF THE ENGINES MOUNTED ON THE DIFFERENT
VERSIONS
TECHNICAL FEATURES MC 2300 D MC 2300 H MC 2300 HS MC 2300 MC 2300 B
Engine YANMAR
L 48 AE DI
HONDA
GX 160
HONDA
GC 160
ACME
A 200 B
BRIGGS &
STRATTON
Weight Cultivator
version
Kg. 81 Kg. 70 Kg. 66,5 Kg. 72 Kg. 75
Weight Law n mow er
version
Kg. 85 Kg. 74 Kg. 70,5 Kg. 76 Kg. 79
Cycle diesel Otto (OHV) Otto Otto Otto
kW - (HP) 3,48 (4,7) 4 - (5,5) 3,7 - (5) 4 (5,5) 3,7 (5,00)
Displacement 211 cc. 168 cc. 160 cc. 220 206
RPM 3.600 3.600 3.600 3.600 3.600
Consumption/HR Kg./h 0,90 Kg./h 1.20 Kg./h. 1,15 Kg./h 1,82 Kg./h 1,60
ENGINES WHICH EQUIPS THE MACHINES HAVE ALL THE FOLLOWING CHARACTERISTICS:
• Starting with autowinding rope.
• Dry air-filter.
• Oil quantity in the engine 0,6 l.
• Working with standard car petrol 90/100 octanes ron. Diesel fuel MC 2300 D.
• Cone clutch in oil bath with lined hub for all versions.

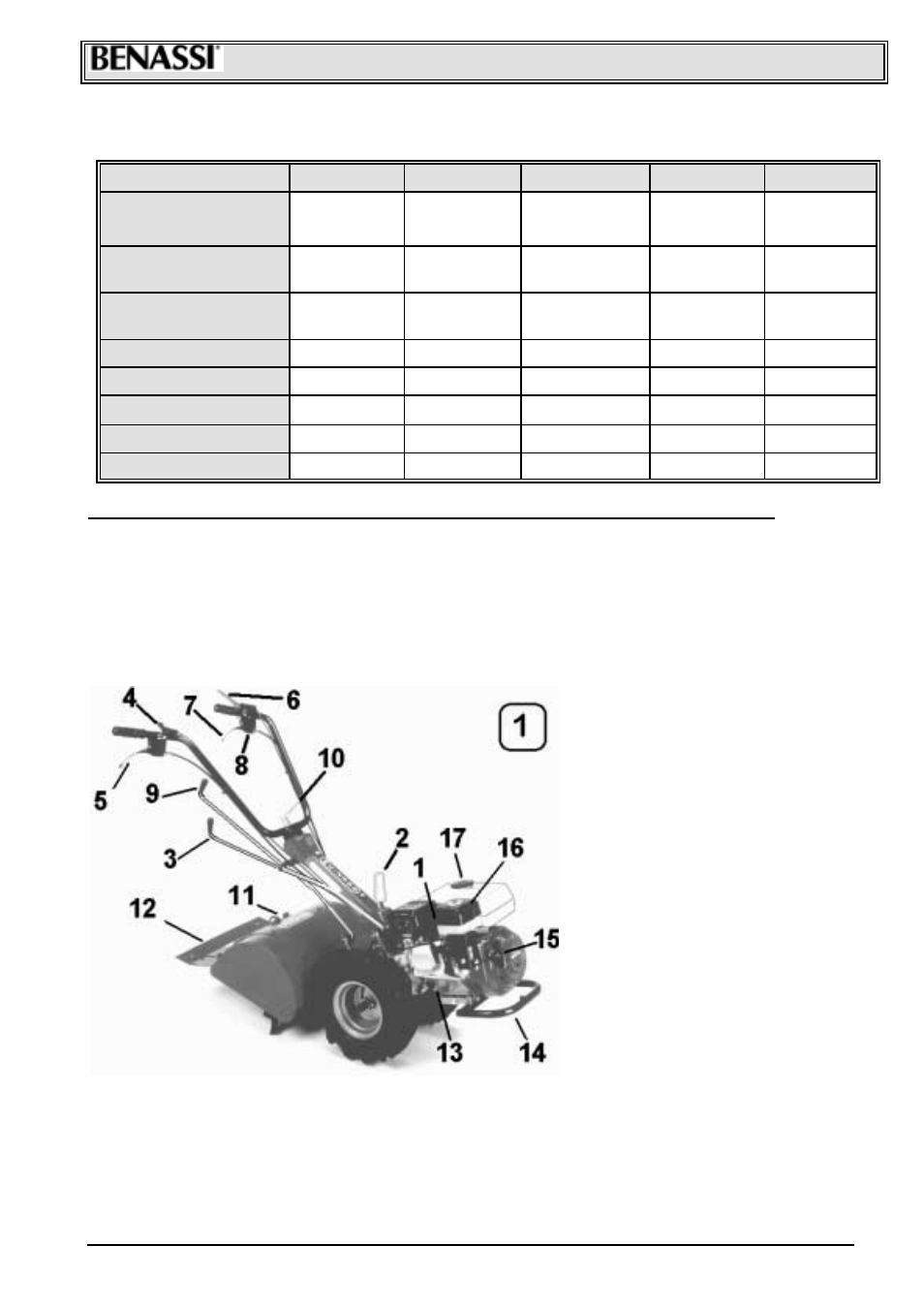

3- CHARACTERISTICS AND DRIVES CAPTIONS
1. Spark plug
2. Locking lever for handlebar mount
rotation
3. Gear lever
4. Accelerator hand lever
5. Wheel release lever
6. Engine stop lever
7. Clutch lever
8. Locking pushbutton
9. Power take-off engagement lever
(cutter)
10. Locking lever for handlebar
height adjustment
11. Adjustable spur
12. Adjustable hood panel for milling
cutter
The machine is an engine driven cultivator. By changing tools or by turning the handlebars you can
obtain different configurations for different uses as w ell.
With handlebars on the opposite side of the engine ( Engine driven cultivator version, Picture 2) you
can mount back tools (such as cutter, ploughs, listers etc.). This main version of the machine is used for
soil w orking. With handlebars turned on the engine ( Pow er mow er version, Picture 2a) you can mount
front tools ( central cutterbar, law n mow er, snow turbine, brush, leveller, etc.).
