• Attach the fitting for center to the lower center on the
rear panel of the plasma television using the two supplied
screws.
When using the table top stand:
NOTE:
Before attaching the speaker, please attach the PDK-TS28 series table top stand (or another Pioneer plasma television stand) to
the plasma television.
1. Attach the speaker mounting fittings to the rear of the plasma television.

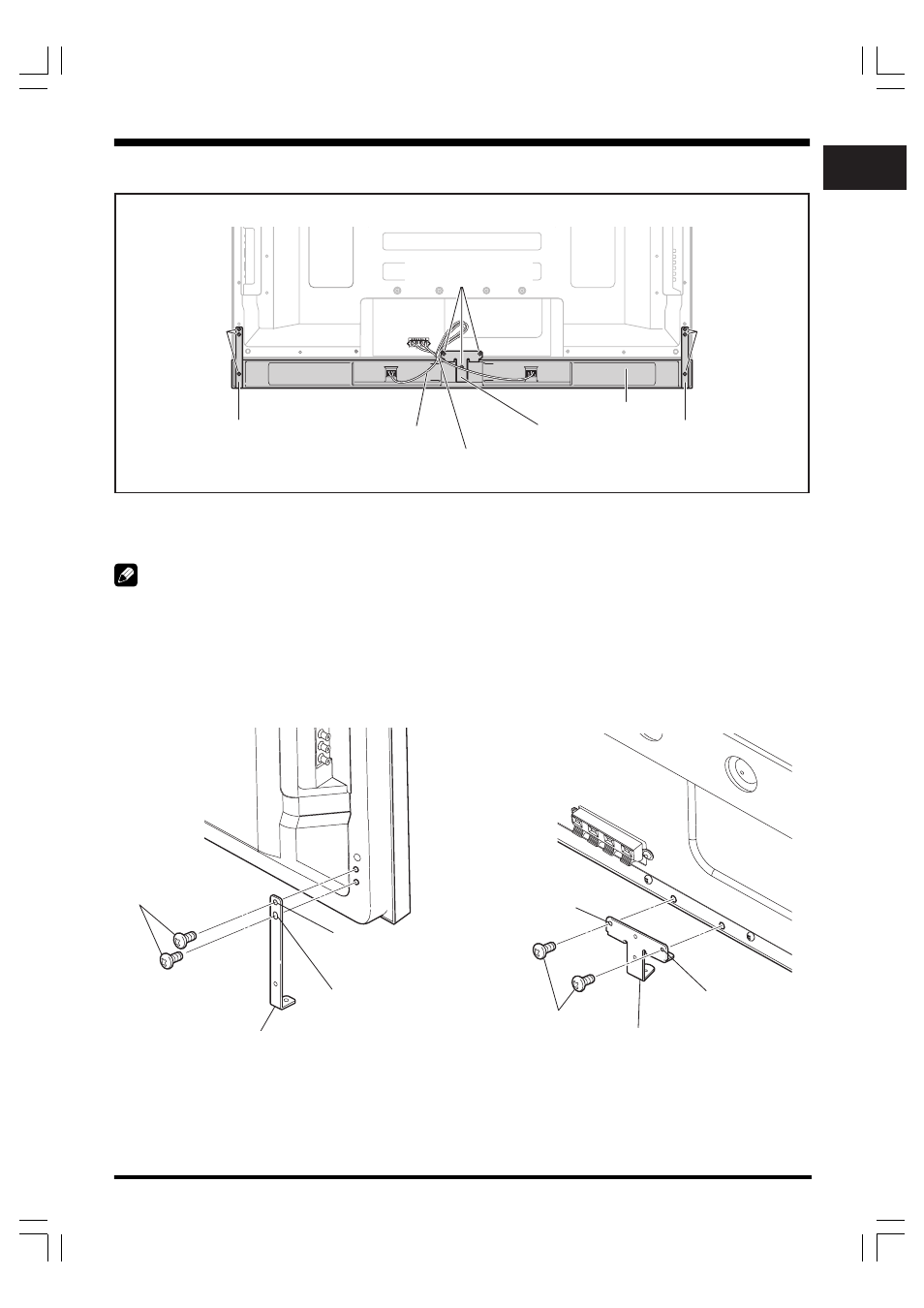

INSTALLATION ON THE PLASMA TELEVISION
Plasma television with the speaker installed
Speaker
mounting screw
(M5 x 10 mm)
Speaker mounting
fitting (side)
Speaker cable Speaker mounting
fitting (center)
Speaker
Speaker mounting
fitting (side)
Speaker
mounting screw
(M5 x 10 mm)
Speaker mounting
screw (M5 x 10 mm)
Bead Band
(Accessories of the plasma television)
2.Then tighten the
screw in the oval-
shaped screw
hole.
Speaker mounting
screw (M5 x 10 mm)
Speaker mounting
fitting for center
1. Tighten the screw in the
round-shaped hole first.
• Attach the fittings for right and left sides to the bottom
right and left on the rear panel of the plasma television
using the supplied screws.
Speaker mounting
screw (M5 x 10 mm)
1.Tighten the screw
in the upper screw
hole first.
2.Then, tighten the screw
in the screw hole right
under the upper hole.
Speaker mounting fitting for side
(It shows the attachment of the fitting
on the left side. It is attached on the right
side by the same procedure.)
