Pioneer RS-A99 - Manual (Page 12)

1
2
3
4
5
6
7

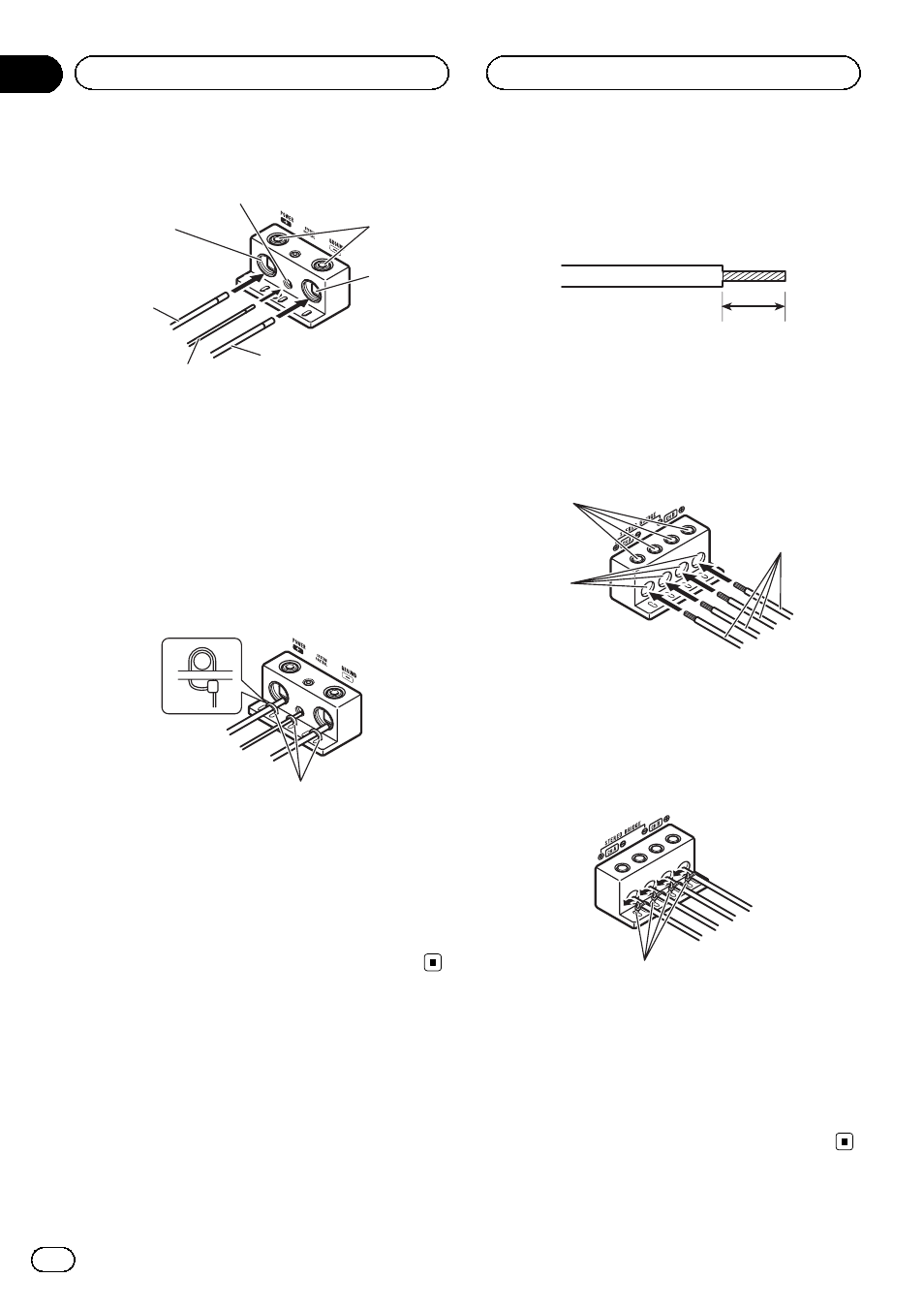

1 Power terminal
2 System remote control terminal
3 Terminal screws
4 GND terminal
5 Ground wire
6 System remote control wire
7 Battery wire
3 Put the wire ties in the slits and wrap
the wire ties around the wires.
1
1 Wire tie
# Make sure the wires are connected and at-
tached properly before wrapping the wire ties
around the wires.
# Wrap the wire tie around the wire insulation,
not the stripped wire.
# Cut off any excess portions of the wire ties.
Connecting the speaker
output terminals
Use a wire of 12 AWG to 18 AWG wire for the
speaker wire.
1 Expose the end of the speaker wires
using nippers or a cutter by about 14 mm
to 16 mm.
1
1 14 mm to 16 mm
2 Connect the speaker wires to the
speaker output terminals.
Fix the speaker wires securely with the term-
inal screws.
1
2
3
1 Terminal screws
2 Speaker wires
3 Speaker output terminals
3 Put the wire ties in the slits and wrap
the wire ties around the wires.
1
1 Wire tie
# Make sure the wires are connected and at-
tached properly before wrapping the wire ties
around the wires.
# Wrap the wire tie around the wire insulation,
not the stripped wire.
# Cut off any excess portions of the wire ties.
En
12
Section
03 Connecting the units
