5
English

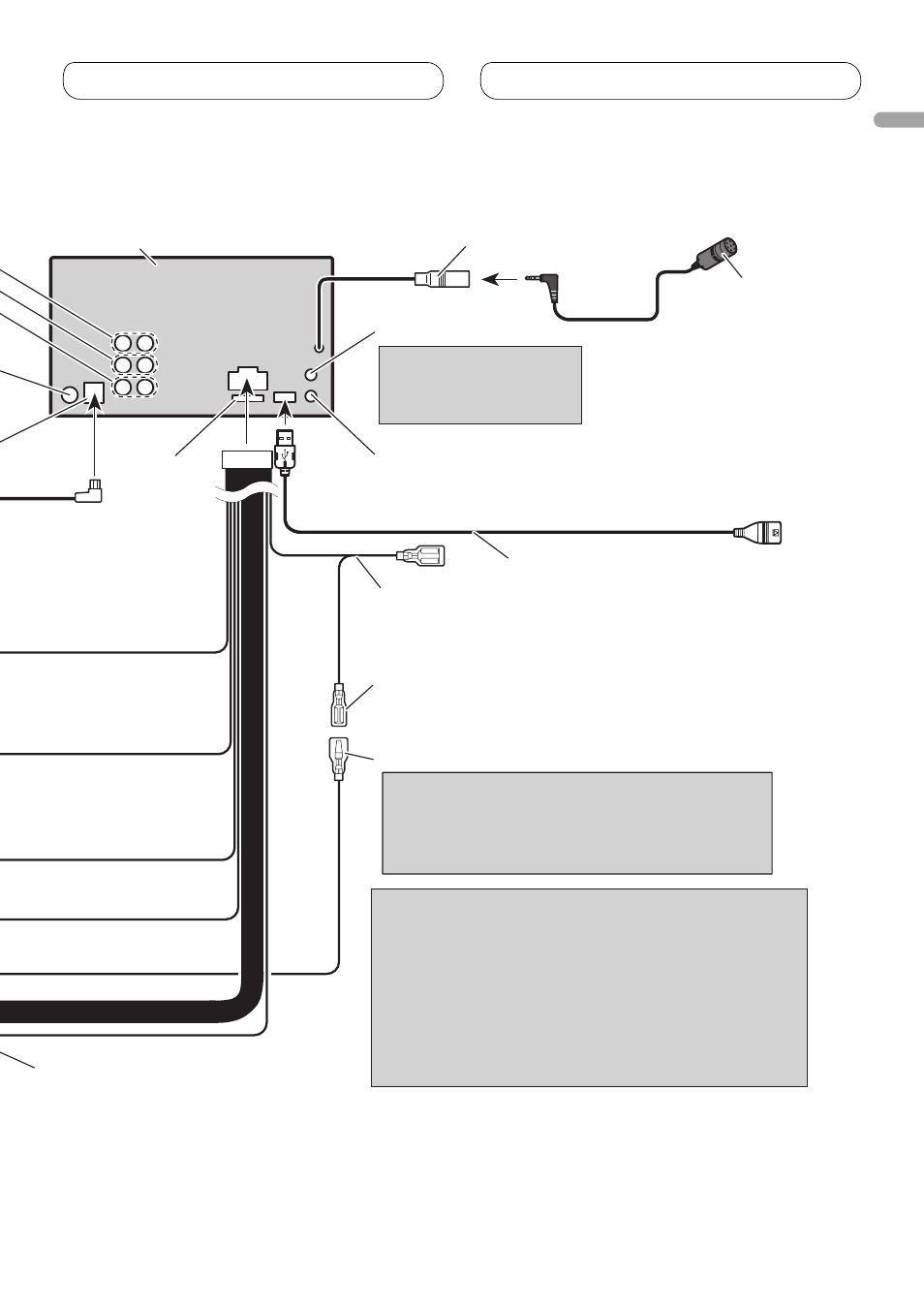

Connecting the units
1.5 m
Wired remote input
Hard-wired remote control adaptor can
be connected (sold separately).
Fuse (10 A)
AUX jack (3.5 ø)
USB cable
Connect to separately sold USB device.
This product
Speaker leads
White: Front
left
White/black: Front left
Gray: Front right
Gray/black: Front right
Green: Rear left or subwoofer
Green/black: Rear left or subwoofer
Violet: Rear right or subwoofer
Violet/black: Rear right or subwoofer
Blue/white
Connect to system control terminal of the
power amp (max. 300 mA 12 V DC).
Blue/white (7*)
Connect to auto-antenna relay control
terminal (max. 300 mA 12 V DC).
The pin position of the ISO connector will differ
depends on the type of vehicle. Connect 6* and
7* when Pin 5 is an antenna control type. In
another type of vehicle, never connect 6* and 7*.
Blue/white (6*)
Notes
• Change the initial setting of this unit (refer to the
operation manual). The subwoofer output of this
unit is monaural.
• When using a subwoofer of 70 W (2
Ω), be sure to
connect with Violet and Violet/black leads of this
unit. Do not connect anything with Green and
Green/black leads.
Use a stereo mini
plug cable to connect
with auxiliary device.
Microphone input
14 cm
Microphone
4 m
