Installing the navigation
system
Installation notes
! Do not install the navigation system in
places subject to high temperatures or hu-
midity, such as:
— Places close to a heater, vent or air con-
ditioner.
— Places exposed to direct sunlight, such
as on top of the dashboard.
— Places that may be exposed to rain,
such as close to the door or on the vehi-
cle
’s floor.
! Install this navigation system in an area
strong enough to bear its weight. Choose a
position where this navigation system can
be firmly installed, and install it securely. If
this navigation system is not securely in-
stalled, the current location of the vehicle
cannot be displayed correctly.

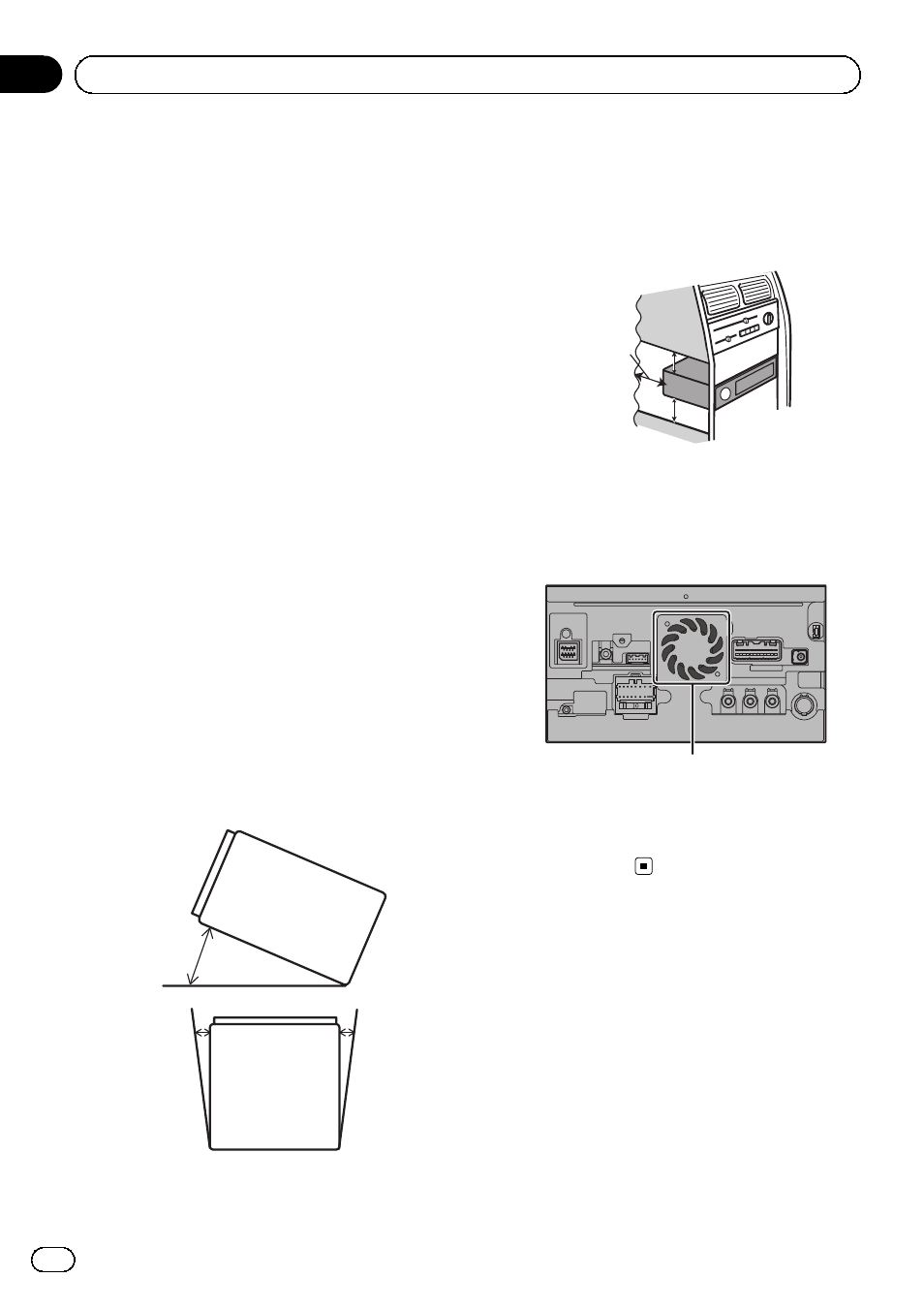

! Install the navigation unit horizontally on a
surface within 0 to 30 degrees tolerance
(within 5 degrees to the left or right). Impro-
per installation of the unit with the surface
tilted more than these tolerances increases
the potential for errors in the vehicle's loca-
tion display, and might otherwise cause re-
duced display performance.
30°
5° 5°
! When installing, to ensure proper heat dis-
persal when using this unit, make sure you
leave ample space behind the rear panel
and wrap any loose cables so they are not
blocking the vents.
5cm cm
Leave ample
space
5 cm
5 cm
! The cords must not cover the area shown
in the figure below. This is necessary to
allow the amps and navigation mechanism
to dissipate heat.
Do not cover this area.
! The semiconductor laser will be damaged
if it overheats, so don
’t install the naviga-
tion unit anywhere hot
— for instance, near
a heater outlet.
