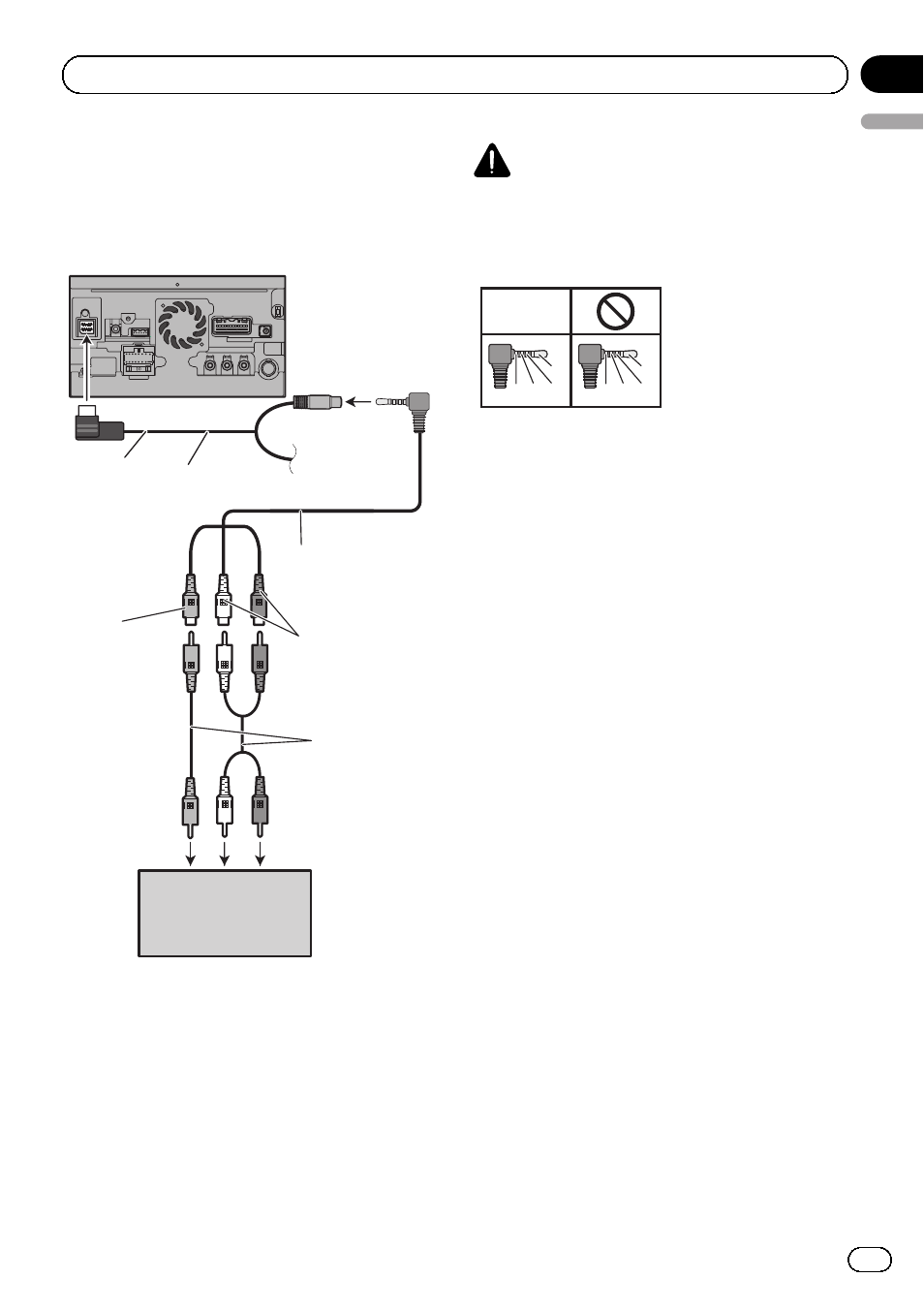

When connecting the
external video component
Using an AV input (AV1)
The navigation unit
RCA cables
(sold separately)
Yellow
Red, white
External video
component
(sold separately)
To video output To audio outputs
Mini-jack AV cable
(CD-RM10)
(sold separately)
USB and
mini-jack connector
2 m
! You must set “AV1 Input” in “AV System
Settings
” to “Video” when connecting the
external video component. (For details,
refer to Operation Manual.)
CAUTION
Be sure to use a mini-jack AV cable (CD-RM10)
(sold separately) for wiring. If you use other
cables, the wiring position might differ resulting
in disturbed images and sounds.
OK
G V R
L
G R V
L
L : Left audio (White)
R : Right audio (Red)
V : Video (Yellow)
G : Earth
Engb
13
English
Section
02 Connecting the system
