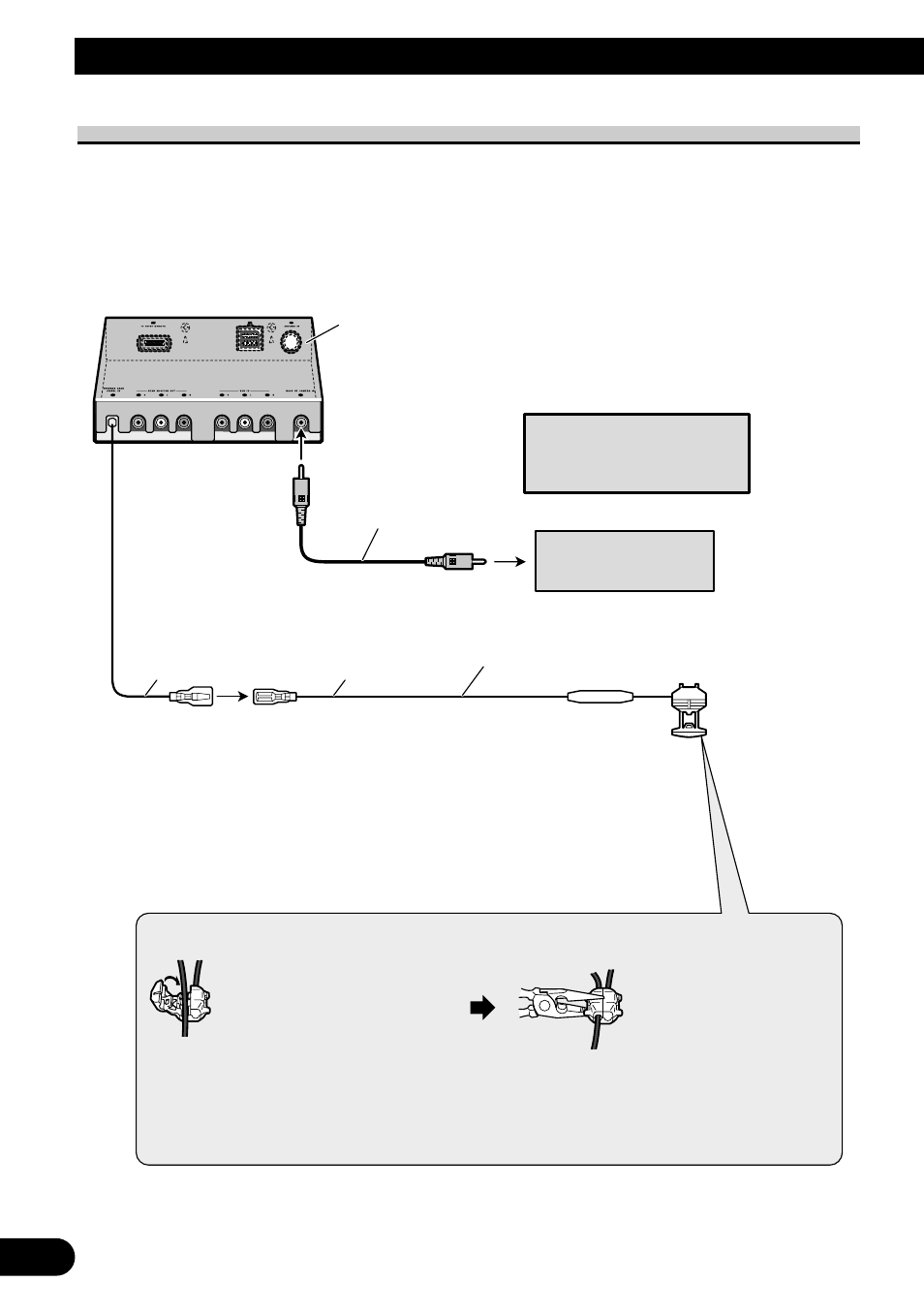

When connecting with a back-up camera
When using this product with a back-up camera, automatic switching to video from a
back-up camera when the gear shift is moved to REVERSE (R) position is possible.
Fig. 4
7
Connecting the Units
Connection method
Clamp the lead. 1. 2. Clamp firmly with
needle-nosed
pliers.
We recommend that you use
a camera which outputs
mirror reversed images.
Hide-away unit
Fuse resistor
8 m
Extension lead (supplied)
Back up camera
Violet/white
Of the two lead wires connected to the back
lamp, connect the one in which the voltage
changes when the gear shift is in the REVERSE
(R) position. This connection enables the unit to
sense whether the car is moving forwards or
backwards.
RCA cable
(sold separately)
Note:
• It is necessary to set to B-CAMERA in SETUP when
connecting the back-up camera.
10 cm
To video output
