Connecting the Units

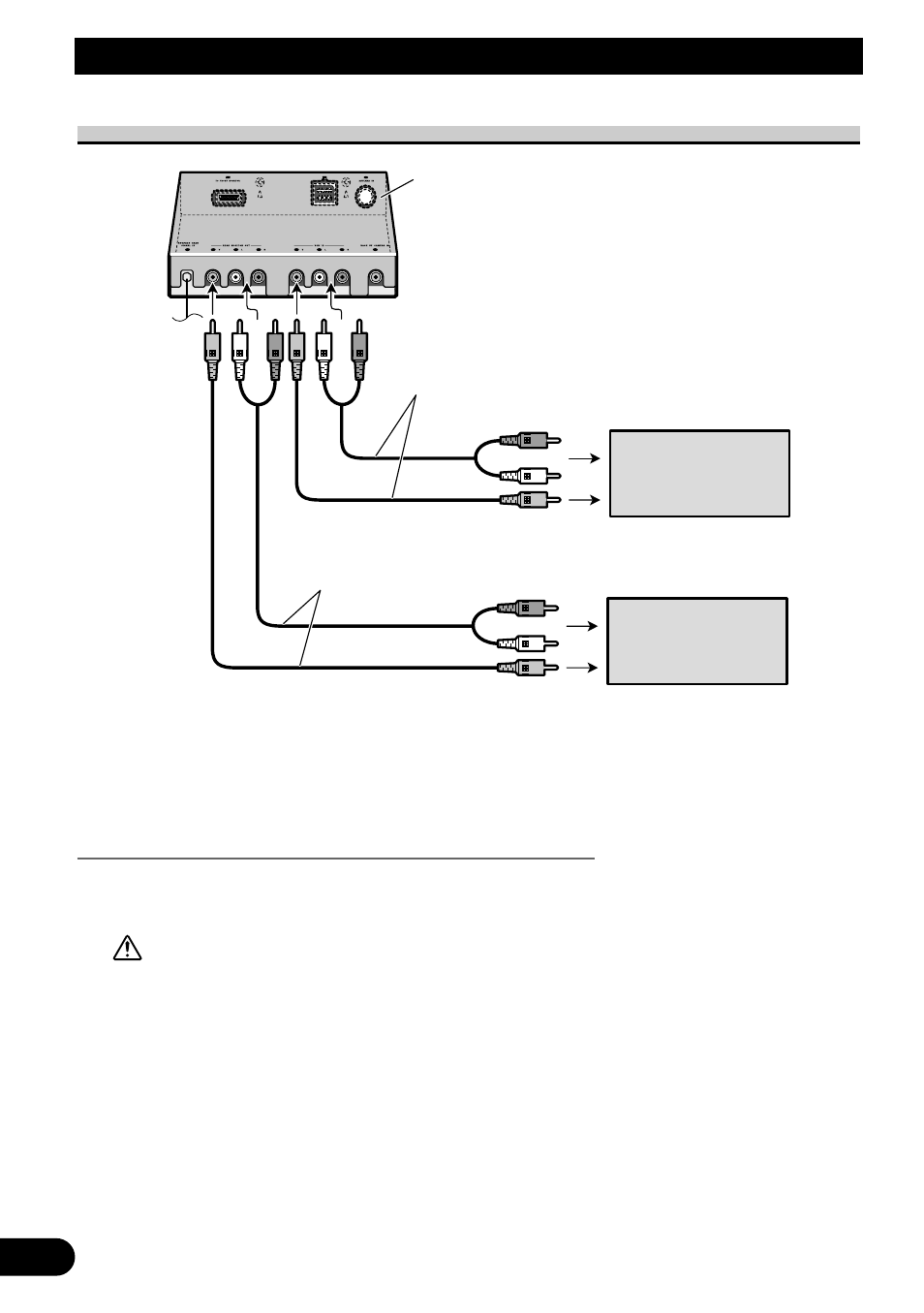

When connecting the external video component and the display
Fig. 6
• It is necessary to set to AV INPUT in SET UP when connecting the external video
component.
When using a display connected to rear video output
This product’s rear video output is for connection of a display to enable passengers in the
rear seats to watch the DVD or Video CD.
WARNING:
• NEVER install the display in a location that enables the Driver to watch the DVD or Video CD
while Driving.
• NEVER connect rear audio output (REAR MONITOR OUT) to sold separately power amp.
Hide-away unit
External video
component
(sold separately)
RCA cables
(sold separately)
Display with
RCA input jacks
RCA cables
(sold separately)
To video input
To audio inputs
To video output
To audio outputs
