Connecting
the
CDJ-2000/CDJ-900
and
DJM-2000nexus/DJM-2000

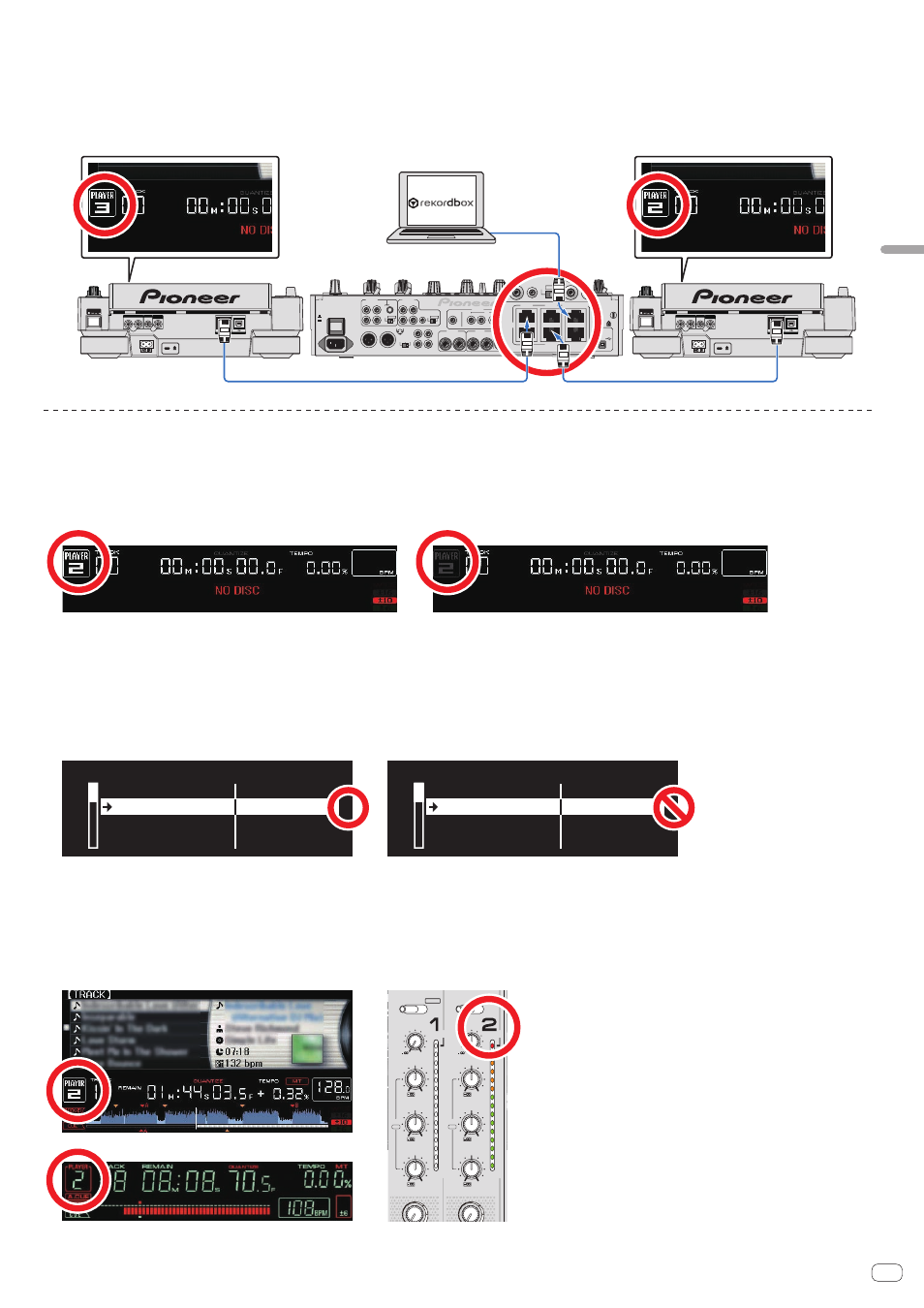

Connecting the cables (LAN cable and audio cables)
Connect the LAN cable and audio cables.
Connect in such a way that the channel number of the DJ mixer’s LAN cable insertion port and the channel number of the terminals to which the audio cables are connected
are the same number.
Connect the computer to [COMPUTER1] or [COMPUTER2].
Ex.: When player 2 is connected to [CH2], player 3 is connected to [CH3] and the computer (Mac/Windows) is connected to [COMPUTER1]
CH 2 CH 3 CH 4 CH 1 SIGNAL GND
CD
CD L
R
L
R
PHONO
MIDI OUT USB
CD LINE
CONTROL OUT IN
(TRS) R L
R L
R
L
R L(MONO) R L(MONO)
DIGITAL
BOOTH SEND RETURN
COMPUTER 1
LINK
CH 3 CH 1
CH 4 CH 2
CH 2 CH 3 CH 4 CH 1
DIGITAL
SIGNAL GND
CD
1GND
-6dB -3dB 0dB
2HOT
3COLD
CD L
R
PHONO
POWER
AC IN
OFF ON
MASTER1
MASTER ATT.
MASTER2 REC OUT
DIGITAL CD DIGITAL
L
R
CD LINE
CONTROL CD DIGITAL
DJM-2000
R R
CONTROL
O)
COMPUTER 1
LINK
CH 3 CH 1
CH 4 CH 2
CD DIGITAL
AUDIO OUT R L CONTROL
LINK USB
DIGITAL OUT
POWER
AUDIO OUT R L CONTROL
LINK USB
DIGITAL OUT
POWER
CDJ-2000 CDJ-2000
Checking the connections
Checking the DJ player’s link established by LAN connection (for the CDJ-2000)
Check that the player number indicated on the DJ player’s screen is lit in white.
LINK NG LINK OK
! If the player number indicated on the DJ player’s screen is lit in gray, the link is not established. If there is a DJ player for which the player number is lit in gray, redo the
connection procedure.
! Set the second DJ player on in the same way.
Checking the DJ player’s link established by LAN connection (for the CDJ-900)
Press the DJ player’s [MENU/UTILITY] button for over 1 second to open the UTILITY screen, then check that [CONNECTED] is
displayed for [LINK STATUS].
UTILITY
2
NOT CONNECTED
ON
–
PLAYER No.
LINK STATUS
AUTO STANDBY
MIDI CHANNEL
LINK NG
UTILITY
2
CONNECTED
ON
–
PLAYER No.
LINK STATUS
AUTO STANDBY
MIDI CHANNEL
LINK OK
! If [NOT CONNECTED] is displayed, the link is not established. If there is a DJ player for which [NOT CONNECTED] is displayed, redo the connection procedure.
! Set the second DJ player on in the same way.
Checking that the LAN cable and audio cables are synchronized
Load a music file, then operate the DJ players that are connected by link to play and pause the track repeatedly.
Check that the player number displayed on the DJ player’s screen is the same as the channel number that lights on the DJ mixer’s channel level indicator.
If the numbers are different, fix the connections.
CD
/DIGITAL PHONO USB 1/2
TRIM
FILTER
OVER
10
7
4
2
1
0
- 1
- 2
- 3
- 5
- 7
- 10
- 15
- 24
dB
ISO
EQ/
LOW
MID
HI
+9
+6 -26/
+6 -26/
+6 -26/
FILTER
CD
/DIGITAL LINE USB 3/4
OVER
10
7
4
2
1
0
- 1
- 2
- 3
- 5
- 7
- 10
- 15
- 24
dB
ISO
EQ/
TRIM
+9
HI
+6 -26/
MID
+6 -26/
LOW
+6 -26/
DJM-2000 CDJ-900
CDJ-2000
! Set the second DJ player on in the same way.
