Connecting the Units

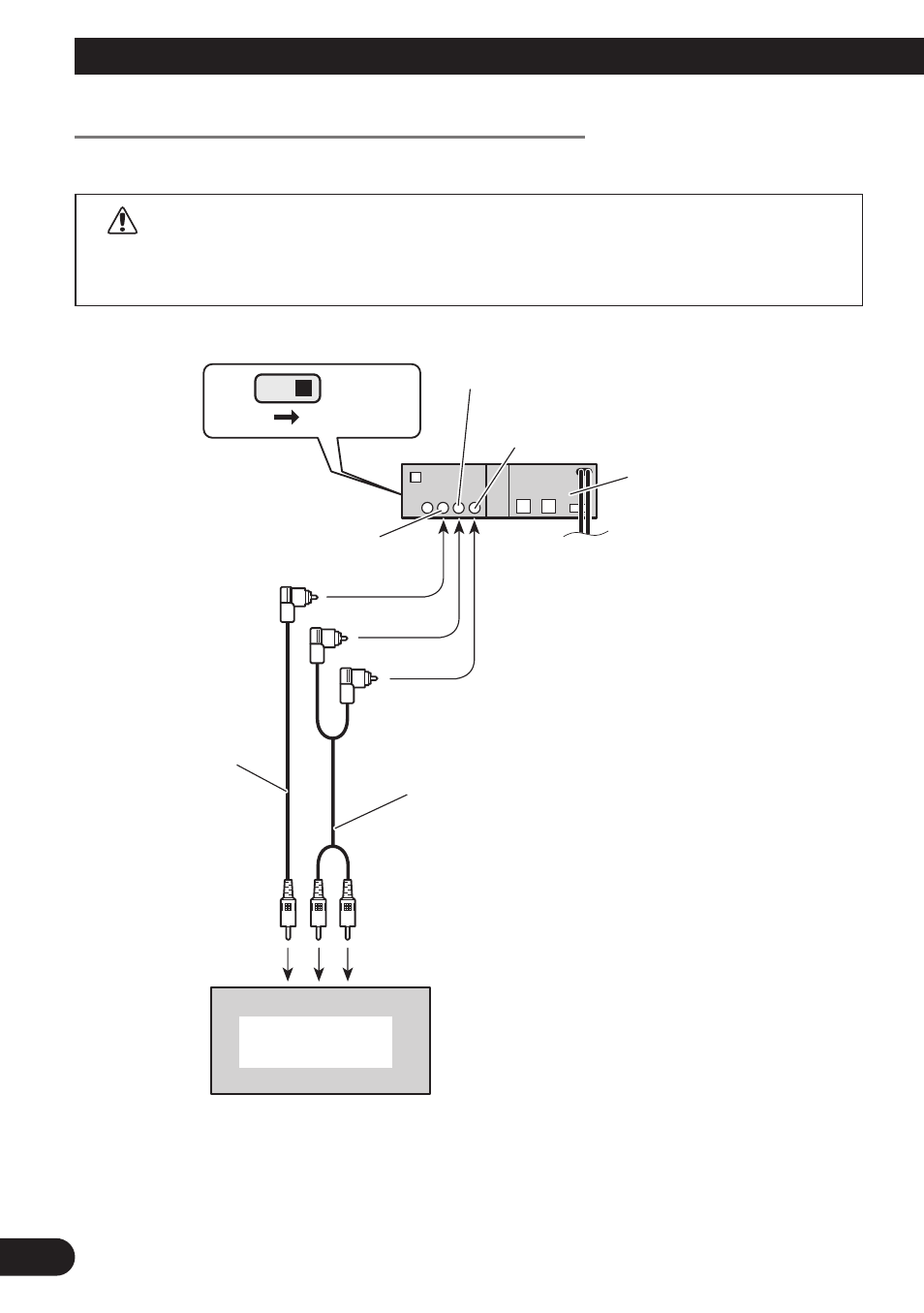

Fig. 5
When Using a Display Connected Rear Video Output
This product’s rear video output is for connection of a display to enable passengers in the
rear seats to watch the DVD or Video CD.
WARNING
• NEVER install the display in a location that enables the Driver to watch the DVD or
Video CD while Driving.
STAND ALONE IP-BUS
This product
Display with RCA
input jacks
RCA cable (supplied)
To audio inputs To video input
RCA cable (sold separately)
Yellow (rear
video output)
White (audio output (Left))
Red (audio output (Right))
