STAND ALONE IP-BUS
This product
Remote sensor
(supplied)
6 m
Display with RCA
input jacks
RCA cable (supplied)
To audio inputs To video input
RCA cable (sold separately)
Yellow (front
video output)
White (audio output (Left))
Red (audio output (Right))
This product features a built-in
remote sensor. If it is installed in a
location where reception of the
remote control signal is not possible,
use the supplied remote sensor.
When Connecting the Display with RCA Input Jacks

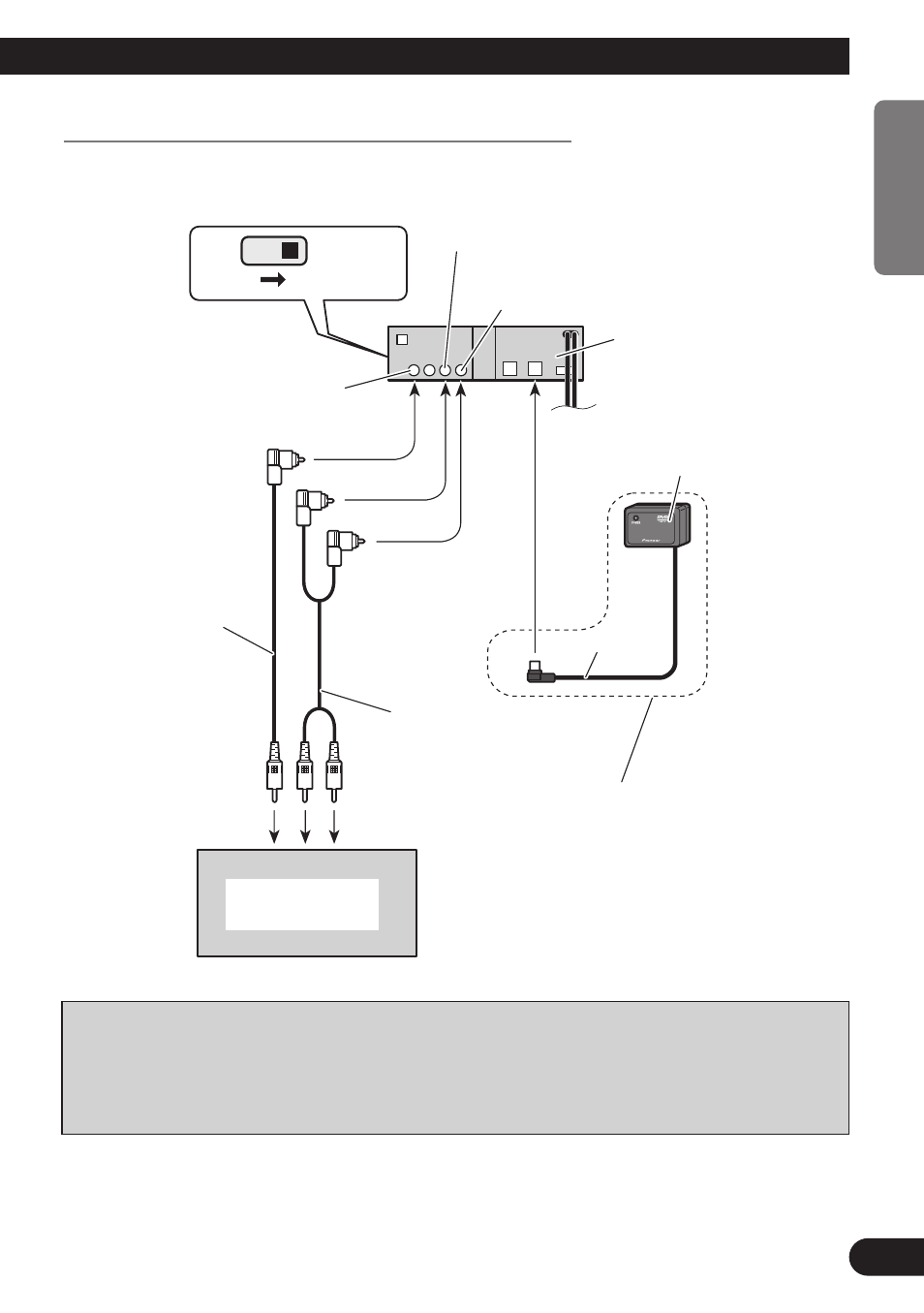

Fig. 4
Connecting a rear display
Instead of video output for viewing on a front display, you can connect for video output
enabling viewing on a rear display (for passengers in the rear of the car). If you decide to
use a rear display, be sure to follow the warnings on page 8.
