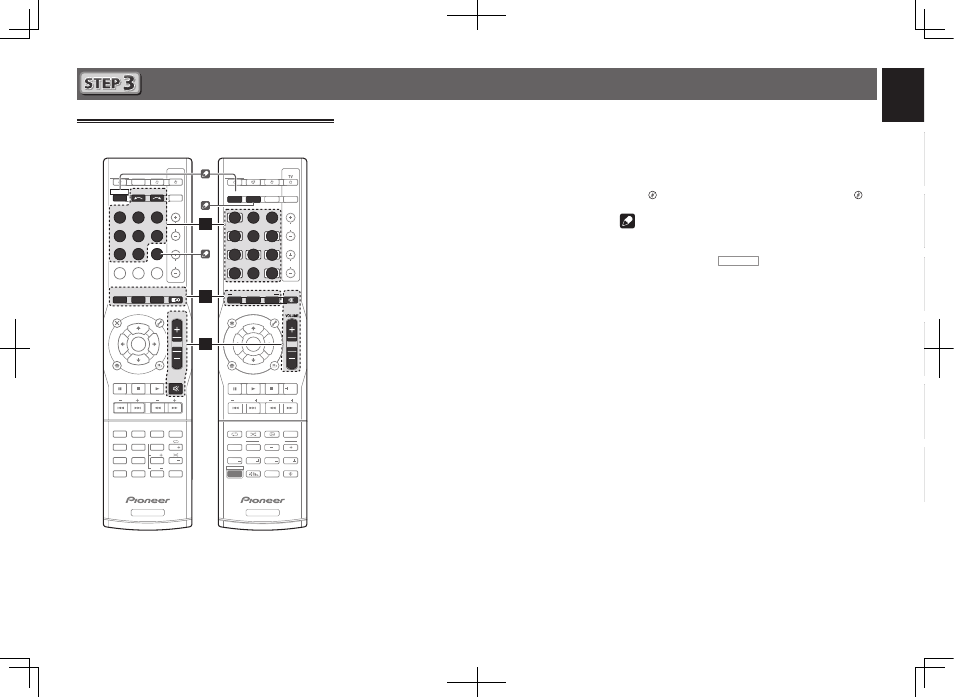

Basic playback
Multichannel playback
BD DVD
INPUT SELECT
SOURCE SLEEP TV CONTROL
CD
INPUT
1
4
7
MIDNIGHT
CH
RECEIVER
TUNER iPod/USB SAT/CBL
GAME TV SIGNAL SEL
Acous.EQ PHASE S.RETRIEVER
ENTER
ADV SURR
AUTO/
DIRECT
VOL
+ 10
2
5
8
SPEAKERS
DIMMER
LEV
LEV
SB CH
DISP
CLR
3
6
9
0 ENTER
CH
CH
CH SELECT
MUTE
RETURN
AUDIO
PARAMETER
TOOLS VOLUME
BAND
MENU
HOME
MENU
iPod CTRL PTY
TRE BASS
TOP MENU
RECEIVER
TUNE
TUNE
PR
ES
ET PR
ES
ET
RECEIVER
ALC/
STANDARD STEREO
SLEEP
MUTE
CTRL
BD
AUTO SURR ADV
DVD
USB
TUNER
ADPT
iPod
TUN
GAME
CBL ROKU
SAT
CD
TV
CH LEVEL
HDMI
MHL
BT
NET
S.SEL ECO
STANDBY/ON
ENTER
CLR
SB CH CH SEL
SP-A/B
Fav
RETURN
BAND
POP UP SUB TITLE DISP
DIMMER STATUS
AUDIO
PRESET TUNE
PTY
AUDIO P. TOP
MENU
HOME
MENU
RECEIVER
LISTENING MODE
RECEIVER SIGNAL SEL
SOURCE
TOOLS
MENU
SHIFT
BASS BASS TRE TRE
INPUT
CH
VOL
2
3
5
1
Switch on the playback component.
E.g. Turn the Blu-ray Disc player connected to the
HDMI BD IN terminal on.
2
Switch the input of the receiver.
E.g. Press BD to select the BD input.
3
Press AUTO (VSX-824/VSX-529),
AUTO/DIRECT (VSX-424/VSX-329) to select
’AUTO SURROUND’.
Also press SURR (VSX-824/VSX-529), ALC/STANDARD
(VSX-424/VSX-329) or ADV (VSX-824/VSX-529), ADV SURR
(VSX-424/VSX-329) for multichannel playback. Select your
preferred listening mode.
4
Start the playback component’s playback.
E.g. Start playback of the Blu-ray Disc player.
5
Use VOLUME +/– to adjust the volume level.
• If no sound comes out of the center speaker or surround
speaker, change the listening mode by pressing SURR
(VSX-824/VSX-529), ALC/STANDARD (VSX-424/VSX-329) or
ADV (VSX-824/VSX-529), ADV SURR (VSX-424/VSX-329).
E.g. Repeatedly press ADV (VSX-824/VSX-529), ADV SURR
(VSX-424/VSX-329) to select [EXT.STEREO].
• If there is no sound from the subwoofer
Cause:
The front speaker is set to LARGE.
(During 2ch audio input, the low frequency sound is
output not from the subwoofer but the front speaker)
How to fix:
If you want the sound to come from the subwoofer, please
change the speaker setup.
(There are 2 following methods)
Method 1: Change the front speaker to SMALL.
The low frequency sound will be output not from the front
speaker but the subwoofer.
We recommend not changing this if the low frequency
function of the front speaker is high.
Method 2: Change the subwoofer to PLUS.
The low frequency sound will output from both the front
speaker and the subwoofer.
This may lead to excessive low frequency sound.
If that happens, we suggest you do not change the setting
or change to Method 1.
l “Speaker Setting” on page 33 (VSX-424/VSX-329),
“Speaker Setting” on page 52 (VSX-824/VSX-529).
Note
• If not using the remote control to operate:
– When operating the receiver, press RECEIVER CTRL
(VSX-824/VSX-529), RECEIVER (VSX-424/VSX-329) and then
operate.
– When operating devices such as NETWORK (VSX-
824/VSX-529 only), TUNER, and iPod, press the various
function button (NET (VSX-824/VSX-529 only), TUNER,
iPod USB (VSX-824/VSX-529), iPod/USB (VSX-424/VSX-
329), etc.) before operating.
• In order to listen to the audio from the source component
that is connected to this receiver using a coaxial or an
optical cable, choose the C1 (coaxial) or O1 (optical) input.
(Press SIGNAL SEL.)
VSX-424/VSX-329 VSX-824/VSX-529
