! For details on how to connect an iPod or
USB storage device to this unit, refer to
When connecting with optional CD-IU201V
cable on page 48.
! For details on how to connect a smartphone
with the MirrorLink function to this unit, refer
to Optional Smartphone link adaptor (CD-
ML100) connection on page 48.

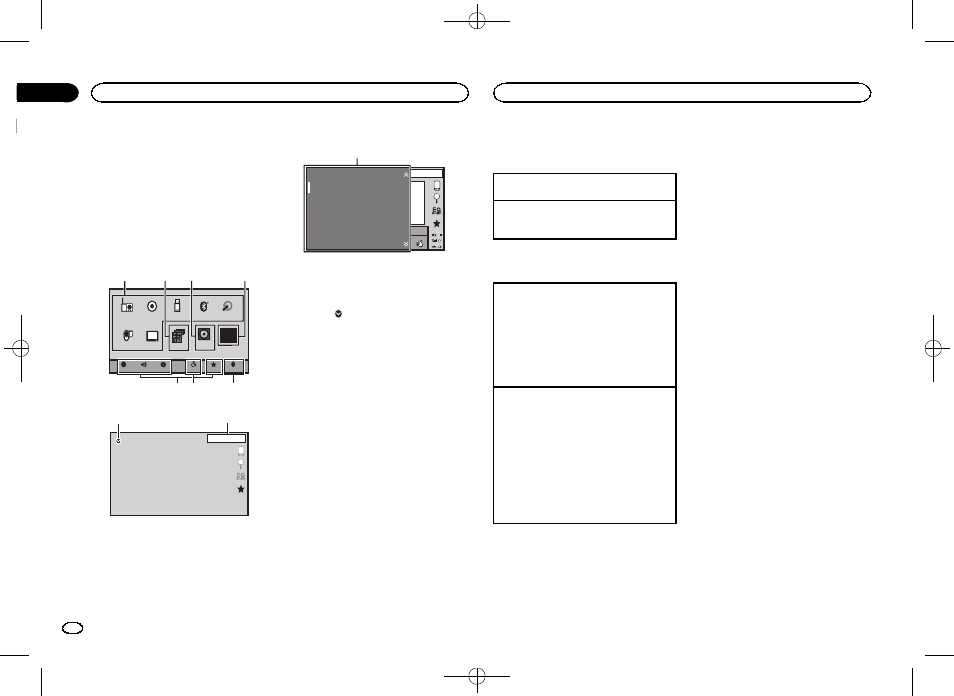

Home display
Home display
Disc USB/iPod Bluetooth Audio
AV
Bluetooth Favorites Theme System
Settings
Audio Video
Radio
RearView ON Apps
OFF
AUX
TV
5 6 7
1 2 3 4
Source off display
OFF 1 JAN
AM
12:12
8 9
Source on display
JAN
AM
DB
12:22 Radio
Disc
iPod
Bluetooth Audio
AUX
AV
S.Rtrv
App App App
1
1 Source icon
Selecting a favorite source.
When the source icon is not displayed, it can
be displayed by pressing the home key or
touching
.
2 Apps/MirrorLink key
Switching to AppRadio Mode/MirrorLink
Mode.
3 Rear view key
Displaying the rear view image.
For details refer to Using the rear view on
page 8.
4 Source off key
Turning the source off.
5 Bluetooth key
Displaying the Bluetooth connection menu.
6 Theme key
Displaying the Theme menu.
7 Menu icon
Displaying the menu.
8 Source key
Displaying the source menu.
9 Clock key
Switching to clock adjustment display.
Turning the source ON/OFF
(Function of AVH-X5650BT/AVH-X4650DVD)
Turning the source on using the buttons
1 Press SRC/OFF to turn the source on.
Turning the source off using the buttons
1 Press and hold SRC/OFF until the source turns
off.
Selecting a source
Available source modes
! Radio – Radio tuner
! Disc – Built-in DVD and CD player
! USB, iPod, or USB MTP – USB/iPod/MTP
! Bluetooth Audio – Built-in Bluetooth audio
(Function of AVH-X5650BT/AVH-X2650BT)
! AUX – AUX
! AV – AV input
! TV – Television
Selecting a source
! Using SRC/OFF
(Function of AVH-X5650BT/AVH-X4650DVD)
1 Press SRC/OFF.
! Using the touch panel keys on the home dis-
play
1 Touch the source icon and then touch the
desired source name.
! When the source icon is not displayed, it
can be displayed by touching the screen.
! While operating the menu, you cannot se-
lect a source by touching the source icon.
Notes
! The USB/iPod icon will change as follows:
— USB/iPod is displayed when no device is con-
nected.
— USB is displayed when a USB storage device
is connected to USB input.
— iPod is displayed when an iPod is connected
to USB input.
— USB MTP is displayed when an MTP-compati-
ble Android device (running Android OS 4.0
or higher) is connected by MTP connection
using a USB cable.
! TV is displayed when a TV tuner is connected
via the RGB connection.
Adjusting the volume
% Press +/– (VOLUME/VOL) to adjust the
volume.
