Pioneer PDK-TS24 - Manual (Page 3)

3
En
English

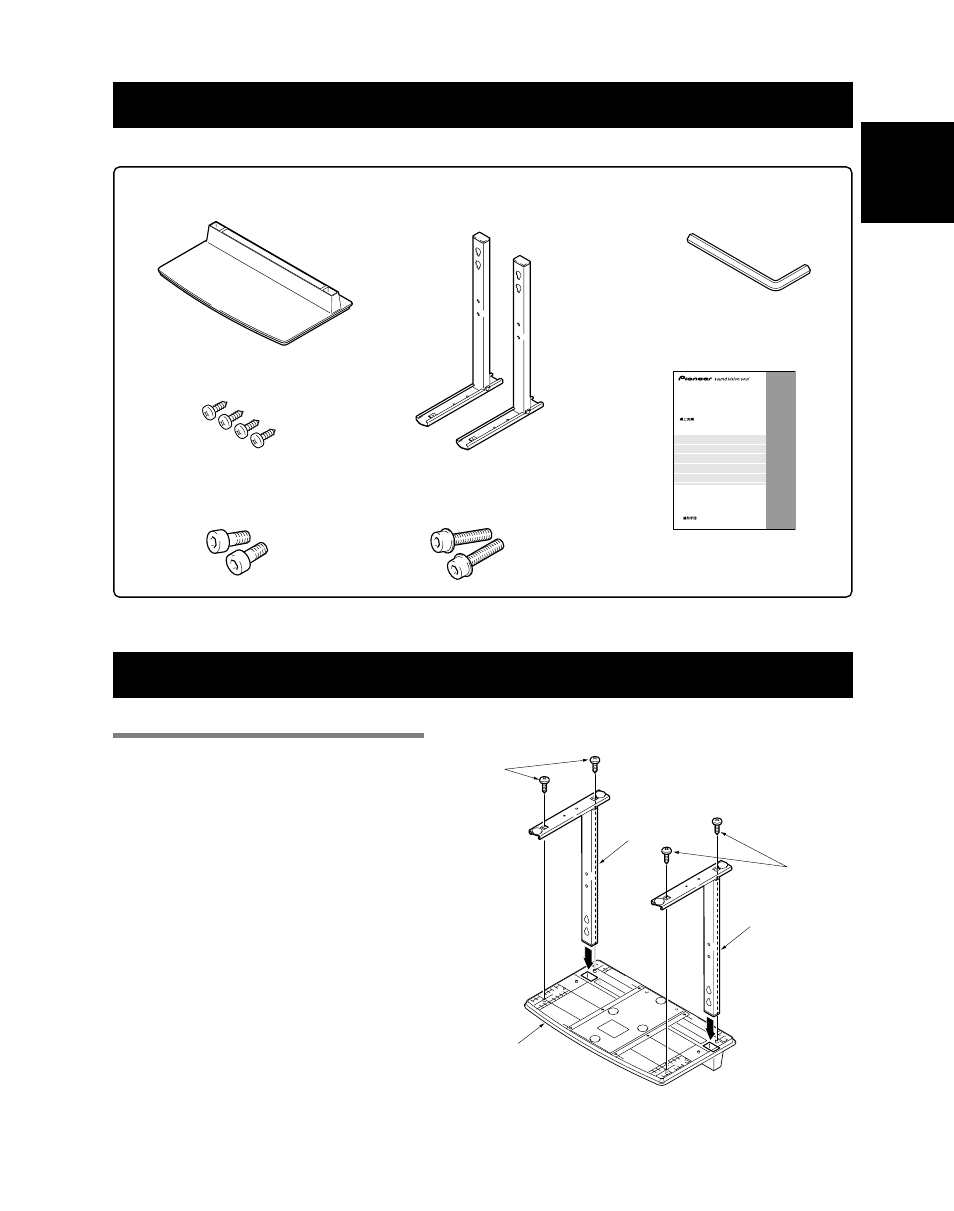

Checking the Standard Accessories
Check to make sure that you have all the standard accessories before assembly and installation.
• Base cover x 1 • Stand pipes
(left and right, interchangeable) x 2
• Hexagonal wrench x 1
(Opposite side 6 mm for M8 use)
• Screws 1 (4 x 10 mm) x 4
• Installation bolts 2
(M8 x 20 mm: black) x 2
• Installation bolts 3
(M8 x 40 mm: black) x 2
• Operating instructions
(this document) x 1
PDK-TS24
Operating instructions
Mode d’emploi
Bedienungsanleitung
Istruzioni per l’uso
Gebruiksaanwijzing
Manual de instrucciones
Table top stand
Pied de table
Tischständer
Supporto di tavolo
Tafelbladstaander
Soporte de mesa
Assembling the Stand
1
Turn the base cover over so the
underside is facing up.
2
Insert the stand pipes into the base
cover.
3
Tighten the screws to stabilize the
stand pipes.
Base cover
Screws 1
(4 x 10 mm)
Stand pipe
Screws 1
(4 x 10 mm)
Stand pipe
Assembly Procedure
