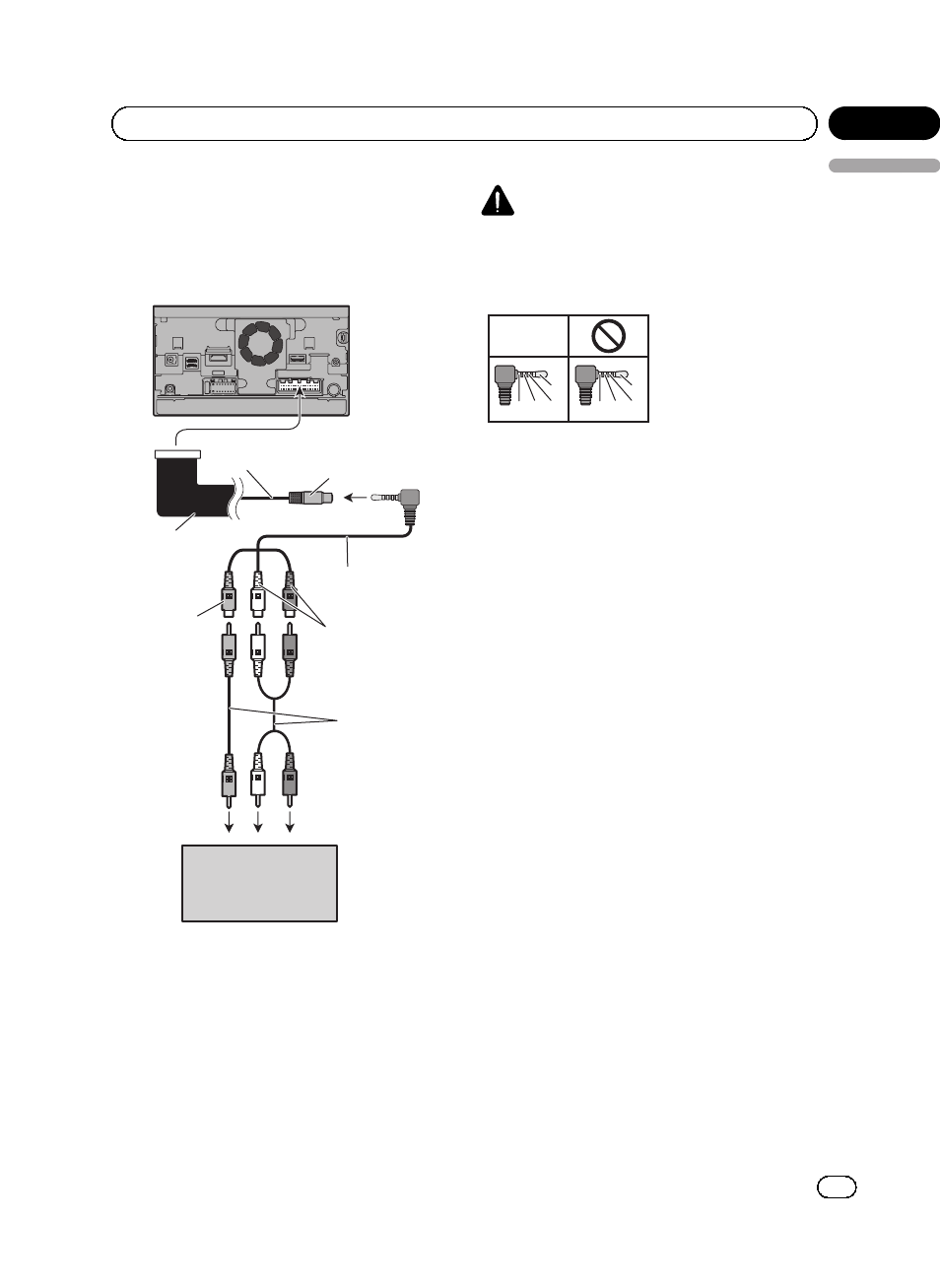

When connecting the
external video component
Using an AV input (AV1)
To audio outputs
The navigation unit
15 cm
RCA connector
Mini-jack AV cable
(CD-RM10)
(sold separately)
Yellow
Red, white
RCA cables
(sold separately)
To video output
External video
component
(sold separately)
AUX input
! This mode is available when the setting of
video input 1 (AV1) is set to
“On”. (For de-
tails, refer to Operation Manual.)
CAUTION
Be sure to use a mini-jack AV cable (CD-RM10)
(sold separately) for wiring. If you use other
cables, the wiring position might differ resulting
in disturbed images and sounds.
OK
G V R
L
G R V
L
L : Left audio (White)
R : Right audio (Red)
V : Video (Yellow)
G : Earth
