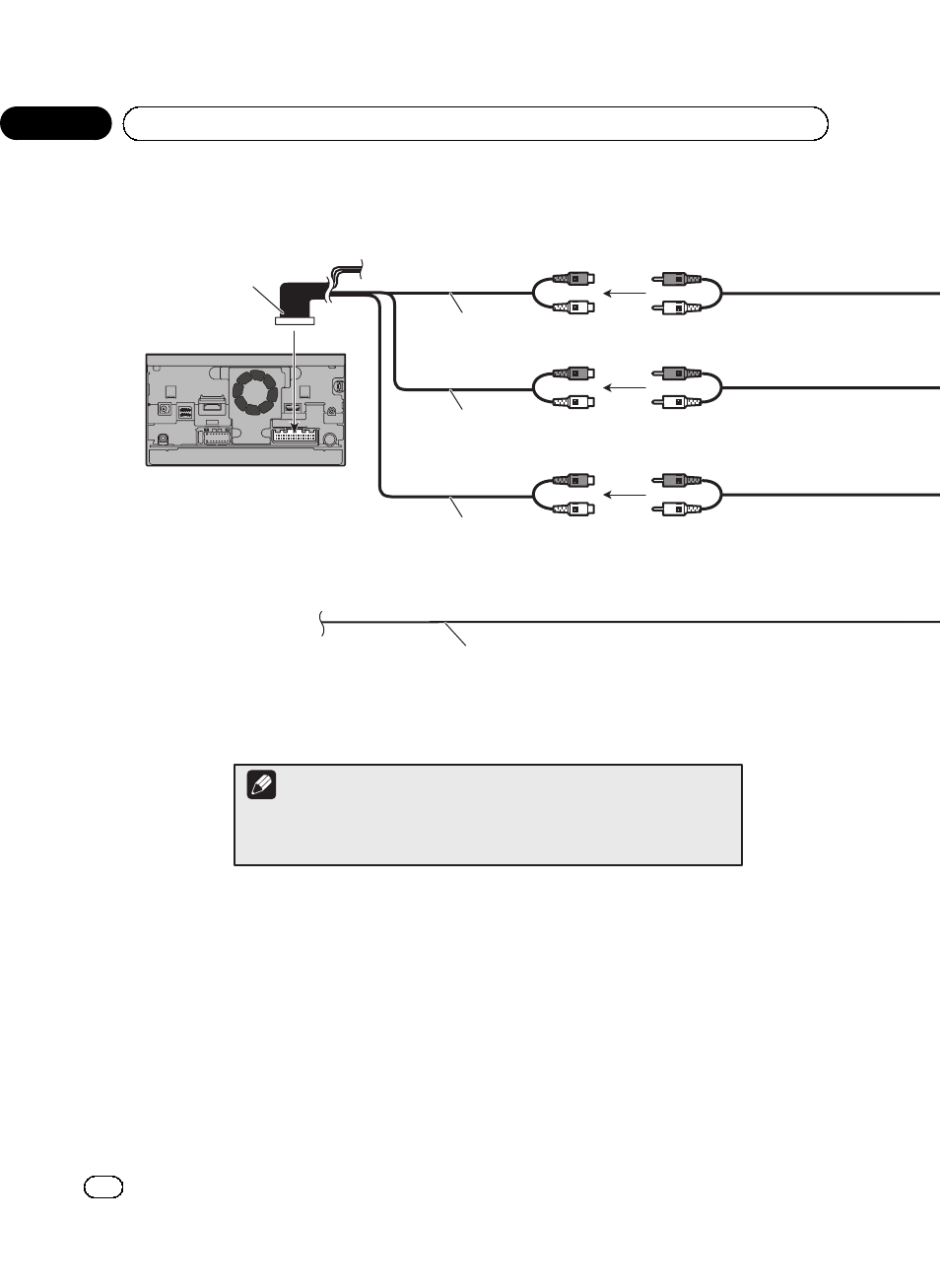

When connecting to separately sold power amp

Blue/white

RCA connector

The navigation unit

25 cm

30 cm

Rear outputs
(REAR OUTPUT)

Front outputs
(FRONT OUTPUT)

To system control terminal of the power amp
(max. 300 mA 12 V DC).
For connection, refer to the wiring and installation
manual separately supplied.

Subwoofer outputs
(SUB WOOFER OUTPUT)

Notes

· You can change the RCA output of the subwoofer depending on your subwoofer

system. (Refer to Operation Manual.)

· The subwoofer output of this navigation system is monaural.

Engb

Section

Connecting the system
