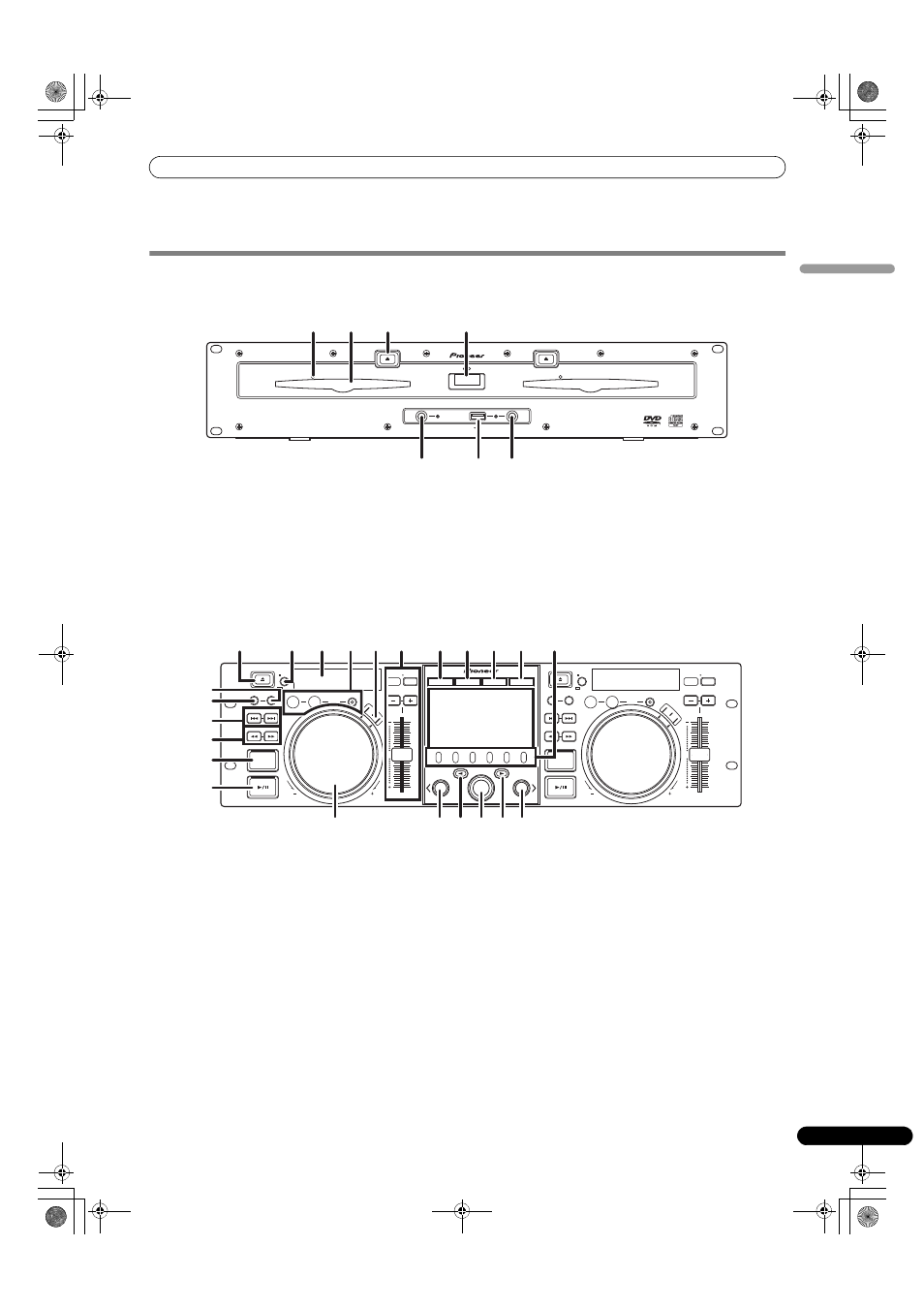

PARTS AND THEIR FUNCTIONS
FRONT PANEL
Drive Unit
1
Forced eject hole (P. 23)
2
Disc loading slot (P. 23)
3
EJECT (
) button
To eject a disc from the disc loading slot, press this button
during the cue standby or pause mode, or when no tracks are
being loaded from the disc.
4
POWER switch and indicator
Turns unit power ON/OFF.
5
USB1 STOP button and indicator
Press when removing a USB storage device from USB1 port.
6
USB2 STOP button and indicator
Press when removing a USB storage device from USB2 port.
7
USB2 port (type A)
Use to connect a USB storage device or USB keyboard.
Control Unit
1
EJECT (
) button
To eject a disc from the disc loading slot, press this button
during the cue standby or pause mode, or when no tracks are
being loaded from the disc.
2
LOOP operation buttons (P. 38)
3
TEMPO control section
TEMPO control range button (±6/10/16/WIDE):
Each time the button is pressed, the variable range of the
TEMPO adjust slider changes.
MASTER TEMPO button and indicator (MT):
Each time the button is pressed, the master tempo function
alternates ON/OFF.
TEMPO adjust slider:
From the center detent position, pull the slider towards you (+)
to increase the tempo, and push the slider away from you (–)
to slow down the tempo.
PITCH BEND +/– buttons:
When pressed during play, the pitch bend function is enabled.
Pressing the “+” button accelerates the pitch bend speed, and
pressing the “–” button decelerates the pitch bend speed.
The speed of the pitch change can be modified by holding the
button depressed while rotating the jog dial.
EJECT
