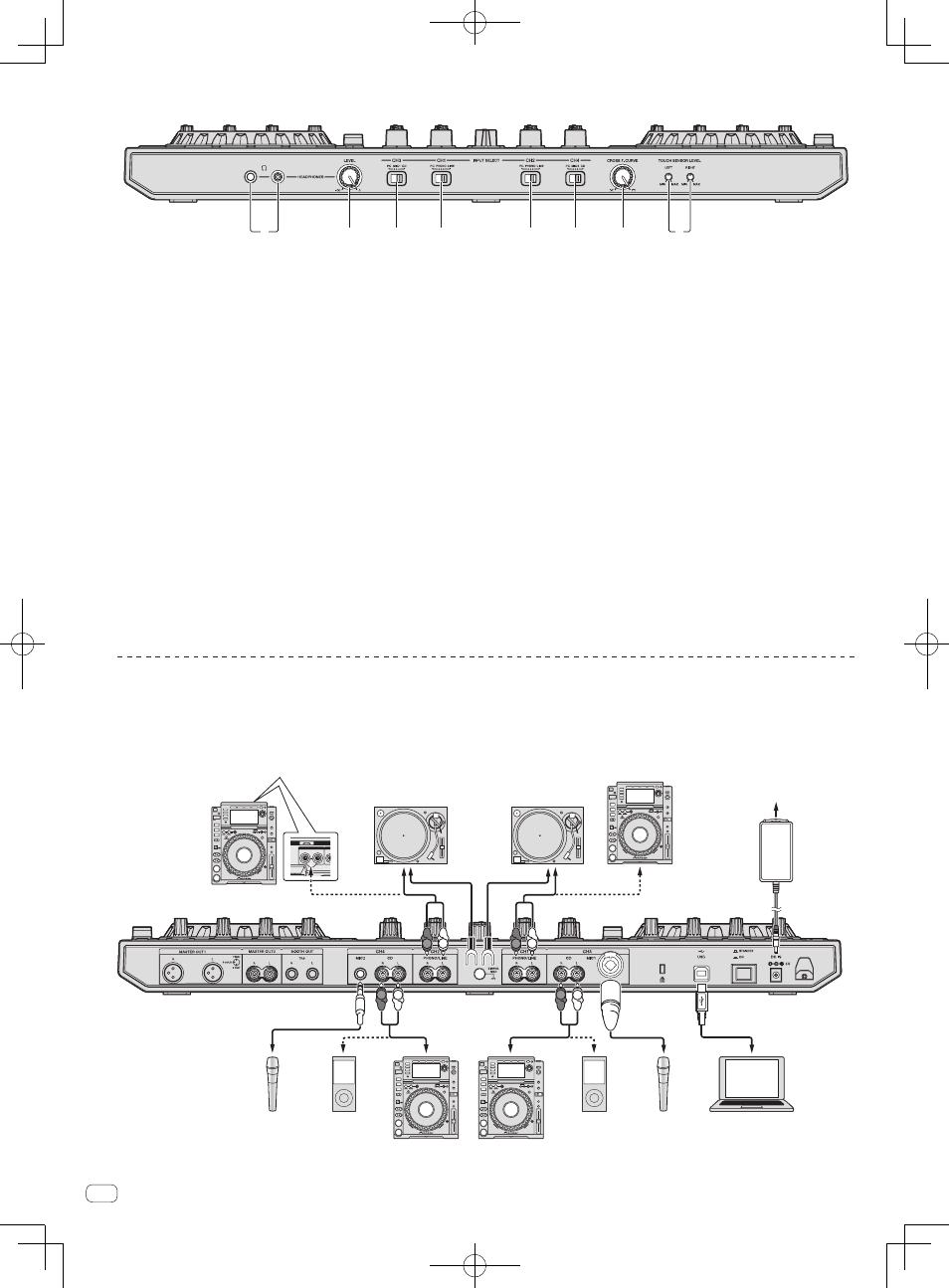

Front panel
1 6 2 5 3 4 3 4
1 PHONES jacks
Connect headphones here.
Both stereo phone plugs (Ø 6.3 mm) and stereo mini phone plugs (Ø
3.5 mm) can be used.
! There are two input jacks, both a stereo phones jack and a mini
phones jack, but do not use both simultaneously. If both are used
simultaneously, when one is disconnected and/or connected, the
volume of the other may increase or decrease suddenly.
2 HEADPHONES LEVEL control
Adjusts the audio level output from the [PHONES] terminal.
! The control can be stowed away by pressing it into the main unit.
When pressed again, the control pops out.
3 INPUT SELECT switch
Selects the input source of each channel from the components con-
nected to this unit.
— [PC]: Select this to use the track loaded in the Serato DJ soft-
ware’s deck.
— [MIC1] or [MIC2]: Select one of these to use the microphone con-
nected to the [MIC1] or [MIC2] jack.
— [CD]: Select this to use a line level output device (DJ player, etc.)
connected to the [CD] terminals.
— The sound is muted for approximately 3 seconds when
switched to [PHONO].
4 INPUT SELECT switch
Selects the input source of each channel from the components con-
nected to this unit.
— [PC]: Select this to use the track loaded in the Serato DJ soft-
ware’s deck.
— [PHONO]: Select this to use a phono level (for MM cartridges)
output device (analog player, etc.) connected to the [PHONO/
LINE] input terminals.
— [LINE]: Select this to use a line level output device (DJ player,
etc.) connected to the [PHONO/LINE] input terminals.
5 Crossfader curve selector control
This switches the crossfader curve characteristics.
! The further the control is turned clockwise, the sharper the curve
rises.
! The further the control is turned counterclockwise, the more
gradually the curve rises.
! The control can be stowed away by pressing it into the main unit.
When pressed again, the control pops out.
6 TOUCH SENSOR LEVEL control
This adjusts the sensitivity of the jog dial’s touch sensor.
Connecting the input/output terminals
Connecting input terminals
Rear panel
AUDIO OUT R L CONT
Analog player Analog player
DJ player
DJ player
Computer Portable audio
device
Portable audio
device
Microphone Microphone
DJ player DJ player
AC adapter
(included)
To power outlet
R L R L
R L R L
