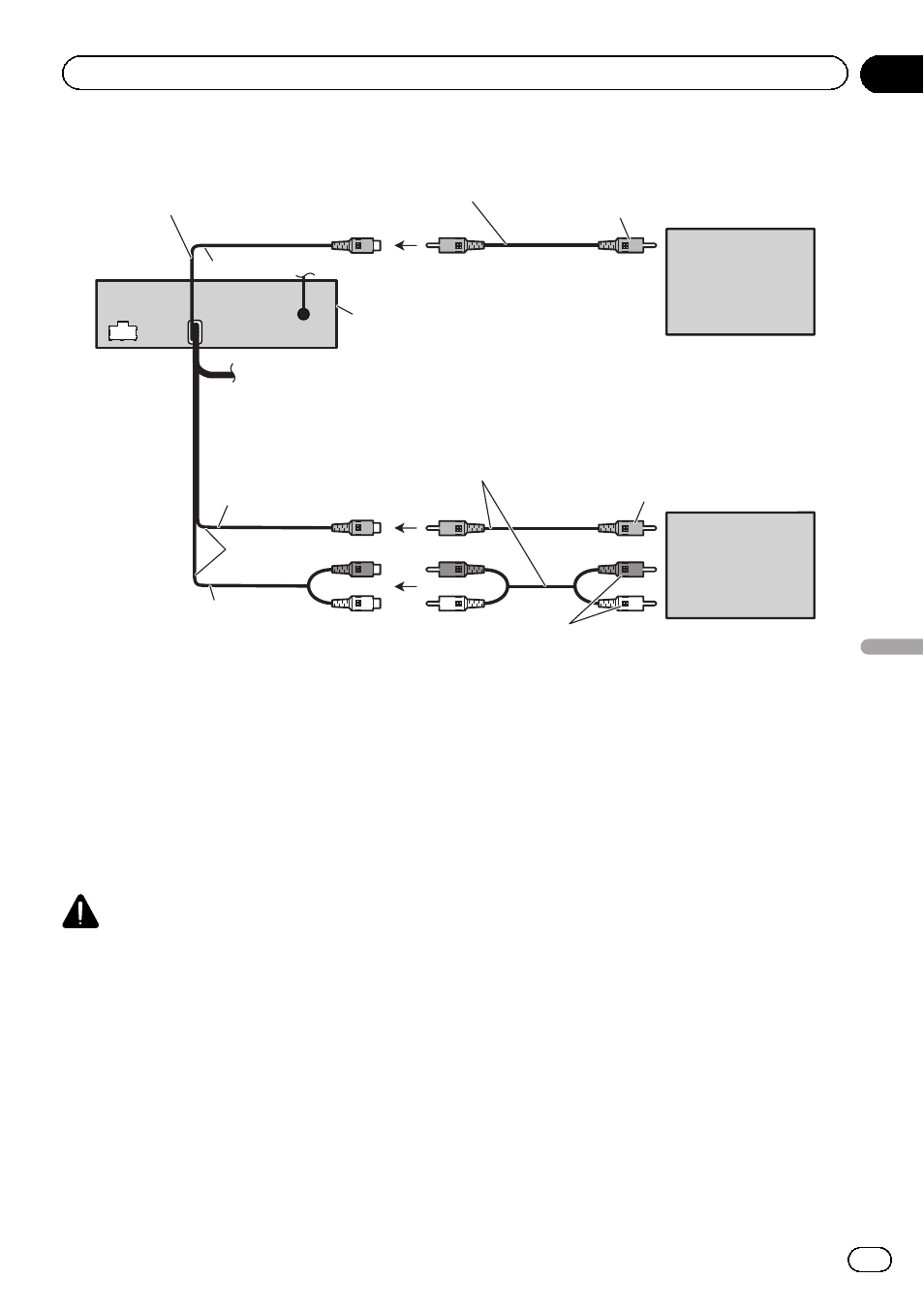

When connecting the external video component and the display
This product
External video
component (sold
separately)
RCA cables (sold separately)
Audio inputs
(AUDIO INPUT)
Video input (VIDEO INPUT)
Display with RCA
input jacks (sold
separately)
Rear monitor output
(REAR MONITOR OUTPUT)
To video input
To video output
To audio outputs
17 cm
RCA cables (sold separately)
17 cm
! It is necessary to change AV Input in
System Menu when connecting the exter-
nal video component.
When using a display connected to rear video output
This product
’s rear video output and rear
audio output are for connection of a display to
enable passengers in the rear seats to watch
the DVD, etc.
WARNING
! Never install the display in a location where it
is visible to the driver while driving.
