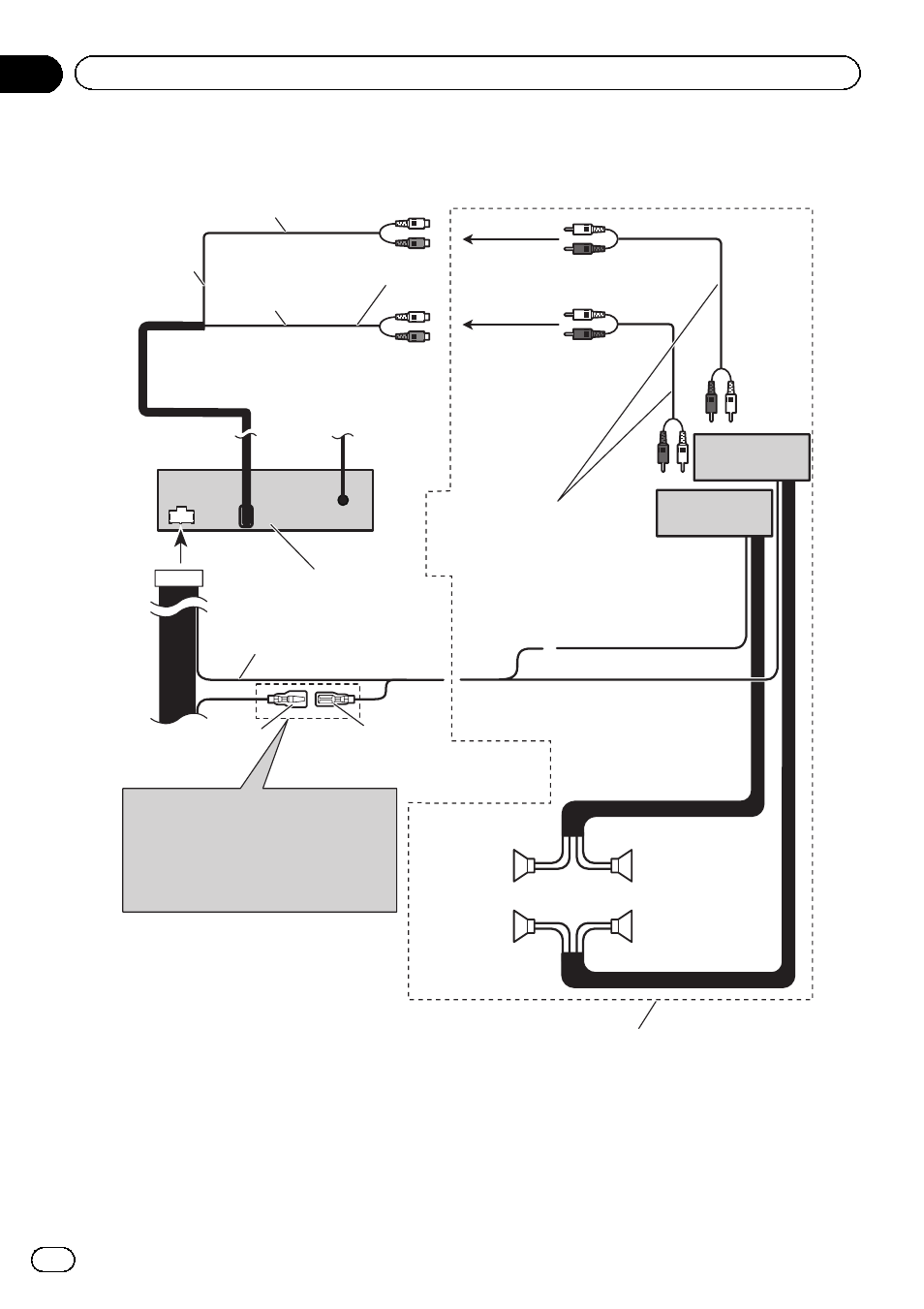

When connecting to separately sold power amp








This product
Rear output or subwoofer output
(REAR OUTPUT or SUBWOOFER OUTPUT)
Front output
(FRONT OUTPUT)
13 cm
13 cm
Blue/white
Connect to system control
terminal of the power amp
(max. 300 mA 12 V DC).
Blue/white (6*)
Connect to auto-antenna
relay control
terminal (max. 300 mA 12 V DC).
The pin position of the ISO connector
will differ depending on the type of
vehicle. Connect 5* and 6* when Pin 5
is an antenna control type. In another
type of vehicle, never connect 5* and 6*.
Blue/white (5*)
Rear speaker
or Subwoofer
Perform these connections when
using the optional amplifier.
System remote control
Front speaker Front speaker
Left Right
Rear speaker
or Subwoofer
Power amp
(sold separately)
Power amp
(sold separately)
Connect with RCA cables
(sold separately)
To front output
To rear output
or subwoofer
output
En
50
Section
12 Installation
