Chapter 2: Installing the router
8

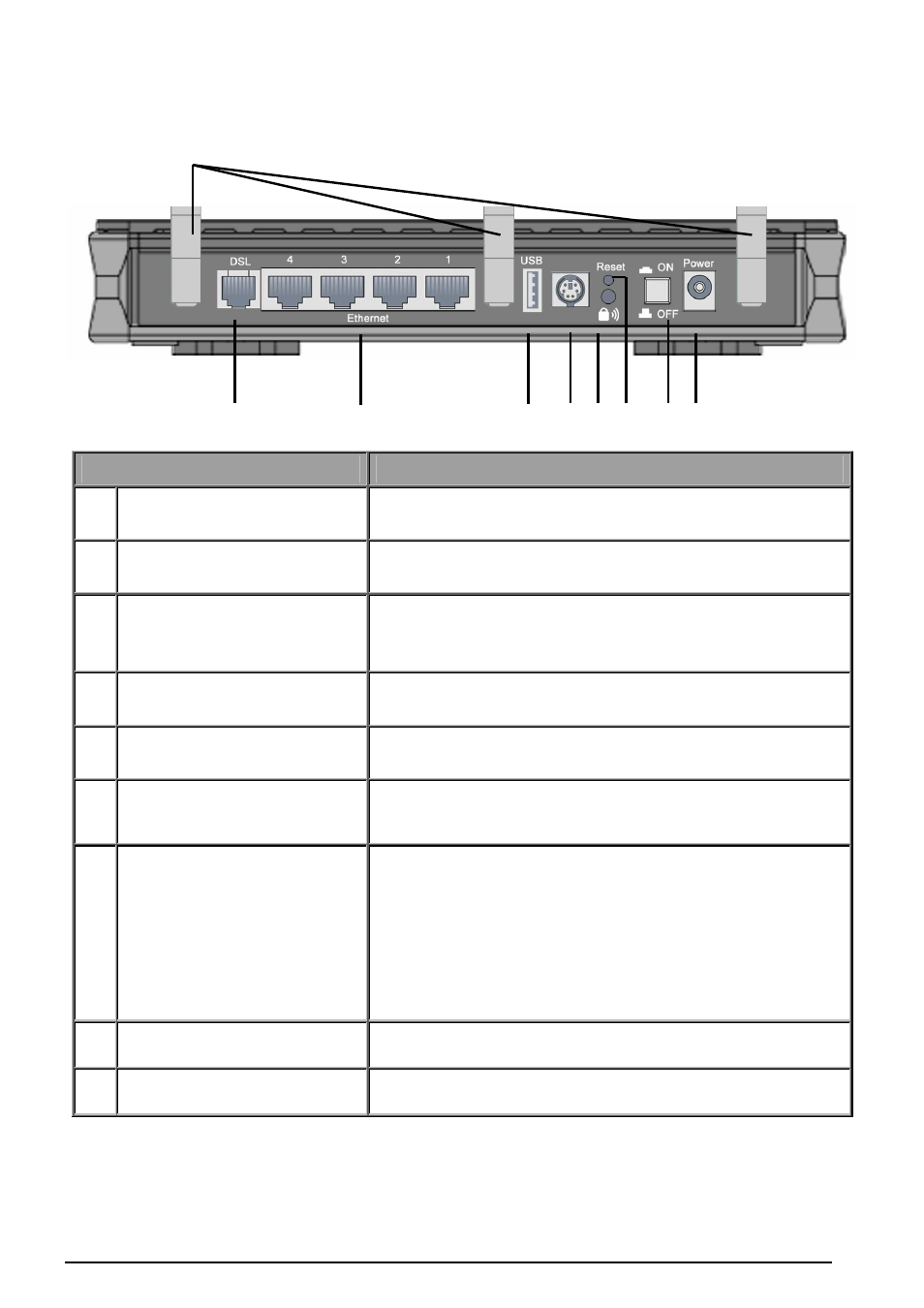

The Rear Ports
Port Meaning
1
Antenna Connect the detachable antenna to this port.
2
DSL
Connect the supplied RJ-11 (“telephone”) cable on this port
when connecting to the ADSL/telephone network.
3
LAN
1X — 4X
(RJ-45 connector)
Connect a UTP Ethernet cable (Cat-5 or Cat-5e) to one of the
LAN ports when connecting to a PC or an office/home
network of 10Mbps, 100Mbps or 1000Mbps.
4
USB
Connect the USB cable on this port.
5 Console Console port.
6 WPS
Push WPS button to trigger Wi-Fi Protected Setup
function.
7 RESET
To be sure the device is being turned on press RESET
button for:
1-3 seconds: quick reset the device.
6 seconds above, and power off, power on the device:
restore to factory default settings. (Cannot login to the router
or forgot your Username/Password. Press the button for
more than 6 seconds).
Caution: After pressing the RESET button for more than 6 seconds,
to be sure you power cycle the device again.
8
Power
Power ON/OFF switch
9
Power Switch
Connect the supplied power adapter to this jack.
3
1
2 4 5 6 7 8 9
