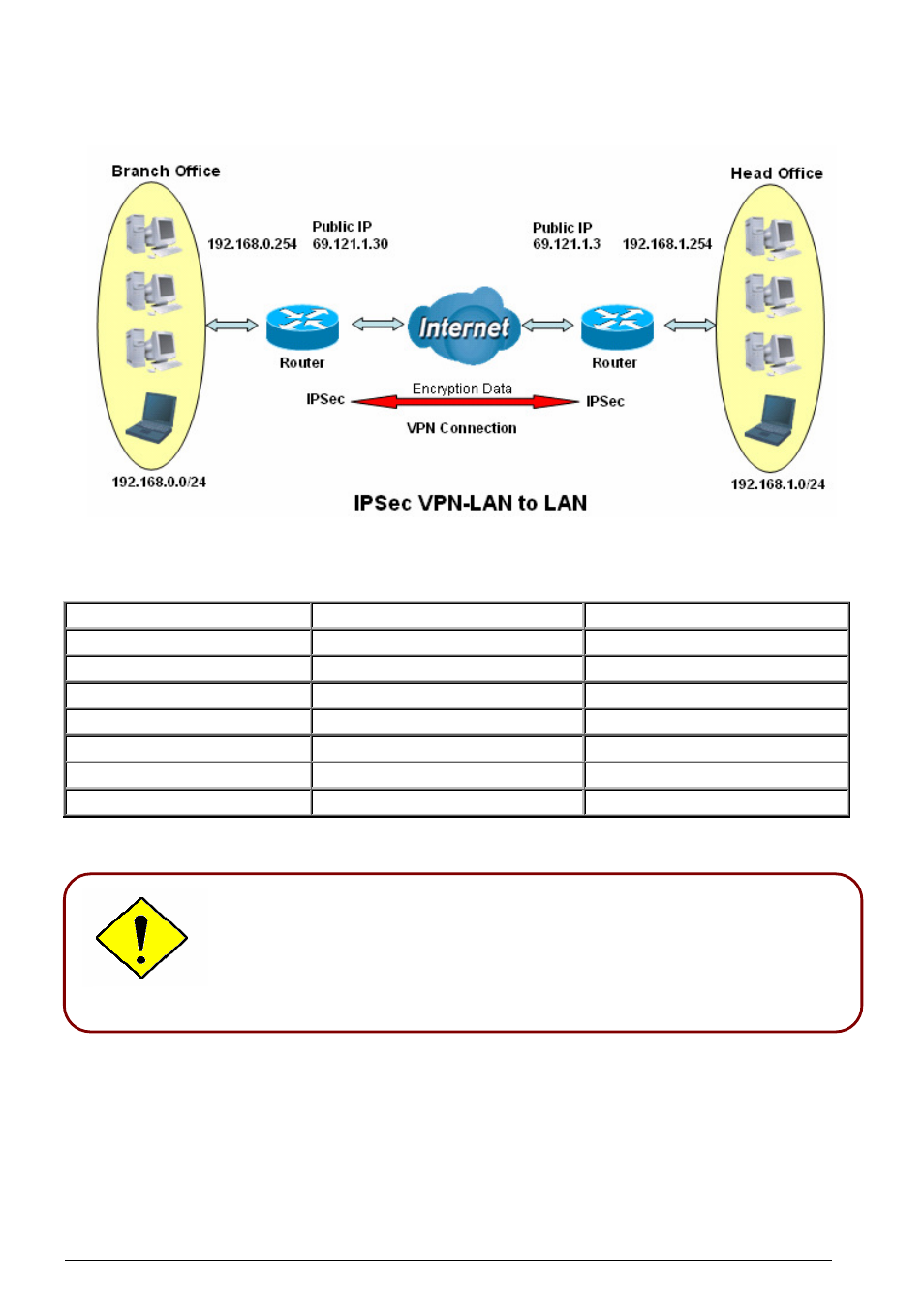

Example: Configuring a IPSec LAN-to-LAN VPN Connection
Table 3: Network Configuration and Security Plan
Branch Office Head Office
Local Network ID 192.168.0.0/24 192.168.1.0/24
Local Router IP 69.121.1.30 69.121.1.3
Remote Network ID 192.168.1.0/24 192.168.0.0/24
Remote Router IP 69.1.121.3 69.1.121.30
IKE Pre-shared Key 12345678 12345678
VPN Connection Type Tunnel mode Tunnel mode
Security Algorithm ESP:MD5 with AES ESP:MD5 with AES
Both office LAN networks MUST in different subnet with LAN to LAN application.
Functions of Pre-shared Key, VPN Connection Type and Security Algorithm
MUST BE identically set up on both sides.
Attention
