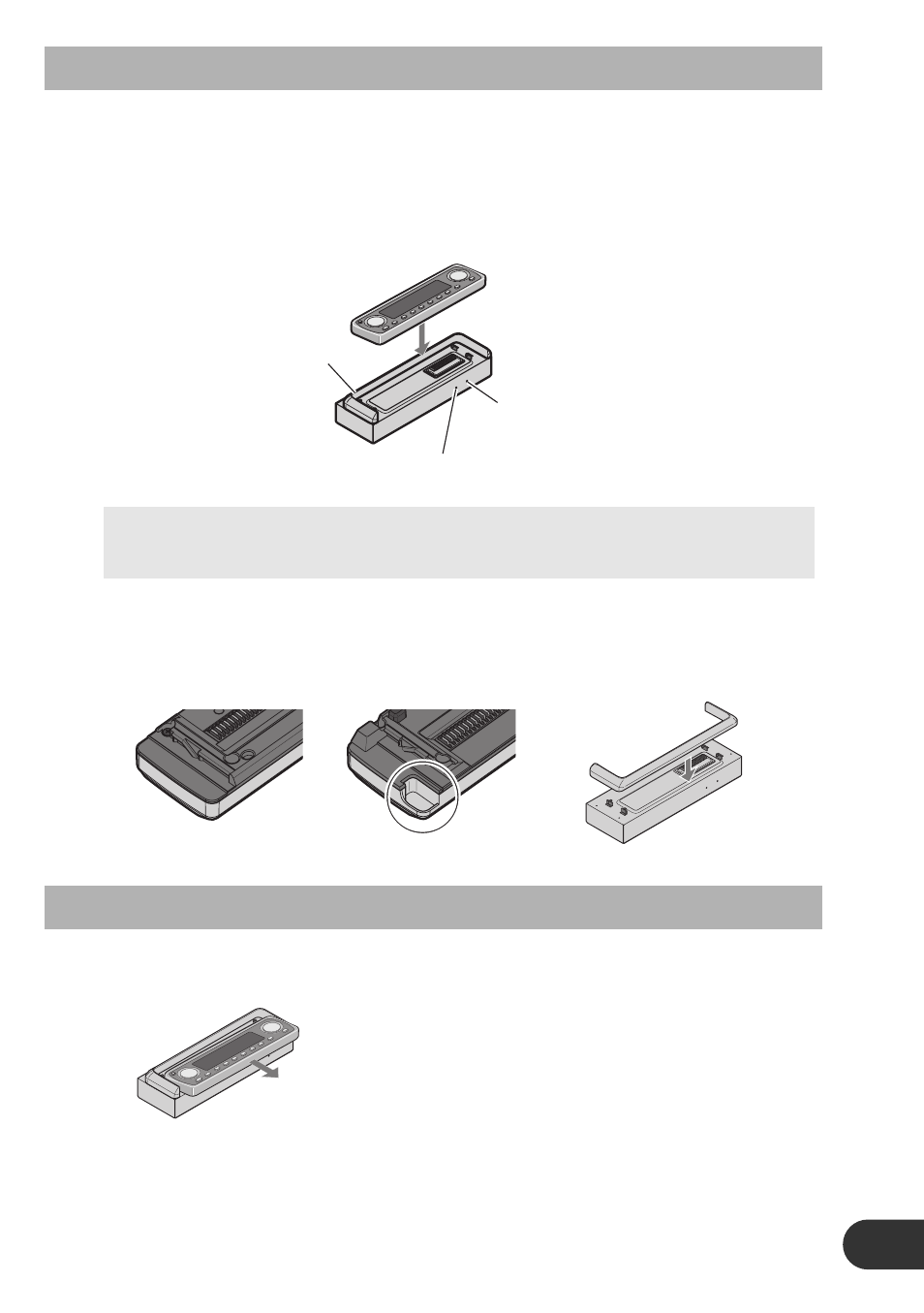

Mounting the Front Panel
Mount the front panel to this unit.
z
Align with the mounting guide and mount the front
panel.
Align the position of the unit and front panel connectors and push the front panel straight
down until a click is heard and the panel is securely locked. If the front panel is correctly
mounted, the Ready indicator will light.
Note:
• For front panels with a cut-off corner, the direction of the mounting guide needs to be changed.
In this case, pull off the mounting guide and remount as shown in the illustration below.
Checking the front panel Mounting the mounting guide
Removing the Front Panel
z
Slide off the front panel to remove.
Caution:
• When mounting the front panel by sliding, damage may occur to the front panel connector of
the unit. Always mount the front panel by pushing straight down.
25
Mounting guide
Ready indicator
Power indicator
