Page 7
7
English

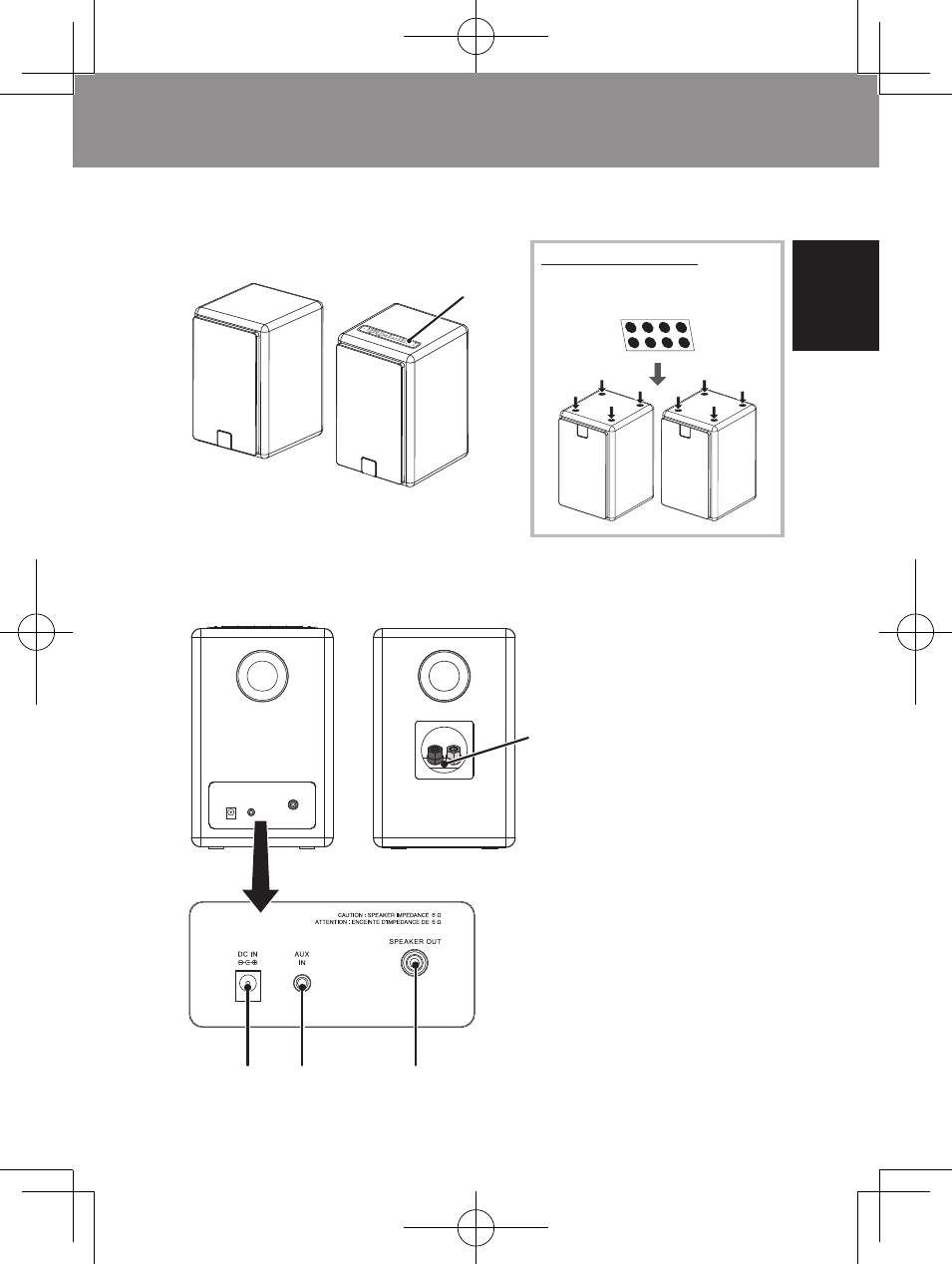

Main view
Rear view
1
2
3
4
Part names and functions
Left Speaker
Right Speaker
Top panel
(page 8)
Left Speaker
Right Speaker
Back Panel
1.
DC IN Jack
Connect the AC adapter.
2.
AUX IN Jack
Connect auxlliary components.
3.
SPEAKER OUT Jack for Left Speaker
Connect the pin plug of Speaker cable.
4.
Speaker Terminal
Connect the Speaker cable.
Attaching Rubber feet
Apply the accessory rubber feet to
the bottom surface of the unit.
