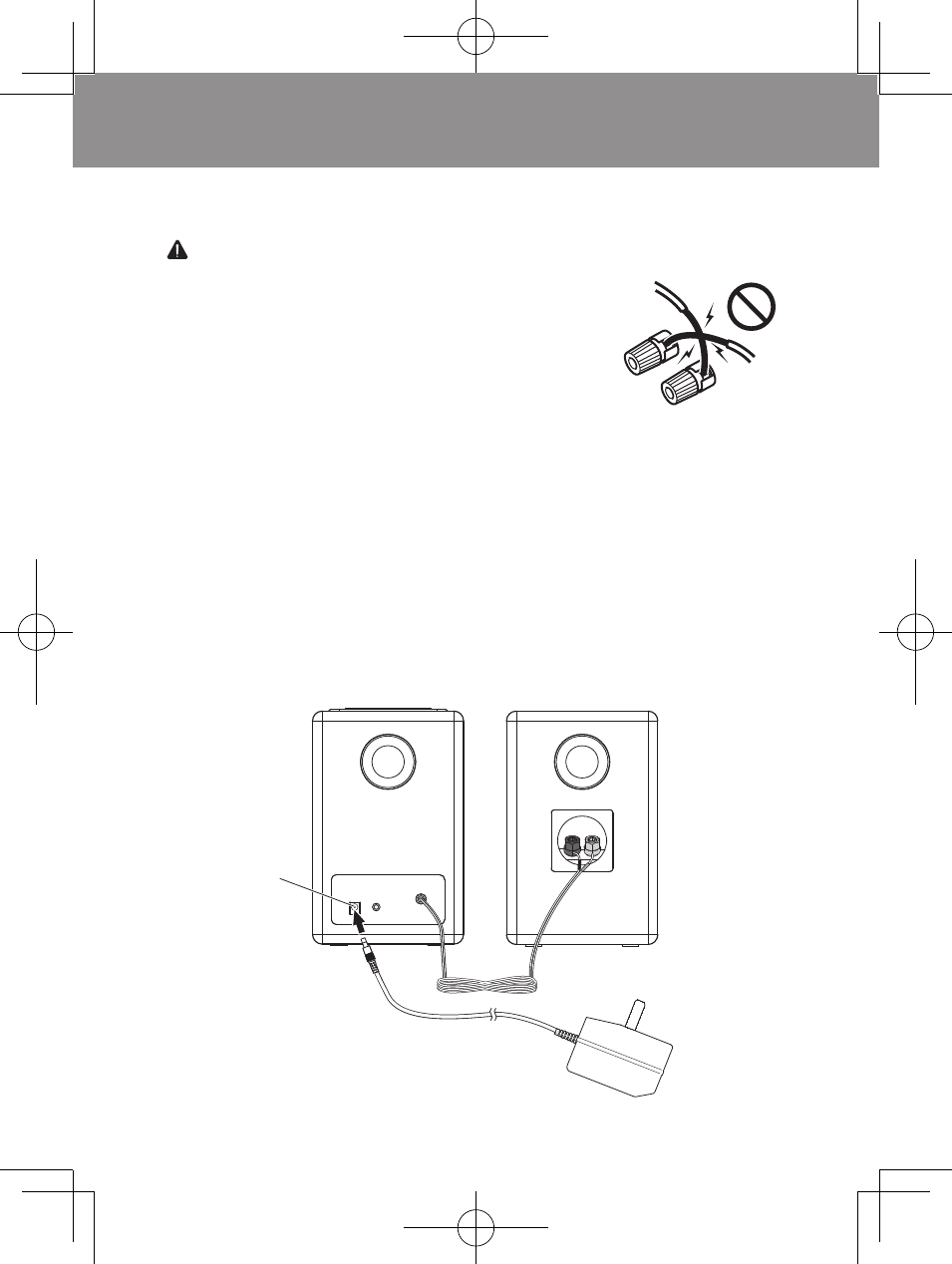

Incorrect
Rear side of
Left Speaker
Rear side of
Right Speaker
DC IN
CAUTION
• These speaker terminals carry HAZARDOUS LIVE voltage.
To prevent the risk of electric shock when connecting or
disconnecting the speaker cables, disconnect the power cord
before touching any uninsulated parts.
• Do not connect the supplied speakers with any other amplifier.
This may result in malfunction or fire.
• Do not let the bare speaker wires touch each other.
• Do not attach these speakers to the wall or ceiling, as they may cause injury in the event of
a fall.
• Do not allow any objects to fall into or to be placed in the bass reflex ducts.
• Do not stand or sit on the speakers. You may be injured.
3. Connect DC Power
• Connect the AC adaptor’s DC plug to the DC IN jack on the back panel. Then connect the
power plug on the other end to the power outlet.
• Use only the AC adapter included in this package, do not use the power adapter of different
specification.
