Remote control

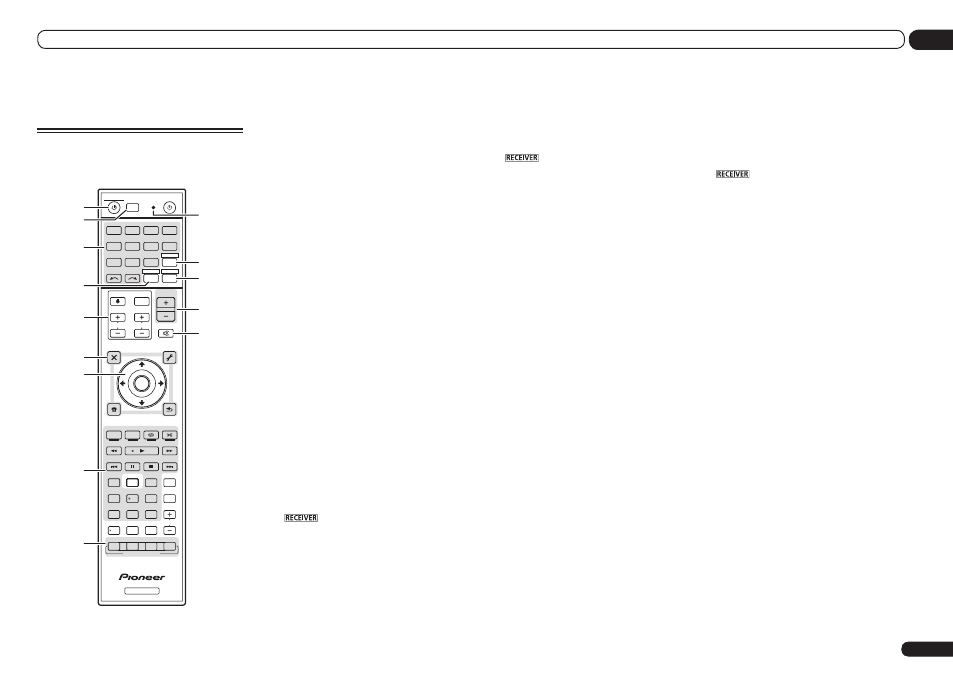

This section explains how to operate the remote
control for the receiver.
RECEIVER
D.ACCESS
CH LEVEL A.ATT
LISTENING MODE
DIMMER
SIGNAL SEL MCACC SLEEP
TV / DTV
MPX
PQLS
PHASE CTRL
STATUS
PGM
iPod CTRL
HOME
MENU
TUNE
TUNE TOOLS
LIST
CH
TV CONTROL
INPUT
INPUT SELECT
iPod
USB
SAT
TUNER
VIDEO
TV CTRL
ZONE 2
ADPT
CD
TV
RCU SETUP
SOURCE
RECEIVER MULTI
OPERATION
BDR
BD
DVD
DVR
HMG
HDMI
RECEIVER
MUTE
MASTER
VOLUME
VOL
PRESET
TOP MENU
BAND
GUIDE
T.EDIT
VIDEO
PARAMETER
AUDIO
PARAMETER
ENTER
PRESET
RETURN
PTY
SEARCH
MENU
AUTO / ALC /
DIRECT
STEREO STANDARD ADV SURR
AUDIO
INFO
CLASS
ENTER
DISP
HDD
DVD
5
4
6
8
0
7
9
1
3
/ CLR
CH
22
S.RETRIEVER
2
1
2,3
4
5
9
10
6
7
8
11
13
12
14
15
The remote has been conveniently color-coded
according to component control using the follow-
ing system:
! White – Receiver control, TV control
! Blue – Other controls (See pages 27, 28, 30, 31
and 54.)
1 u RECEIVER
This switches between standby and on for this
receiver.
2 MULTI OPERATION
Use this button to perform multi operations
(page 52).
3 RCU SETUP
Use to input the preset code when making
remote control settings and to set the remote
control mode (page 50).
4 Input function buttons
Press to select control of other components
(page 50).
Use INPUT SELECT
c/ d to select the input
function (page 27).
5 ZONE 2
Switch to perform operations in ZONE 2 (page
47).
6 TV CONTROL buttons
These buttons are dedicated to control the TV
assigned to the TV CTRL button.
7 Receiver setting buttons
Press
first to access:
! AUDIO PARAMETER – Use to access the
Audio options (page 44).
! VIDEO PARAMETER – Use to access the
Video options (page 46).
! HOME MENU – Use to access the Home
Menu (pages 23, 24, 41, 56 and 62).
! RETURN – Press to confirm and exit the
current menu screen.
8
i/j/k/l/ENTER
Use the arrow buttons when setting up your
surround sound system (see page 56) and the
Audio or Video options (page 44 or 46).
9 Receiver Control buttons
Press
first to access:
! PHASE CTRL – Press to switch on/off Phase
Control (page 34).
! STATUS – Press to check selected receiver
settings (page 48).
! PQLS – Press to select the PQLS setting
(page 42).
! S.RETRIEVER – Press to restore CD quality
sound to compressed audio sources (page
44).
! SIGNAL SEL – Use to select an input signal
(page 34).
! MCACC – Press to switch between MCACC
presets (page 34).
! SLEEP – Use to put the receiver in sleep
mode and select the amount of time before
sleep (page 48).
! CH LEVEL – Press repeatedly to select a
channel, then use
k/l to adjust the level
(page 63).
! A.ATT – Attenuates (lowers) the level of an
analog input signal to prevent distortion
(page 48).
! DIMMER – Dims or brightens the display
(page 48).
10 LISTENING MODE controls
! AUTO/ALC/DIRECT – Switches between
Auto Surround (page 33), Auto Level Control
mode and Stream Direct mode (page 34).
! STEREO – Press to select stereo playback
mode (page 33).
! STANDARD – Press for Standard decoding
and to switch various modes (2 Pro Logic,
Neo:6, etc.) (page 33).
! ADV SURR – Use to switch between the
various surround modes (page 33).
11 Remote control LED
Lights when a command is sent from the
remote control.
12 TV CTRL
Set the preset code of your TV’s manufacturer
when controlling the TV (page 50).
13
Switches the remote to control the receiver
(used to select the white commands).
Switch to perform operations in the main zone.
Also use this button to set up surround sound.
14 MASTER VOLUME +/–
Use to set the listening volume.
15 MUTE
Mutes the sound or restores the sound if it has
been muted (adjusting the volume also restores
the sound).
