A. Adjust Brew Time

B. Adjust Brew Temperature
C. Adjust Quality Timer
D. Adjust Dripout Timer
E. Adjust After Hours Timer

A

B

C

D

E

UNDER

TOP COVER

(IN SECONDS)

BREW
TIMER

(IN °F)

BREW
TEMP

(IN 5 MIN INCR)

QUALITY
TIMER

(IN SECONDS)

DRIPOUT
TIMER

(IN ONE HR INCR)

AFTER HOURS
TIMER

WATER
LEVEL
PROBE

TEMP
PROBE

20

185

6

OFF

3

60

90

30

70

120

OFF

194

205

OFF

210

320

100

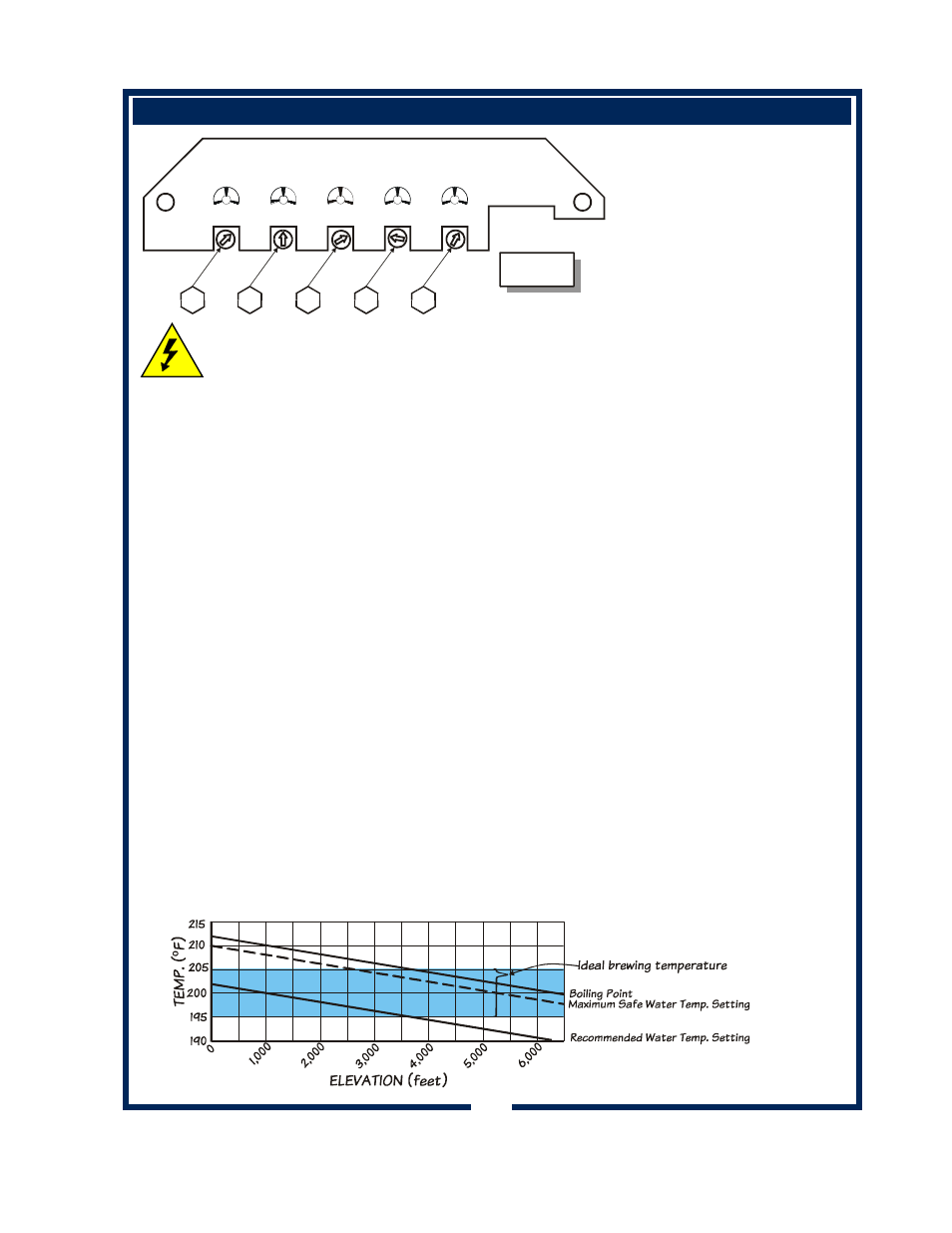

SERVICING — OPERATIONAL ADJUSTMENTS

CAUTION:
Electric Shock Hazard

Unplug or disconnect the brewer from electric
power before removing the top cover

IMPORTANT:
Adjustments must be performed
by qualified service personnel ONLY.

1.
Access the Controls: All adjustments on
the E-Max™ LX may be accessed by
removing the top cover or top warmer station
from the brewer. The adjustments are
directly behind the front panel.

2. Adjust Brew Time:
The time the brew
solenoid is open maybe adjusted by turning
the shaft of the left-most control (A). Turning
the shaft clockwise increases the time. Ten
degrees of rotation is approximately equal to
seven seconds change. Adjust until a
complete brew is achieved without
overflowing the decanter.

3. Adjust Brew Temperature:
Ideal brewing
temperature is 195ºF to 205ºF. Realistically,
the maximum brew temperature is the local
boiling temperature minus 10ºF. To adjust
the temperature, turn the shaft of the second
control (B). Turning the shaft clockwise
increases temperature. Fifteen degrees of
rotation is approximately equal to 1-1/4ºF.

4. Adjust Quality Timer: When a brew is
completed, the timer begins counting down.
At the end of the set time, the warmer
indicators will blink continuously until reset
(push to turn off, push again to turn back
on). The length of time may be adjusted by
turning the shaft of the third control (C).
Turning the shaft clockwise increases the
time. Turning the shaft fully counter-
clockwise turns the Quality Time function off.
Adjustment is in five minute increments.

5. Adjust Dripout Timer:
This feature
disables the brew switch for an amount of
time after the brew solenoid closes to allow
all water to finish dripping through the
grounds. The length of time may be adjusted
by turning the shaft of the fourth control (D).
Turning the shaft clockwise increases the
time. Ten degrees of rotation is
approximately equal to 2-1/2 seconds.

6. Adjust After Hours Timer: This feature
places the brewer into an energy-saver
mode if no brew has been initiated for a
length of time. Time may be adjusted by
turning the shaft of the fifth control (E).
Turning the shaft clockwise increases the
time. Turning the shaft fully counter-
clockwise turns the After Hours function off.
Adjustment is in one hours incremen

ts.
