Connecting the Acoustimass ® module to the Lifestyle ® music
center
Connect the Acoustimass module to the music center with the audio input cable (Figure 6).
1. Insert the three connectors at one end of the audio input cable into the jacks on the rear
panel of the music center:
• Black connector into the SYSTEM CONTROL 1 jack
• Red connector into the R (right) FIXED OUTPUT jack
• White connector into the L (left) FIXED OUTPUT jack
Note: Be sure the connectors are fully inserted into each of the jacks. If the black connector
is not inserted fully into the SYSTEM CONTROL jack, you will hear no sound.
Note: Do not connect the audio input cable to the SPEAKERS A or SPEAKERS B outputs
(Figure 6). The speakers in your Lifestyle ® 12 system are designed to work properly with the
fixed level audio output available from the FIXED OUTPUT jacks.
2. Insert the single right-angle multi-pin connector on the other end of the audio input cable
into the AUDIO INPUT jack on the Acoustimass module. Align the connector at the angle
shown in Figure 6.
3. Extend the audio input cable as much as possible, since it includes an antenna for the
remote control.

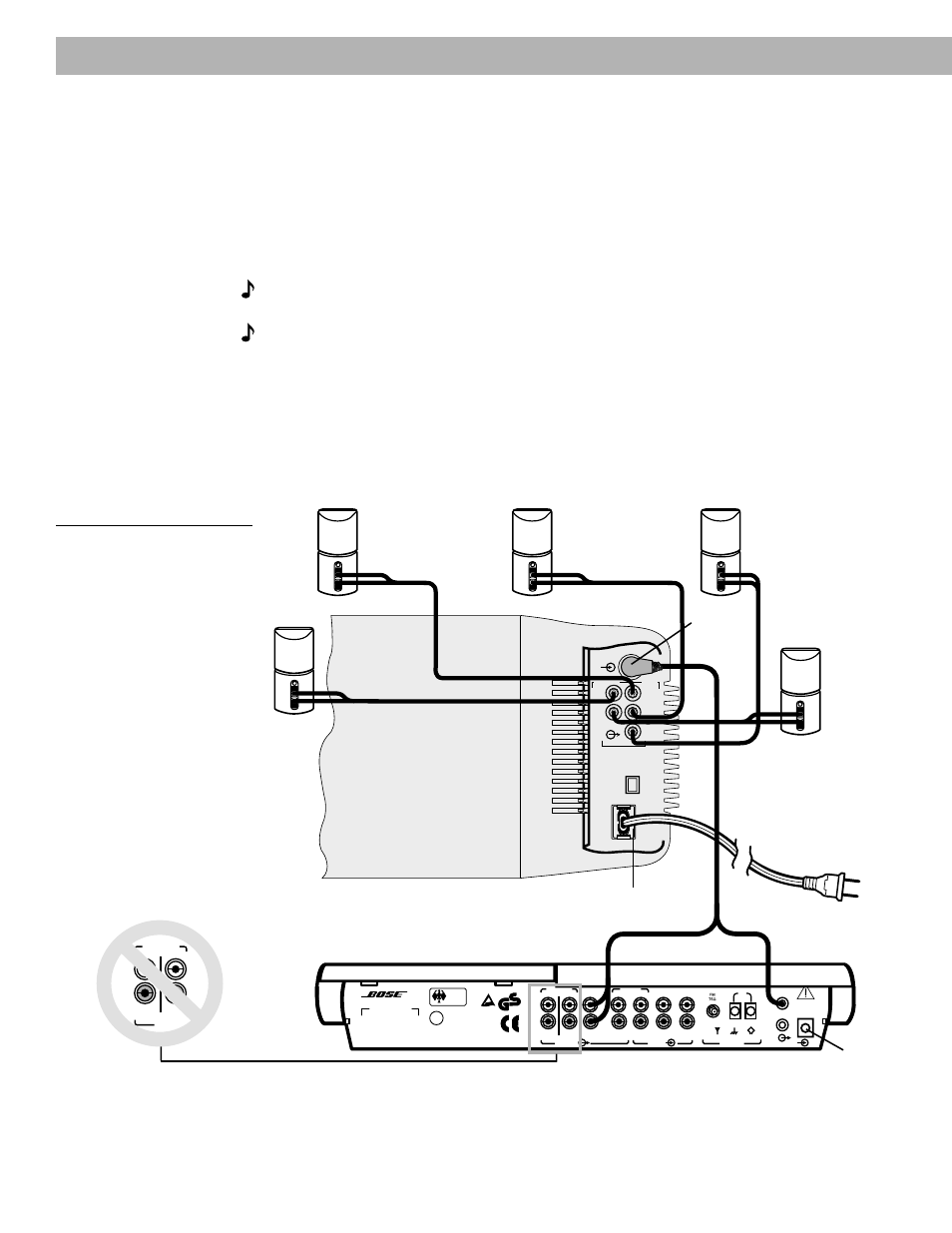

Figure 6
Music center and speaker
connections
