Basic guide

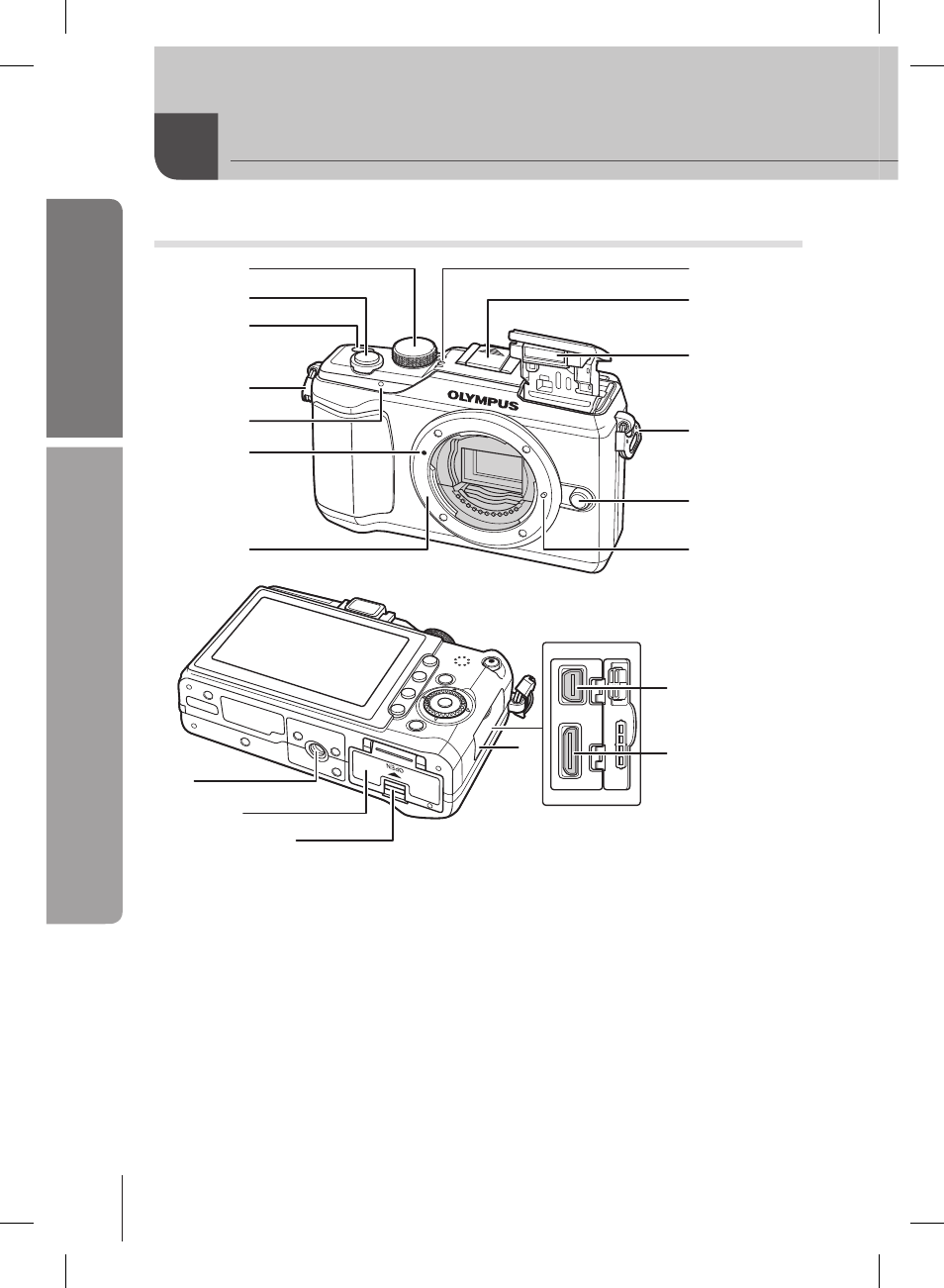

Names of parts and functions
Camera
1
2
3
4
5
7
6
b
9
a
0
4
8
f
c
d
e
g
h
1 Mode dial................................P. 6, 10
2 Shutter button .......... P. 11, 12, 35, 88
3
ON/OFF button ...........................P. 6
4 Strap eyelet ..................................P. 2
5 Self-timer lamp ...........................P. 46
6 Lens attachment mark .................P. 5
7 Mount (Remove the body cap before
attaching the lens.)
8 Microphone ..........................P. 59, 65
9 Hot shoe cover
0 Built-in flash................................P. 56
a Lens release button .....................P. 5
b Lens lock pin
c Tripod socket
d Battery/card compartment cover
.....................................................P. 3
e Battery/card compartment lock ....P. 3
f Connector cover
g Multi-connector...............P. 66, 70, 74
h HDMI mini-connector (type C)....P. 66
Names of parts
