Preparations for shooting
1
1
Preparations for shooting

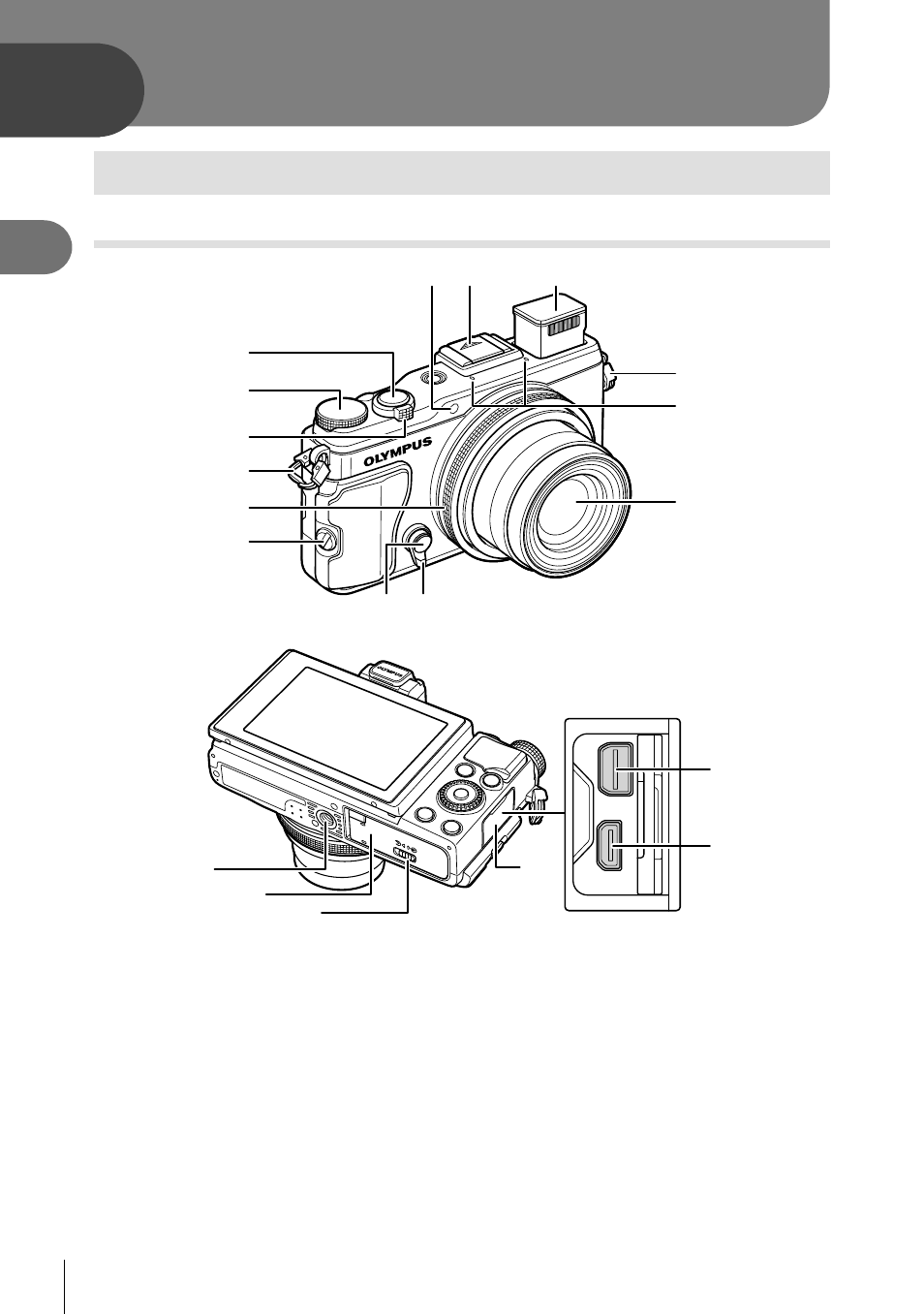

Names of parts
Camera
0 a 9
1
2
3
4
6
5
c
4
b
8 7
g d
e
f
h
i
1 Shutter button .............................P. 9, 43
2 Mode dial ..........................................P. 8
3 Zoom lever ....................P. 10, 11, 29, 89
4 Strap eyelet.......................................P. 4
5 Control ring* (
j) ..................P. 29, P. 89
6 Grip attachment screw
7 Fn2 button ......................................P. 65
8 Lever ...............................................P. 43
9 Self-timer lamp/AF illuminator
...............................................P. 27/P. 59
0 Hot shoe cover
a Built-in fl ash ..............................P. 10, 24
b Stereo microphone
c Lens
d Tripod socket
e Battery/card compartment cover.......P. 5
f Battery/card compartment lock .........P. 5
g Connector cover
h Multi-connector ...................P. 66, 71, 74
i HDMI micro connector (Type D) .....P. 66
* In this manual, the
j icon represents operations performed using the control ring.
