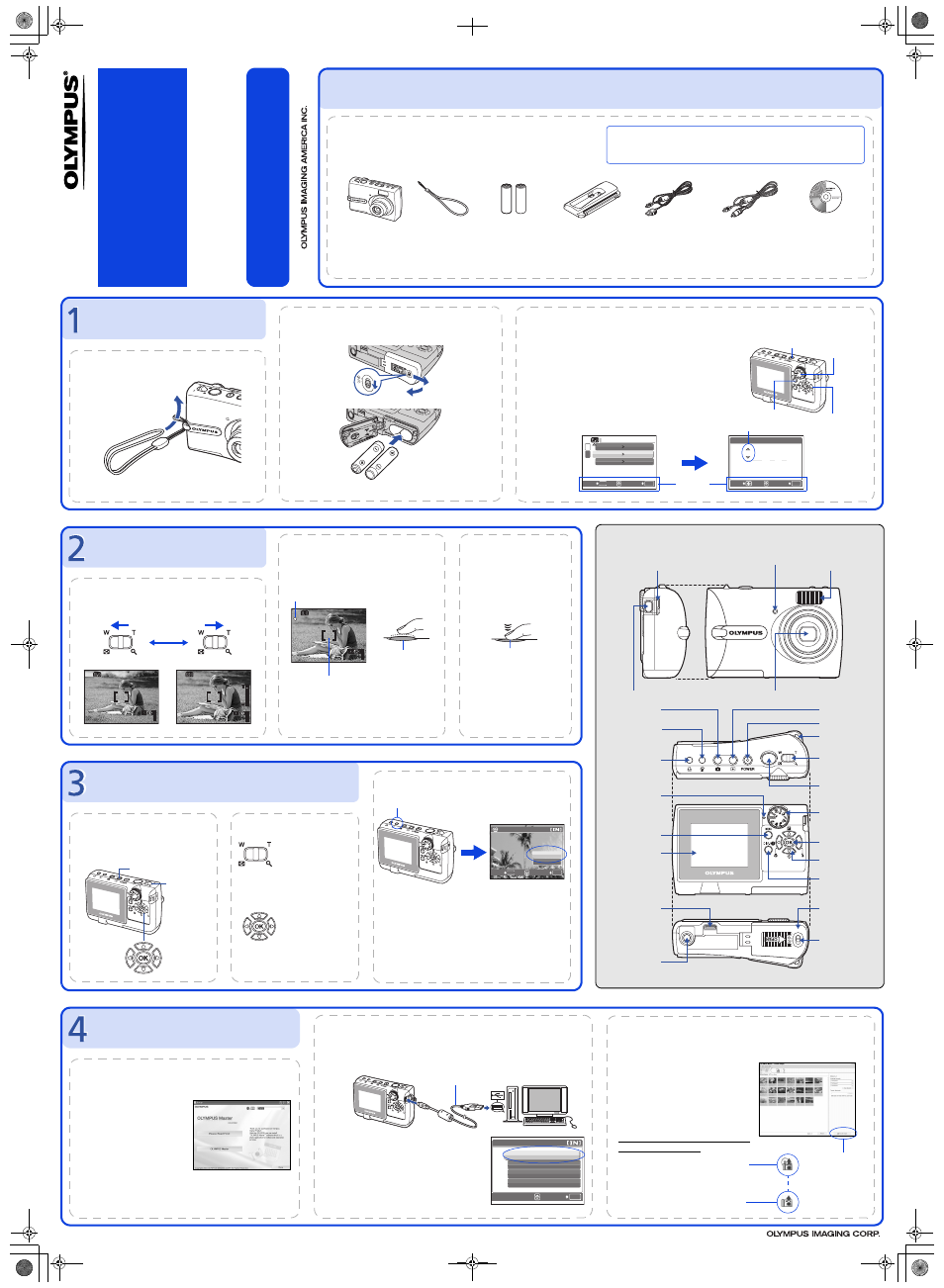

Olympus FE-130 User Manual
Start here, Quick start guide, Take a picture
TAKE A PICTURE
2592
2592
×
1944
1944
HQ
HQ
4
4
2592
2592
×
1944
1944
HQ
HQ
4
4
a. Zoom
c. Take the picture
1
Press the shutter button
completely to take the
picture.
(Pressed Completely)
Shutter Button
b. Focus
1
Using the monitor, place the AF target mark
over your subject.
2
Press and hold the shutter button halfway
to lock the focus.
The green lamp indicates the focus is locked.
2592
2592
×
1944
1944
HQ
HQ
4
4
Green Lamp
(Pressed Halfway)
Shutter Button
AF Target Mark
Pictures will be recorded in the
internal memory of the camera.
If the optional xD-Picture Card
(hereinafter called “card“) is
inserted into the camera,
pictures will be recorded in the
card.
Quick Start Guide
FE-130/X-720/X-740
FE-140/X-725
TRANSFER IMAGES
a. Install the software
1
Insert the OLYMPUS Master CD-ROM.
2
Windows:
Click the “OLYMPUS
Master“ button.
Macintosh:
Double-click the “Installer“
icon.
3
Simply follow the on-screen
instructions.
Remember to register your camera when you install OLYMPUS
Master or visit:
www.olympusamerica.com/prodreg
b. Connect the camera to the computer
1
Connect the camera and computer using the USB cable (provided).
The monitor will turn on automatically.
2
Select [PC] on the monitor, and press
F.
Your PC will now recognize your camera as a
removable storage drive.
USB cable
2
1
USB
PC
OK
EASY PRINT
CUSTOM PRINT
EXIT
SET
c. Transfer images to the computer
1
With the camera now connected,
open OLYMPUS Master.
The [Transfer Images] window is
displayed.
2
Select the images you want to
transfer, and click the [Transfer
Images] button.
[Transfer Images] window
[Transfer Images]
button
b.
Click the “From Camera” icon.
a.
Click the “Transfer Images” icon
on the OLYMPUS Master main
menu.
If the [Transfer Images] window is not
displayed automatically:
REVIEW OR ERASE A PICTURE
a. Press the
q button
b. Take a closer look
Zoom Lever
The last picture taken will be displayed.
Pull the lever
toward T to
enlarge the picture
up to 10 times the
original size, or
push the lever
toward W to
reduce the size.
Press
F to return
to the original size.
Prev. Picture
Next Picture
Arrow Pad
q Button
Press the
K button to return to
shooting mode.
Press O/N/X/Y
to scroll around.
c. To erase a picture
OK
MENU
BACK
SET
ERASE
YES
YES
NO
S Button
1
Display the picture you want to erase.
2
Press the
S button.
3
Select [YES], and press
F.
The picture is permanently erased.
GET STARTED
a. Attach the strap
Pull the strap tight so that it does not come loose.
b. Insert the batteries
1
2
4
3
c. Set the date and time
1
Set the mode dial to
h, and press the POWER button
to turn the camera on.
2
Press the MENU button to display the top menu and
select [SETUP]>[
X] using the arrow pad (O/N/X/Y).
3
Set “Date format“, “Y“, “M“, “D“, “hour“ and
“minute“ by following the operation guide.
POWER Button
MENU Button
Mode Dial
Arrow Pad
(O/N/X/Y)
OK
SET
x
2006 . 01 . 01
2006 . 01 . 01
00 : 00
00 : 00
MOVE
Y
M D
X
2
1
NTSC
'06.01.01 00:00
OK
SETUP
SETUP
VIDEO OUT
X
MENU
BACK
SET
s
NORMAL
Operation
guide
Date format
BEFORE YOU BEGIN
Digital Camera
Strap
AA Batteries (two)
Camera insert*
USB Cable (light gray)
Video Cable (black)
Gather these items (box contents)
OLYMPUS Master
software CD-ROM
Items not shown: Advanced Manual (CD-ROM), Basic Manual, warranty card. Contents may vary depending on purchase location.
* Use it when connecting the camera to an optional printer which is compatible to the ImageLink print system.
The images of the LCD screen and illustrations of the camera used in
this manual may differ from the actual product. For this manual, all of
the images are based on the FE-130/X-720/X-740 model.
Start Here
CAMERA DIAGRAM
Self-Timer Lamp
Shutter Button
POWER Button
Flash
Lens
Zoom Lever
K Button
(Shooting Mode)
q Button
(Playback Mode)
Arrow Pad
(O/N/X/Y)
MENU Button
Strap Eyelet
Battery
Compartment/
Card Cover
Tripod Socket
Connector Cover
Multi-Connector
DISP./
E Button
S Button (Erase)
< Button (Print)
Monitor
F Button
Card access lamp
Mode Dial
Cover-lock
Printer connector
