Basic guide

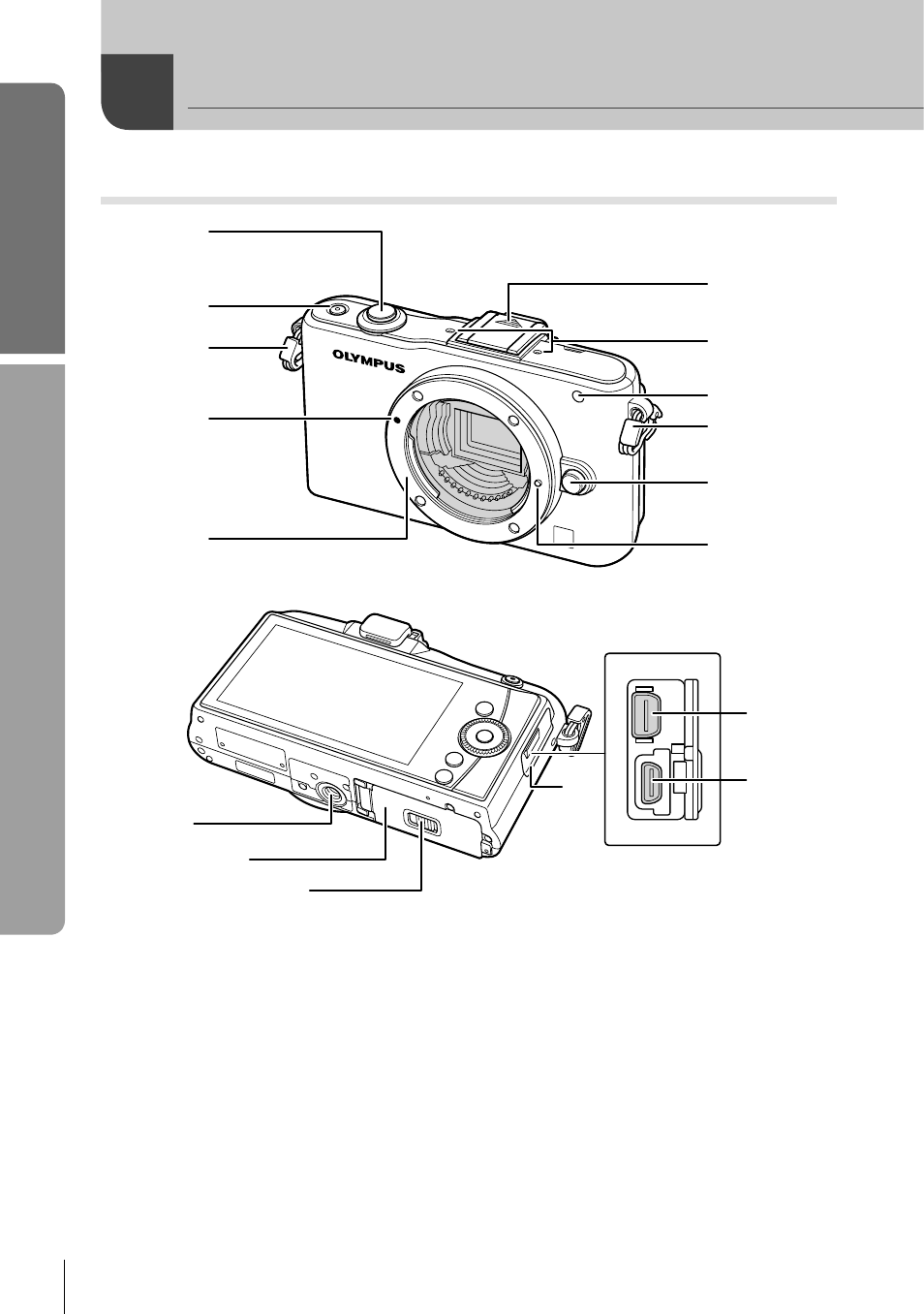

Names of parts and functions
Camera
1
2
3
4
5
0
9
8
7
6
3
d
a
b
c
e
f
1 Shutter button ...............P. 13, 14, 36, 92
2 ON/OFF button ................................P. 8
3 Strap eyelet.......................................P. 3
4 Lens attachment mark ......................P. 6
5 Mount (Remove the body cap before
attaching the lens.)
6 Hot shoe cover
7 Stereo microphone ...................P. 62, 68
8 Self-timer lamp/AF illuminator
...............................................P. 49/P. 82
9 Lens release button ..........................P. 6
0 Lens lock pin
a Tripod socket
b Battery/card compartment cover.......P. 4
c Battery/card compartment lock .........P. 4
d Connector cover
e Multi-connector ...................P. 69, 73, 77
f HDMI micro connector (type D) ......P. 69
Names of parts
