PAGE 20 — ST-4125D/ST-6125D SUBMERSIBLE PUMPS — OPERATION AND PARTS MANUAL — REV. #1 (06/12/08)
ST-4125D/ST-6125D
—
OPERATION
Operation
1. Attach a suitable lifting chain to the eye bolts (Figure 14) on
the pump and using a crane, or similar equipment, lower the
pump into place. For applications where there is an exces-
sive amount of mud, grit or silt, the use of a support platform
is desirable.
2. Make sure the pump is always placed in an upright position,
not tilted (Figure 15). Never position the pump directly on a
soft, loose bottom. Remember to attain maximum pumping
capacity and prevent excessive wear, position the pump so
it will not burrow itself into sand or clay.

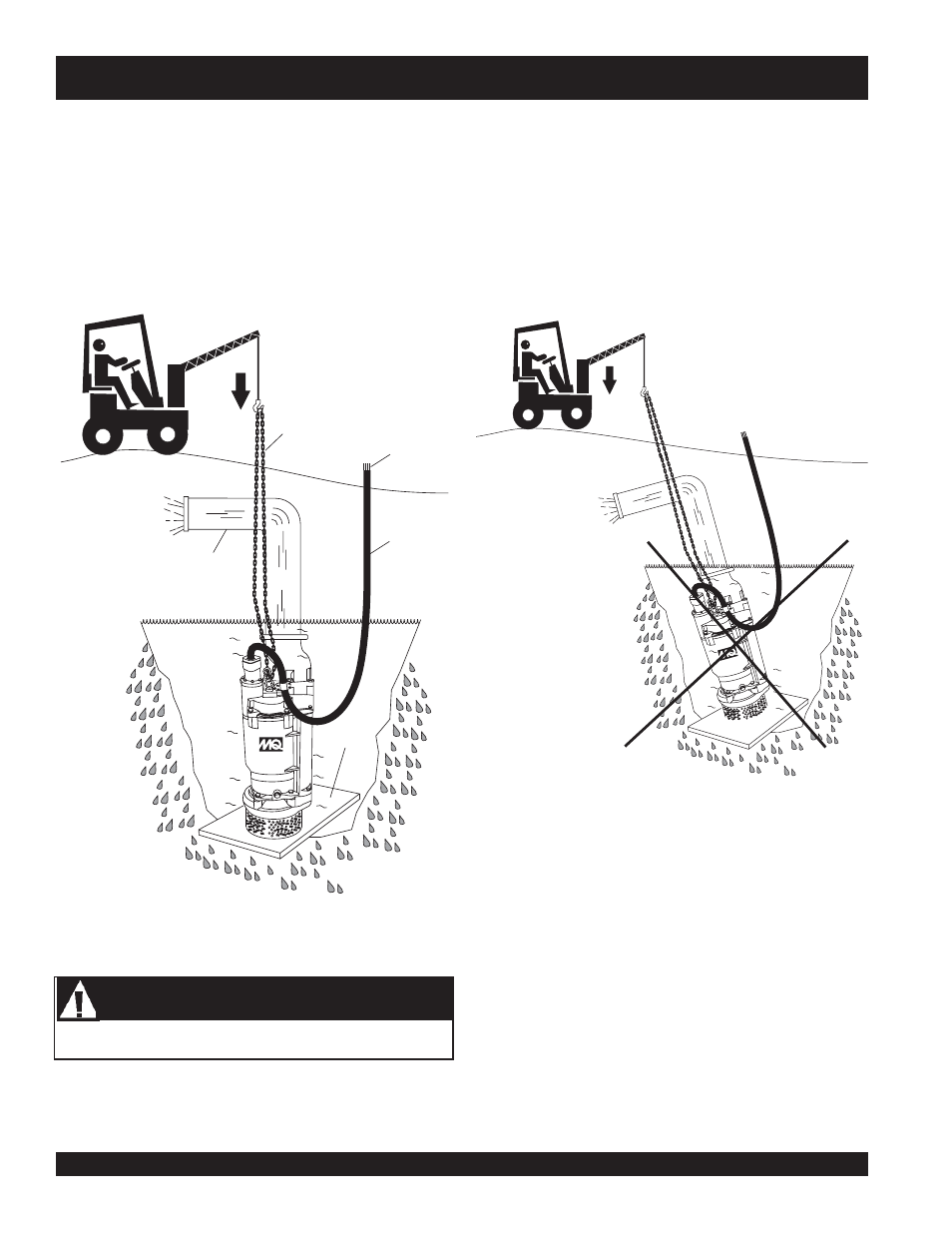

Figure 14. Placing the Submersible Pump
(Correct Upright Position)
Figure 15. Incorrect Tilted Position
3. After the pump has been positioned correctly into place,
power can be applied to the pump's electric motor.
SUBMERSIBLE
PUMP
ST-6125D
LIFTING
CHAIN
4 or 6-INCH
DISCHARGE
HOSE
POWER
CORD
SUPPORT
PLATFORM
CONNECT
TO CONTROL
BOX
LOW
ER LOW
ER
SUBMERSIBLE PUMP
ST-6125D
DO NOT use this pump for swimming pool applications!
