Attach one end of the 10" S/S flex line (22) to the
end of the grill’s gas valve.
Attach the other end of the S/S flex line to the
brass “tee” (20). F
IGURE
14.
N
ATURAL
G
AS
C
ONNECTION
The grill’s natural gas supply line valve installed
by your gas company must be turned to OFF.
I
MPORTANT
: T
HE GAS SUPPLY LINE MUST HAVE A
SHUTOFF VALVE INSIDE THE WALL
. C
ONTACT YOUR
LOCAL GAS COMPANY FOR DIRECTIONS
.
Disconnect the copper gas supply line from the
gas valve located under the grill’s control panel.

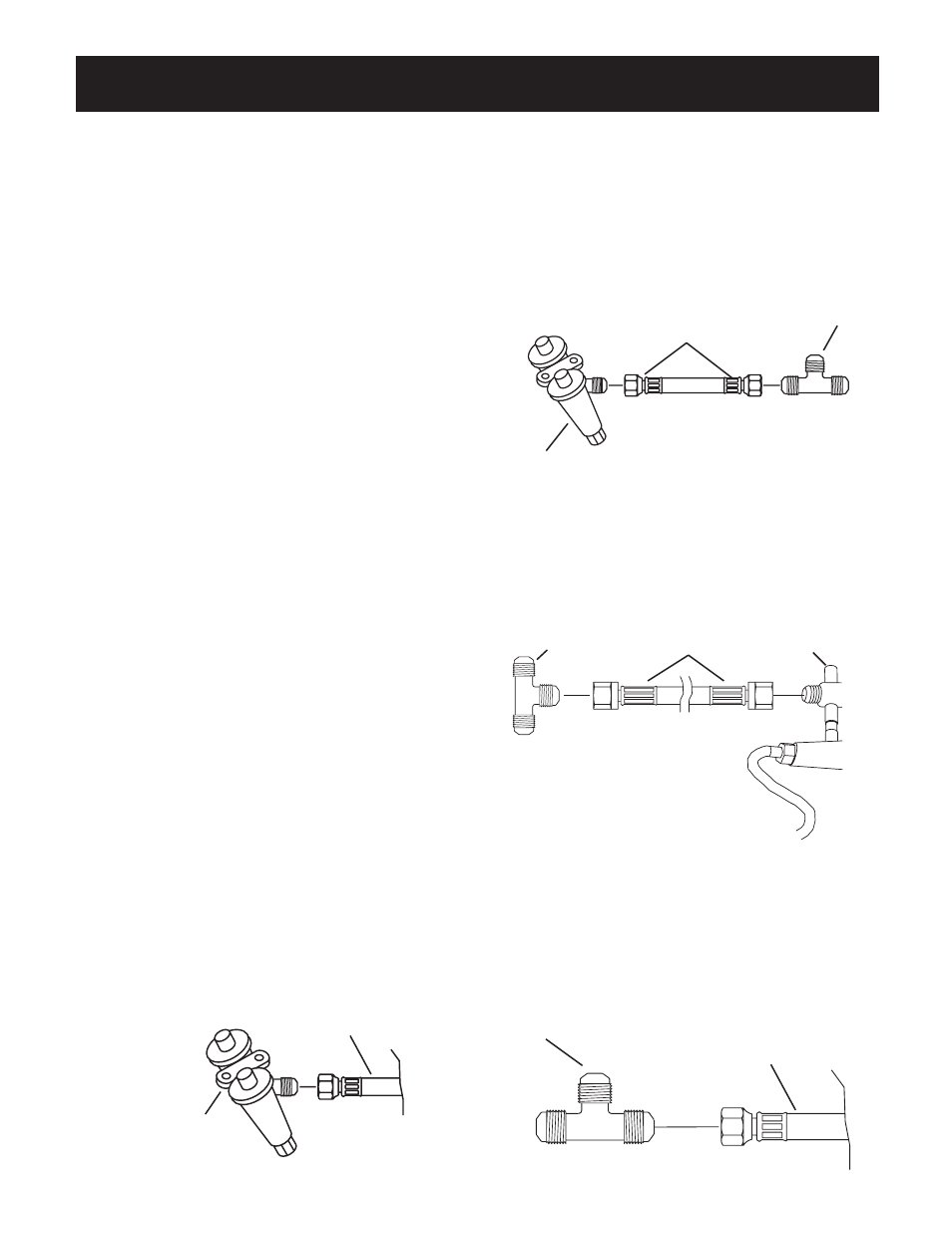

F
IGURE
13.
Attach one end of the 34" S/S flex line (23) to the
end of the side burner valve (6).
Attach the remaining end of the S/S flex line to
the end of the “tee” (20) connector. F
IGURE
15.
F
IGURE
13
Grill Gas Valve
Gas Supply Line
Attach the copper gas supply line to the brass
“tee” (20). Use two adjustable wrenches to tighten
the joint. F
IGURE
16.
“Tee” (20)
Connection Requirements
Installation must conform to local codes or, in the
absence of local codes, with the National Fuel Gas
Code, ANSI Z223.1. In Canada, installation shall
be in accordance with CAN/CGA-B149.2 Propane
Installation Code, or CAN/CGA-B149.1 Natural
Gas Installation Code, and local codes where
applicable. Contact your local gas company for
code regulations, recommended procedures, and
the installation of your grill’s gas supply line.
Broilmaster ® gas grills and side burners are not
equipped with pressure regulators. Your gas grill
operates at a manifold pressure of seven (7")
inches water column.
Connect cart mounted natural gas grills to a pre-
installed gas supply line using the twelve (12') foot
flexible hose and quick disconnect kit supplied or
specified by the manufacturer.
C
AUTION
: T
HE GRILL AND ITS INDIVIDUAL SHUTOFF
VALVE MUST BE DISCONNECTED FROM THE GAS SUPPLY
PIPING SYSTEM DURING ANY SYSTEM PRESSURE TESTING
AT TEST PRESSURES IN EXCESS OF 1/2 PSIG.
C
AUTION
: T
HE GRILL MUST BE ISOLATED FROM THE
GAS SUPPLY PIPING SYSTEM BY CLOSING ITS INDIVIDUAL
MANUAL SHUTOFF VALVE DURING ANY PRESSURE
TESTING OF THE GAS SUPPLY PIPING SYSTEM AT TEST
PRESSURES EQUAL TO OR LESS THAN 1/2 PSIG.
Connection Instructions
F
IGURE
16
“Tee” (20)
Gas Supply Line
F
IGURE
14
Grill Gas Valve
7" S/S flex line (22)
F
IGURE
15
34" S/S flex line (23) 20 6
