Gas Type
Your Broilmaster ® side burner is factory equipped
for LP gas and must be converted for use with
Natural gas grills. Never use liquid propane gas
with a grill designed for natural gas, or natural gas
with a grill designed for liquid propane gas. The
type gas required for your grill can be determined
from its product identification label. Questions
regarding different types of gases should be
directed to your gas company.
N
ATURAL
G
AS
C
ONNECTION
C
AUTION
: N
EVER USE LIQUID PROPANE GAS IN A GRILL
DESIGNED FOR NATURAL GAS
,
OR NATURAL GAS IN A
GRILL DESIGNED FOR LIQUID PROPANE GAS
. Q
UESTIONS
REGARDING DIFFERENT TYPES OF GASES SHOULD BE
DIRECTED TO YOUR LOCAL GAS COMPANY
.
Side Burner Location
Your grill and side burner have been designed for
outdoor use ONLY.
This side burner mounts on the right side of a
Broilmaster
® gas grill and cannot be used with
another grill or for any other purpose.
You should never install or operate your grill and
side burner in any building, garage, or other
enclosed area.
For your safety, the grill and side burner should
not be installed or operated under any combustible
materials, such as carports, covered porches,
awnings, or overhangs.
Never install or use your grill and side burner in
or on any recreational vehicle or boat.
A minimum clearance of sixteen (16") inches is
required from all sides of the side burner to any
combustible material. Refer to the grill’s Owner’s
Manual for specific grill clearances.
Examples of combustible materials are patio
furniture, fences, or the wall of your home.
The area surrounding the grill and side burner
should be clear to ensure proper ventilation. Do
not obstruct the flow of combustion and ventilation
air in any way. The ventilation openings on the
propane cylinder enclosure must also remain free
and clear of debris.
Portable grills with side burners should be level
and positioned away from direct wind prior to each
use.
CAUTION: T
HE INSTALLATION AND OPERATION OF
THIS GRILL AND SIDE BURNER AT CLEARANCES LESS
THAN SPECIFIED BELOW MAY CAUSE A FIRE
,
PROPERTY
DAMAGE
,
OR PERSONAL INJURY
.
WARNING: D
O NOT INSTALL OR OPERATE THIS
GRILL AND SIDE BURNER WHERE GASOLINE OR OTHER
FLAMMABLE MATERIALS ARE USED OR STORED
. F
AILURE
TO COMPLY WITH THIS WARNING COULD RESULT IN
EXPLOSION OR FIRE CAUSING PROPERTY DAMAGE OR
PERSONAL INJURY
.

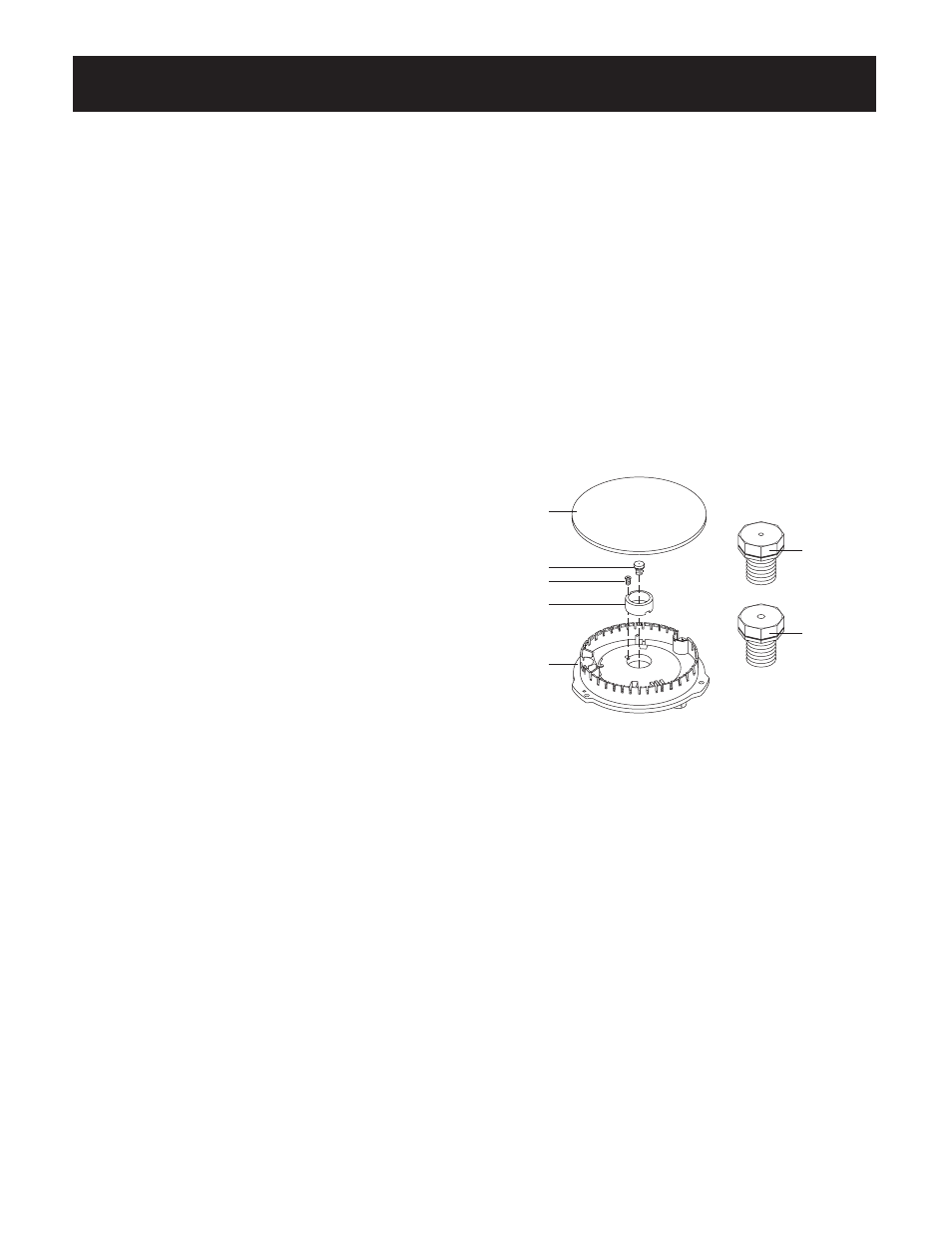

173
DENOTES
(NAT) BRASS
ORIFICE
89
DENOTES (LP)
BRASS ORIFICE
BRASS
ORIFICE
SHUTTER
SCREW
SIDE
BURNER
SHUTTER
RING
BURNER
TOP
173
89
1. Remove shutter screw. Important: Do not
discard this screw; it will be reinstalled.
2. Remove shutter ring. The shutter ring is not
used for Natural gas, but retain for future use
if LP conversion is desired.
3. Use a 7 mm nut driver or socket wrench to
remove the LP orifice and replace it with the
Natural gas orifice supplied.
4. Replace the shutter screw.
5. Turn set screw in center of valve stem 1/2 turn
counterclockwise.
6. Apply soapy solution to test for leaks around
the set screw. If a leak is found, turn screw
clockwise until bubbles cease.
I
MPORTANT
: P
LACE CONVERSION LABEL INSIDE LID
ADJACENT TO SERIAL NUMBER LABEL
.
