Page 6
ON
OFF
SYS/INTER
VAL
DIA PULSE/TIME
A I R
AUT O ON/OFF
STAR
T STOP
0 1
2
0 1 2 3 4 5 6 7 8 9

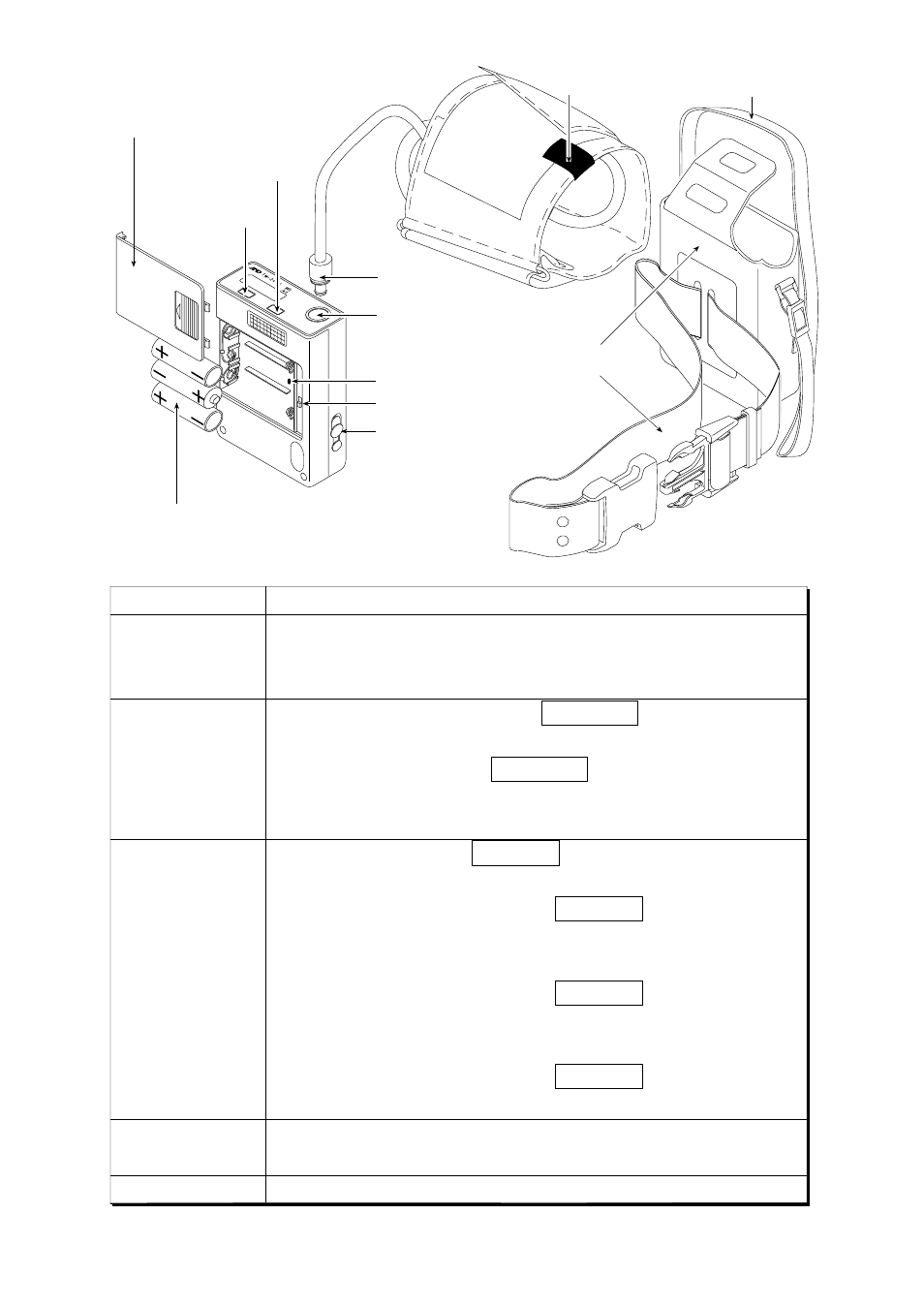

Air socket
Air hose plug
RS-232C terminal
Power switch
Alkaline batteries (type LR6, type AA, Mignon)
Auto ON/OFF key
Start Stop key
Adult cuff
for left arm
Air hose
The batteries are not included in this pack.
Battery cover
Reset key
Yellow mark Shoulder band
Belt
Carrying case
Name Functions
Power switch This is the main power switch. In the OFF state, all data and
parameters are preserved by an backup battery. The backup
battery life is approximately 10 days with the power off.
AUTO ON/OFF key • When you press and hold the AUTO ON/OFF key, the automatic
measurement is started or stopped alternately.
• When you press the AUTO ON/OFF key at mode II of the
automatic measurement, " S " is displayed or turned off alter-
nately. This sign changes the interval for sleep.
START STOP key • When you press the START STOP key, a blood pressure mea-
surement is started at once.
• When you press and hold the START STOP key for approx. 3
seconds, the recorder proceeds to "Selection for the auto-
matic measurement".
• When you press and hold the START STOP key for approx. 6
seconds, the recorder proceeds to "Parameters for the display
and clock".
• When you press and hold the START STOP key for approx. 9
seconds, the recorder proceeds to "Deleting old data".
RS-232C terminal This terminal is used for data output to a printer or computer.
The optional RS-232C cable is necessary to output the data.
Reset key All data and parameters are deleted.
Packing List and Component Names Product overview
