Agri-Fab Dethatcher for Sweepers 45-03431 - Manual (Page 3)

3
5
19
NOT SHOWN FULL SIZE
6 7
18
9
10
11
8
13
14
15
16
21
22
24
23
20
17
12

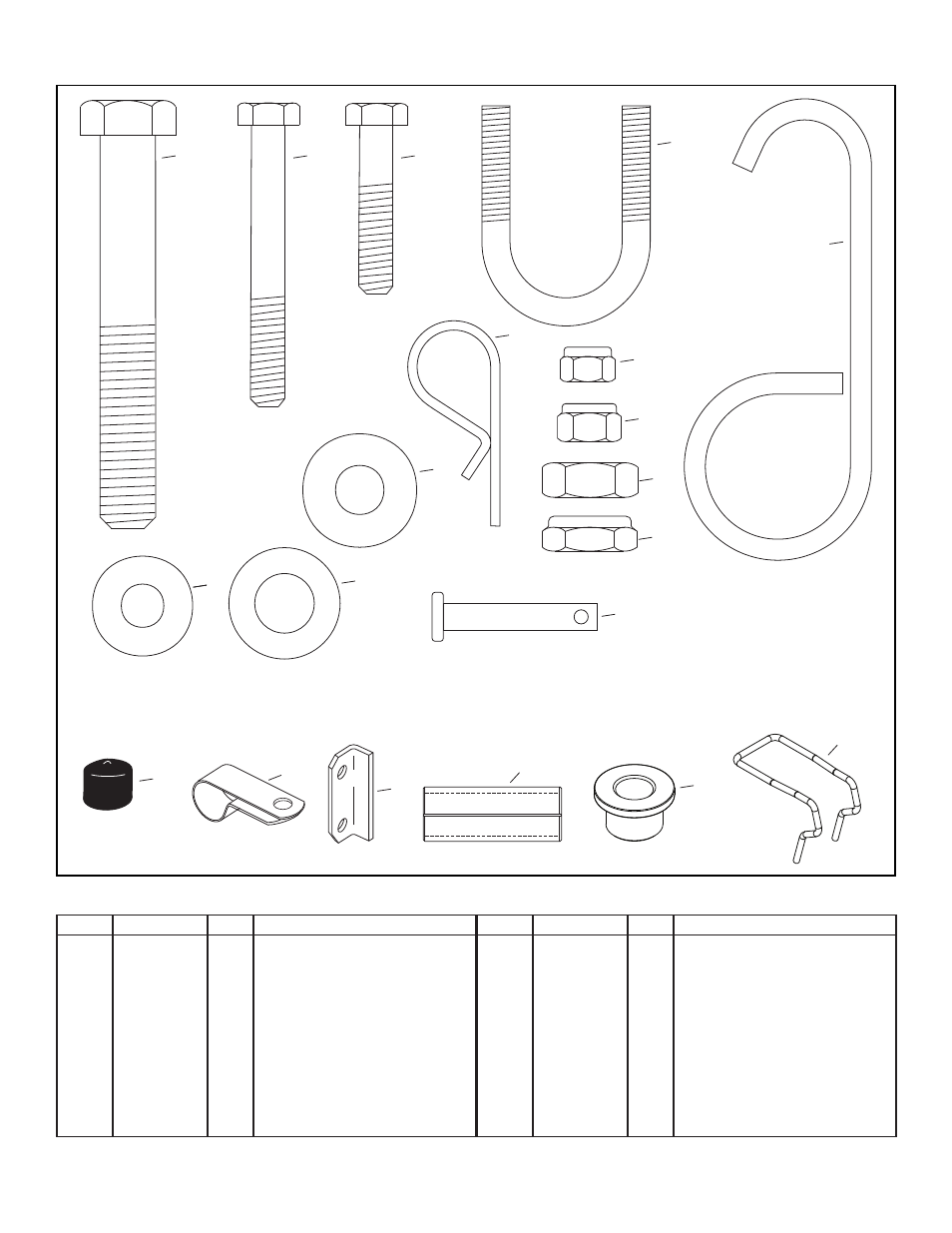

HARDWARE PACKAGE - Full SiZE
REF. PART nO. qTY. DESCRiPTiOn
5 46526 3 Hex Bolt, 1/2-13 x 3-1/2"
6 44292 2 Hex Bolt, 5/16-18 x 2-1/2"
7 43085 7 Hex Bolt, 5/16-18 x 1-1/2"
8 48813 2 U-Bolt, 1/4-20
9 48811 1 Hook, Transport
10 43081 2 Washer, 5/16"
11 R19171616 2 Washer, 1/2"
12 43070 14 Washer, 3/8"
13 43055 2 Hair Cotter Pin, 3/32"
14 47189 4 Nylock Nut, 1/4-20
REF. PART nO. qTY. DESCRiPTiOn
15 47810 9 Nylock Nut, 5/16-18
16 43019 1 Jam Nut, Plain 1/2-13
17 48115 3 Jam Nut, Nylock 1/2-13
18 48812 2 Clevis Pin, 5/16" x 1-3/8"
19 44481 2 Vinyl Cap
20 48917 2 Clamp
21 25054 2 Bracket, U-Bolt Clamp
22 46499 2 Spacer, .8 x 1 x 2.55"
23 741-0248 4 Flange Bearing
24 42212 1 SMARTSweep Hook
