EIA-485 Shield Termination
EIA-485 Without Conduit
26
Document 50520 Rev D 7/25/00 P/N 50520:D

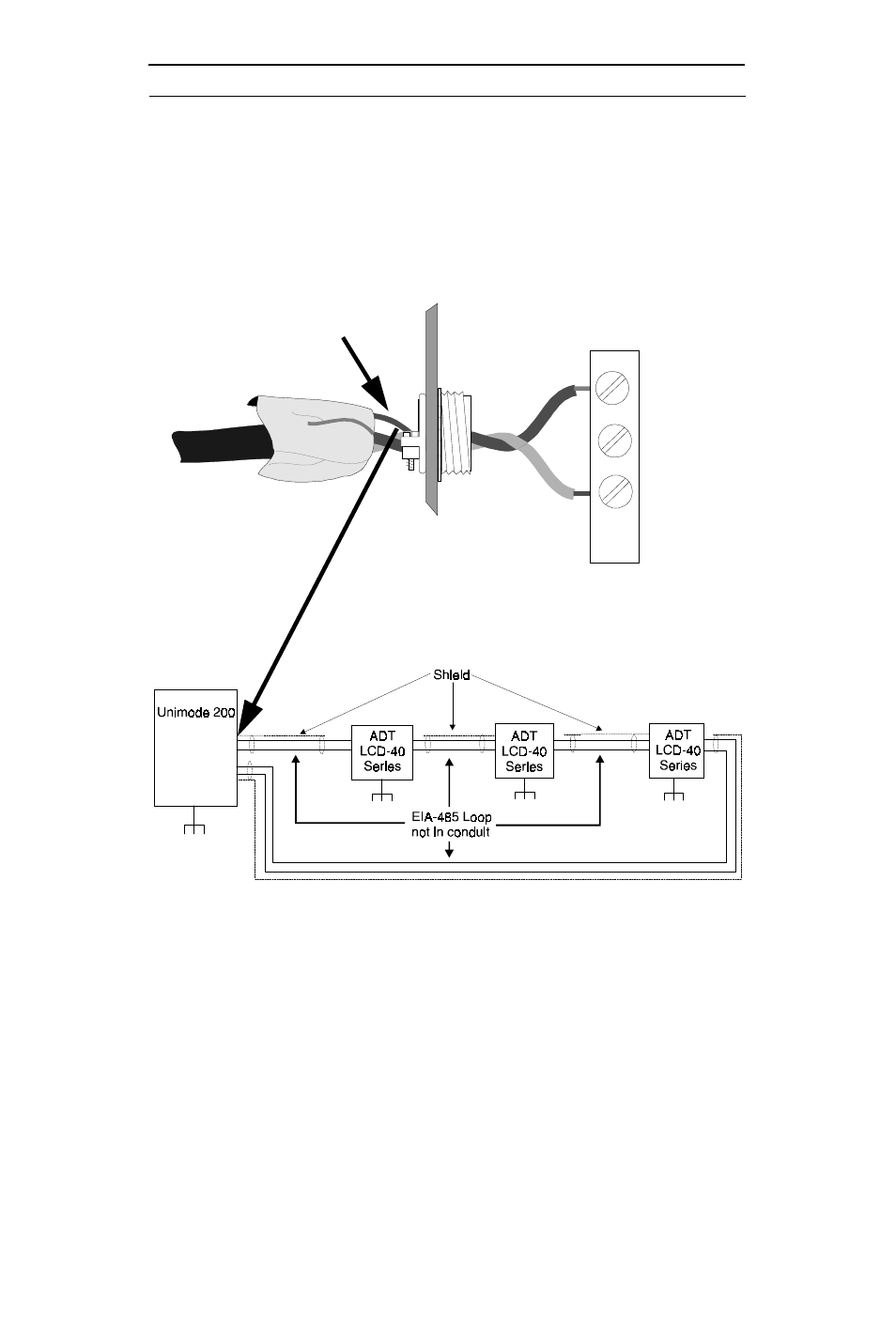

Figure 5-1: EIA-485 Without Conduit
Connect the drain wire to the outside
of the Unimode 200 cabinet via a BX-
type connector.
Shield Drain Wire
FACP Backbox
(+) EIA-485
(-) EIA-485
FACP
