ASSEMBLY
SM72 02/10 Assembly Section 3-5
© 2012 Alamo Group Inc.
ASSEMBL
Y

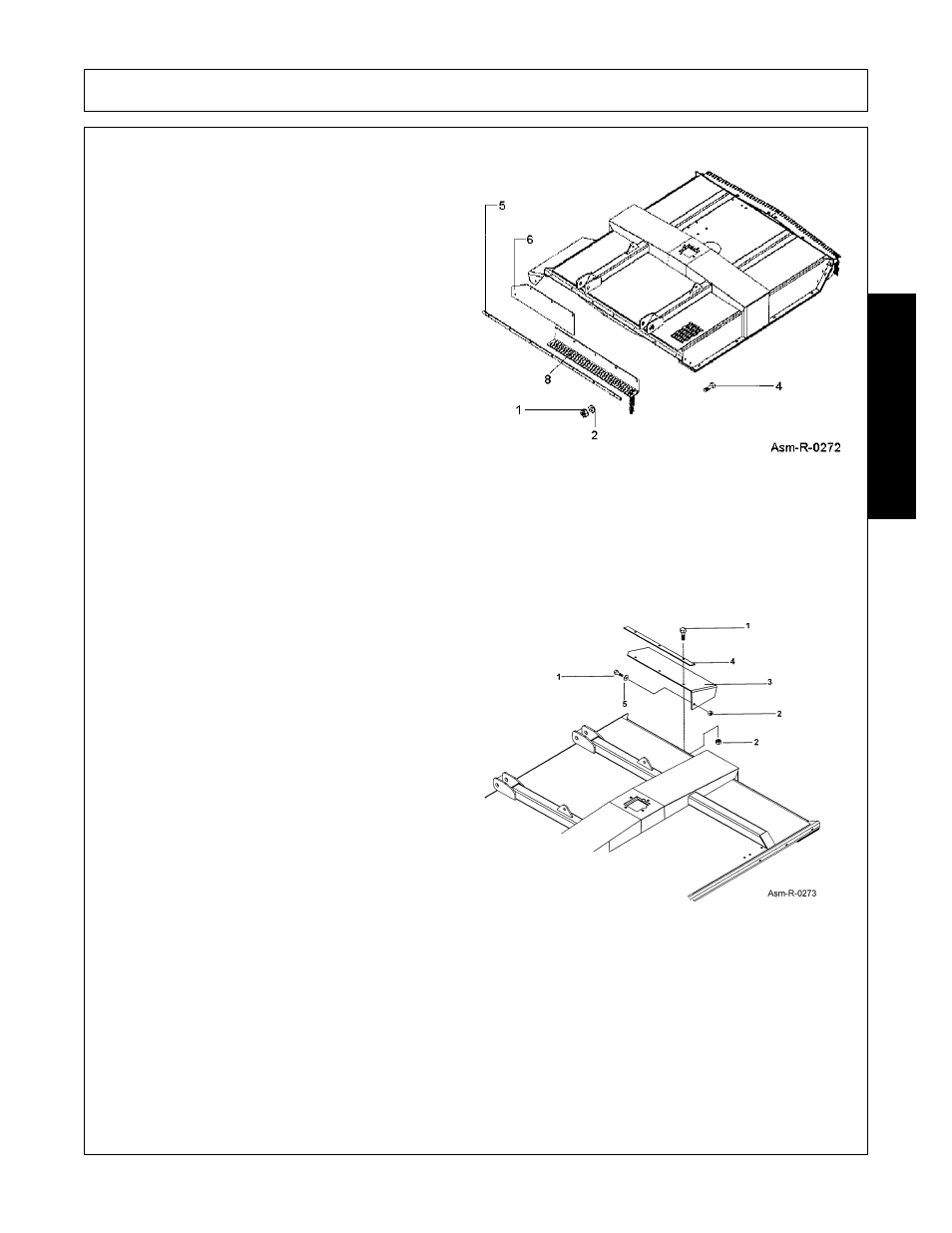

REAR CHAIN GUARD ASSEMBLY
1. Place Deflector Strap (6) against mower deck
left side and Chain Guard Bracket (8) against
mower deck right side. Place Rear Deflector
Panel (5) against bracket and deflector and
align hole through panel, deflector/bracket, and
mower deck and secure together using 1/2” x 1-
1/2” Bolts (4), Flatwashers (2), and Locknuts
(1).
2. Tighten all bolts and nuts to the recommended
torque. (Refer to Image Asm-R-0272)
SIDE DEFLECTOR ASSEMBLY
Place Side Deflector Panel (3) on top lip of left rear
discharge chute. Place Side Deflector Strap (4) on
top of panel and align holes of strap, panel, and
mower deck. Secure together using 1/2” x 1-1/4”
Bolts (1) and Locknuts (2).
1. Secure side deflector panel (3) end to chute
using bolts (1), Flatwasher (5), and Locknut (2).
2. Tighten all bolts and nuts to the recommended
torque. (Refer to Image Asm-R-0273)
Rear Chain Guard Assembly
Side Deflector Assembly
