Connections 2
PCL5e 2-1
2 Connections
2.1 Connection cables
✎
Preparation
Turn the PC and the Minoltafax 2800/3800 off, before you connect the
cables. When switching the machines back on, make sure to turn the
Minoltafax on before you turn the PC on.
✎
Auto detection
If the automatic detection for components is on, Windows will
automatically start setting up the new printer. Interrupt this procedure
before you begin with the installation.

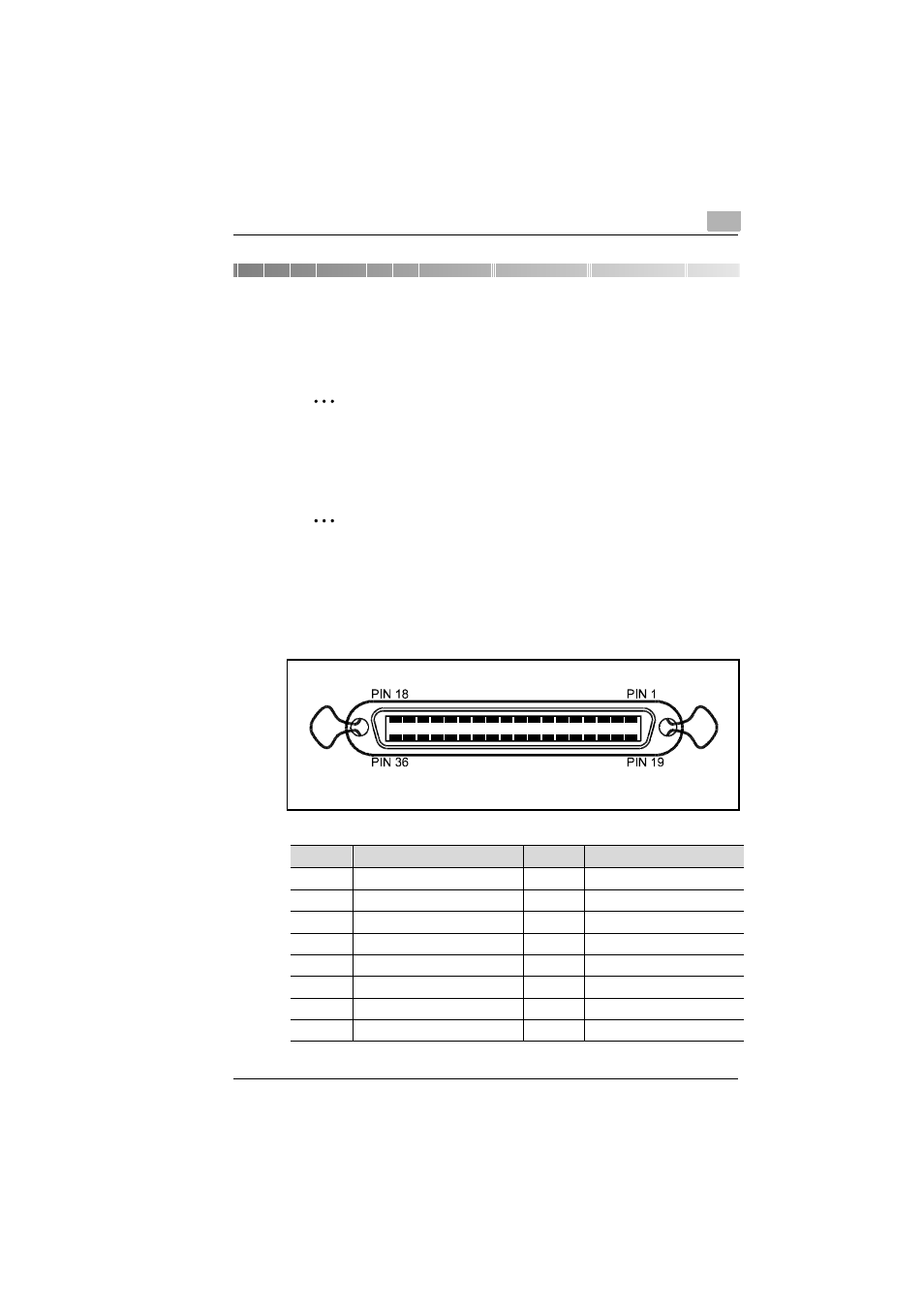

Use a parallel IEEE1284 type B interface cable to connect the printer to
the PC, the cable must have the following pin connections:
Pin no. Pin no.
1 - Store 19 GND
2 Data 1 (LSB) 20 GND
3 Data 2 21 GND
4 Data 3 22 GND
5 Data 4 23 GND
6 Data 5 24 GND
7 Data 6 25 GND
8 Data 7 26 GND
