SURT192RMXLBP2/SURT192XLBP2 6U User Manual 3
Introduction
About this unit
The American Power Conversion (APC ® ) SURT192RMXLBP2 external battery pack (XLBP) connects to an
APC Smart-UPS ® RT greater than 10 kVA. Together these units provide extended protection for electronic
equipment from utility power blackouts, brownouts, sags and surges. The UPS and the XLBP together provide
continuous power from the batteries until utility power returns to safe levels or the batteries are fully
discharged.
Unpack package contents
Read the Safety Guide before installing the unit.
Inspect the unit upon receipt. Notify the carrier and dealer if there is damage.
The packaging is recyclable; save it for reuse or dispose of it properly.
The unit is heavy. Remove the batteries from the cabinet prior to unpacking and installing the unit. Refer
to battery removal instructions on the packaging.
Check the package contents:
NOTE: The model and serial numbers are located on a small, rear panel label. For some models, an
additional label is located on the chassis under the front bezel.
• External battery pack
• Front bezel
• Ground wire
• Four tie brackets
• Sixteen ornamental screws
• Literature kit containing:
– Product documentation
– Smart-UPS® RT User Manuals CD
– Safety information
– Warranty information
• Rack-mount models also include:
– Four ornamental screws
– Eight flat head screws
– Two cage nuts
– Two rail cleats
– Four pan head screws
– Two rack-mount brackets
4
4
8
20
2
2
2

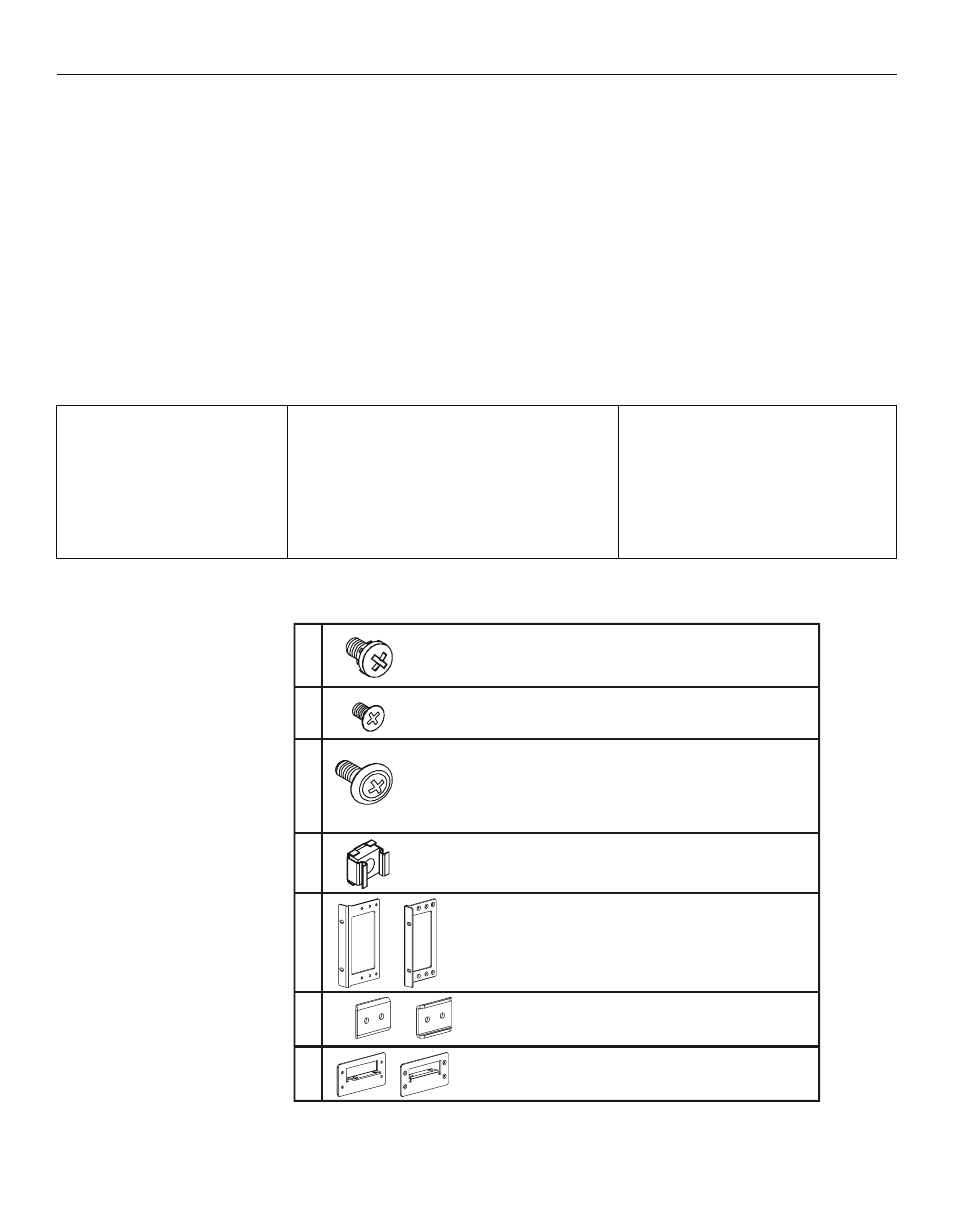

Hardware
Rack-mount configuration:
pan head screws for securing rail cleats to unit
Flat head screws for securing
rack-mount brackets to units
Rack-mount configuration:
cage nuts for rack installation
Rack-mount brackets
Rail cleats
Stack configuration only:
tie brackets for stabilizing units
Stack configuration:
ornamental screws for securing tie brackets to units
Rack-mount configuration:
ornamental screws for securing units in rack
