Release the mdc cable, Disconnect the cable to the modem header, Remove the keyboard – Acer 1710 User Manual
Page 68: Remove the led board
59
Aspire 1710

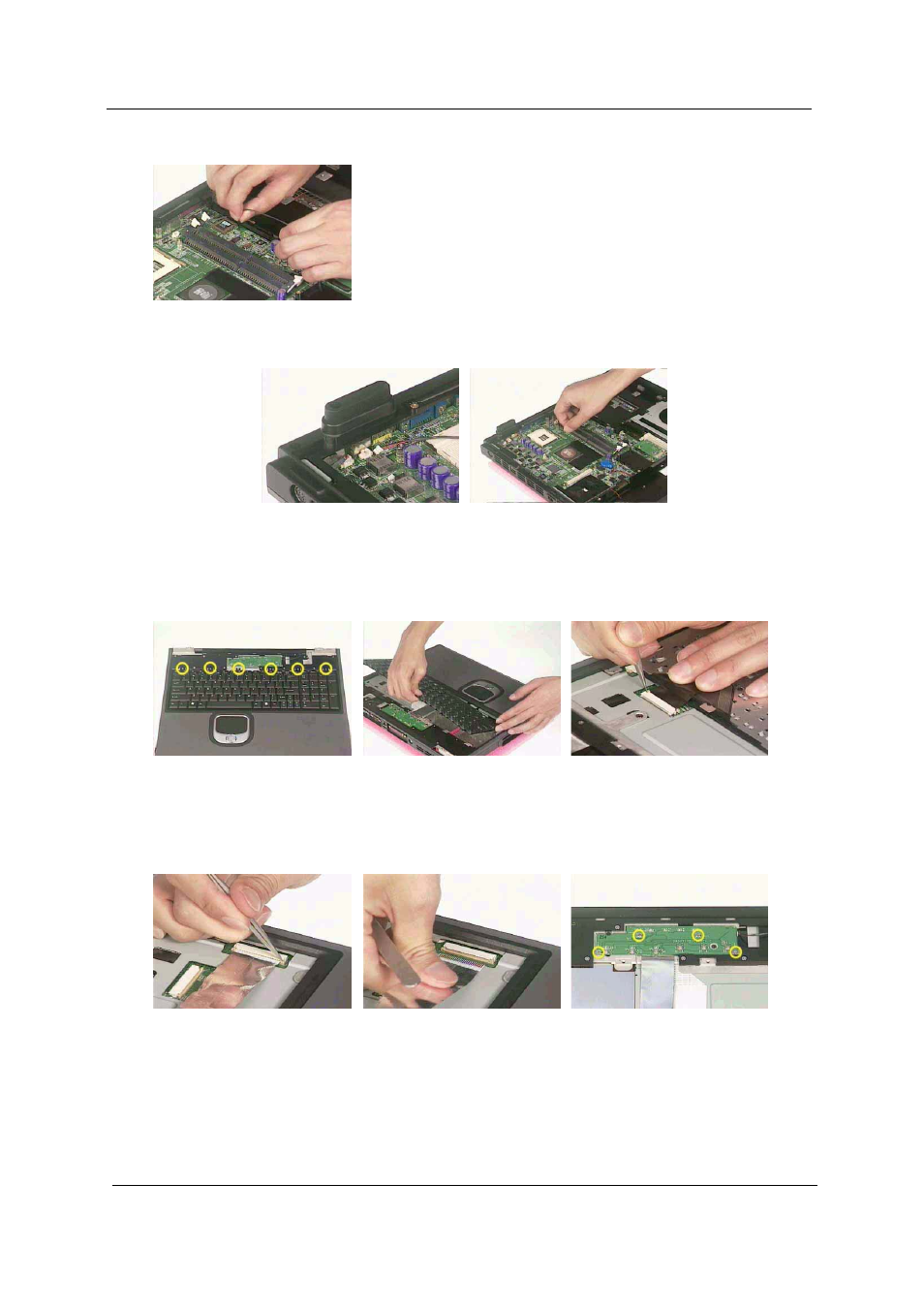

Release the MDC cable.
Disconnect the cable to the modem header.
Remove the keyboard
1.
Remove the six screws the secure the keyboard.
2.
Remove the keyboard and disconnect the attached cable.
Remove the LED board
1.
Detach the LED ribbon cable.
2.
Remove the four screws that secure the LED board.
