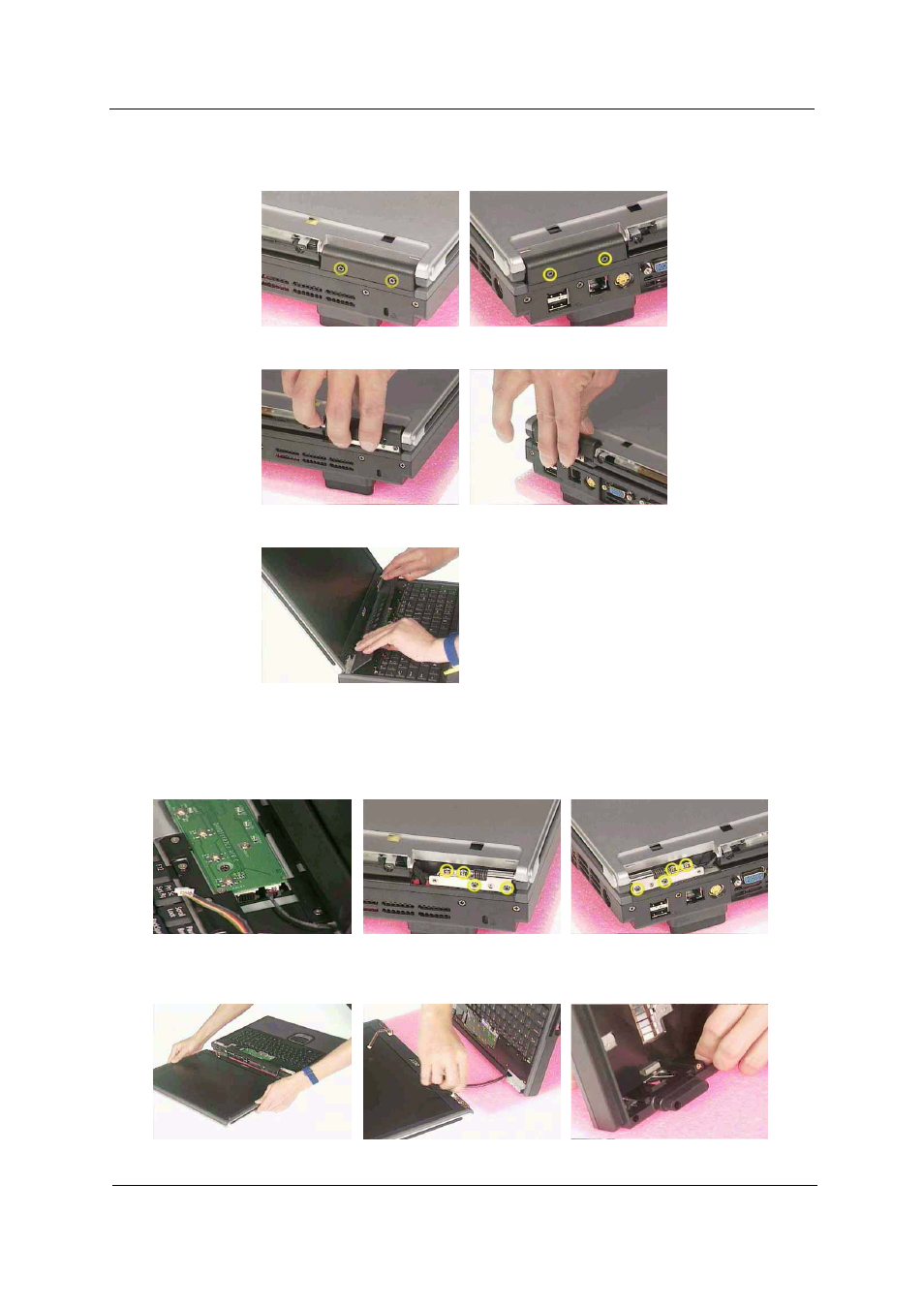

Detach the upper system cover
1.
Remove the two screws on the one side, and the two screws on the other. .
2.
Remove the hinge covers on each side
3.
Detach the upper system cover (middle cover).
Remove the LCD module
1.
Detach the LED cable from the LED board.
2.
Remove the screws that secure the hinge. And the other side.
3.
Detach the LCD panel from the main unit and place the panel by turning 180 degrees.
4.
Release the cables by following the instructions here carefully.
