Setting up the hardware environment – Abocom AR1000 User Manual
Page 4
- 3 -
Setting Up the Hardware Environment
Connecting All Cables to the Network
Perform the following procedures to set up the ADSL ROUTER.
Step 1 Connect the power adapter to the port labeled 5VDC on the rear panel of this
device.
Step 2 Connect the Ethernet cable.

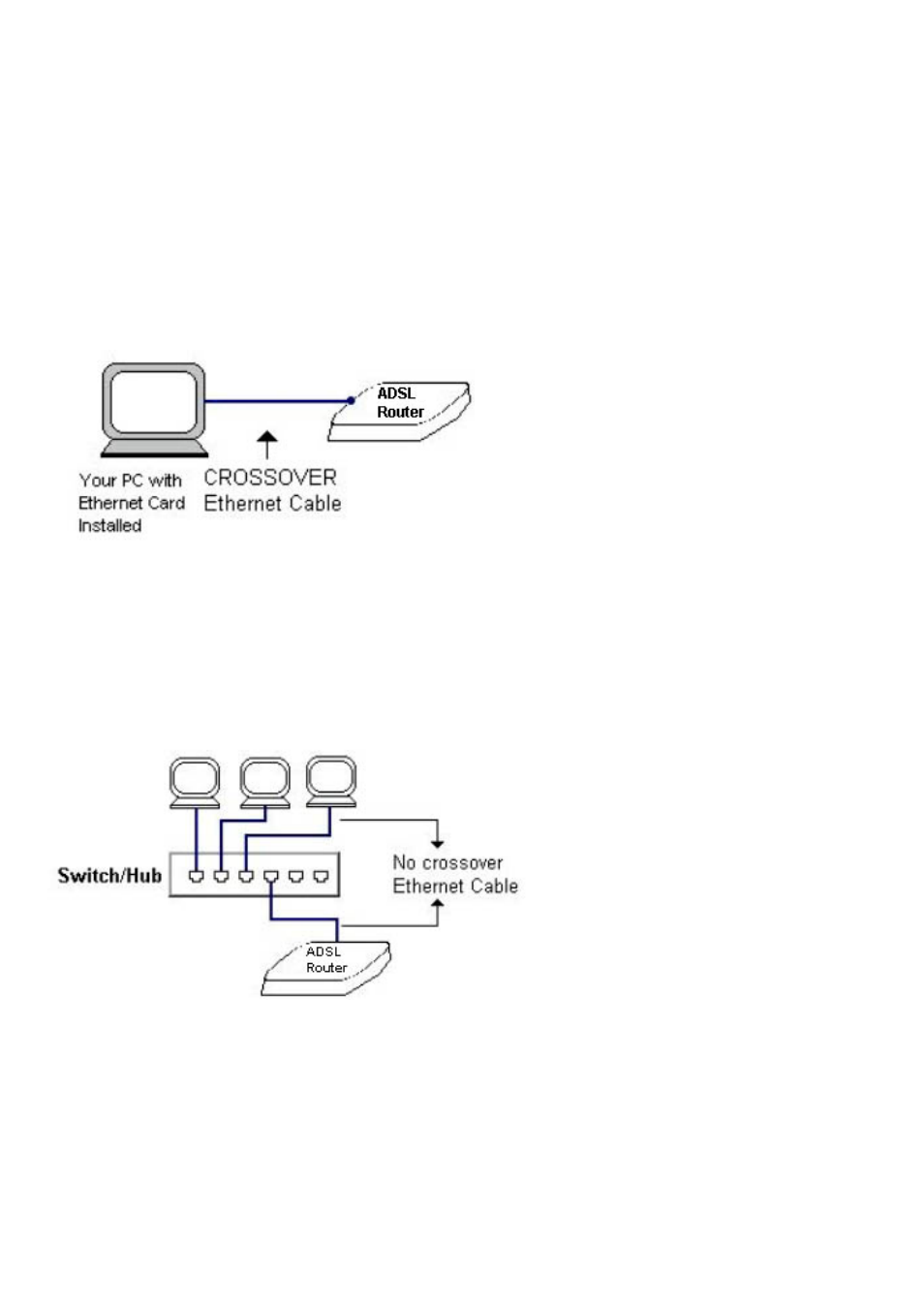

One PC – ADSL Router (direct connection)
If your only have one PC, you can connect your ADSL ROUTER to the PC directly without
a hub. For a single Ethernet-equipped PC, use the "non-hub" twisted-pair crossover cable to
connect the ADSL ROUTER Ethernet port to the Ethernet port on your computer.
Home Network – ADSL Router (connection through Ethernet Switch/Hub)
If your ADSL ROUTER is connected to a home network, you may use a standard Ethernet
cable (not provided) to connect your ADSL ROUTER Ethernet port to an available port on
your home network Ethernet hub.
Step 3 Connect the ADSL cable to the ADSL ROUTER. Connect the ADSL ROUTER to
the ADSL line with the provided telephone cable.
