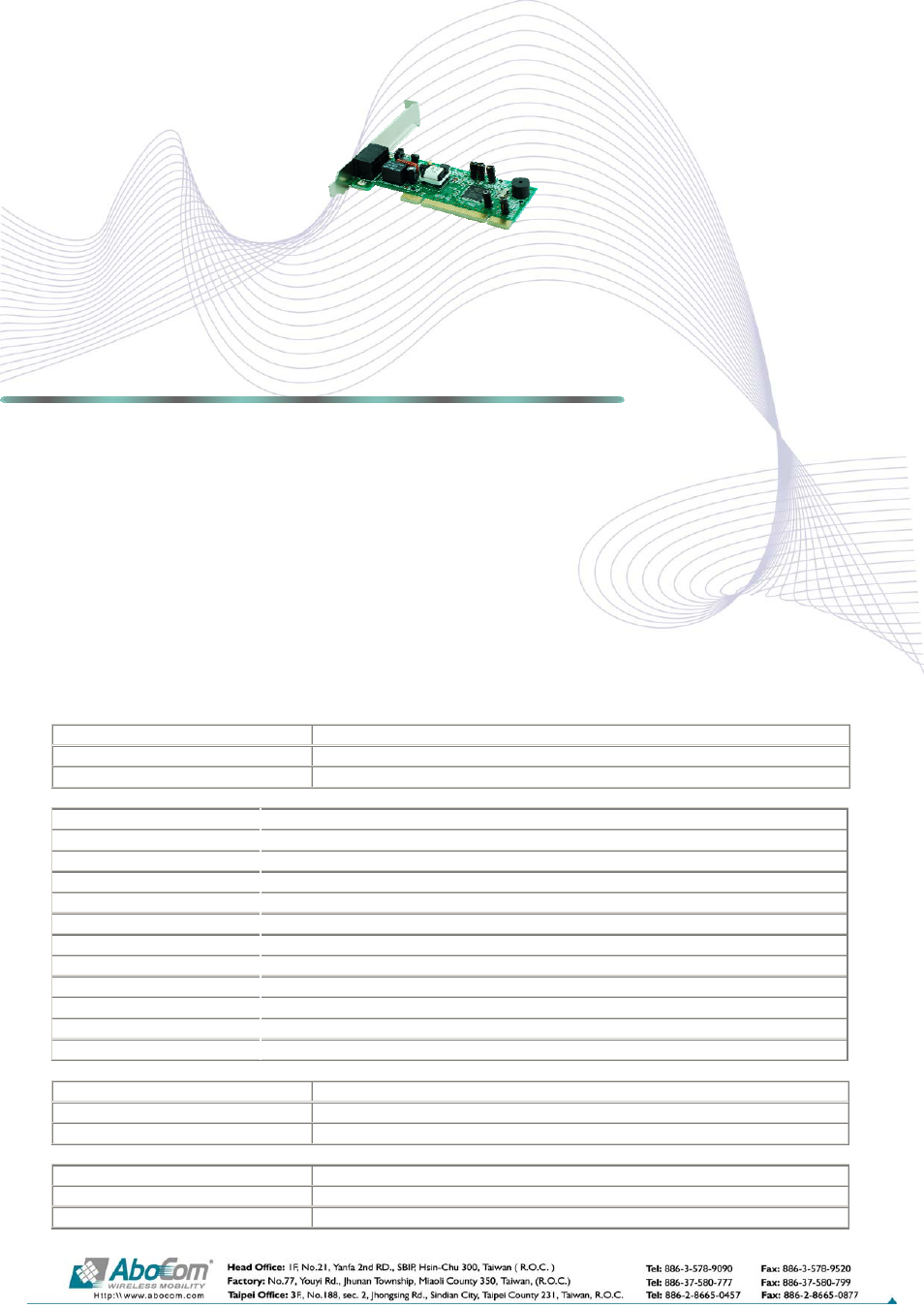

Abocom MC-56SVV - Manual

MC-56SVV
PCI V.92 Modem
Features
z Conexant Software PCI solution
z Designed for Microsoft Windows (WHQL)
z 56Kbps download speed from Internet
z ITU-V.92 and K56Flex Dual Standards
z Quick Connect
z Modem-on-Hold
z Upstream up to 48Kbps
z Telephone Answering Machine (TAM) and Voice
Mail Operations
z 16550/A Compatible Enhanced UART for
Sustained DTE Speed of 115,200bps
z Driver-Supports Windows 2000 /XP/Vista32/
Vista64/Linux
Specification
General
Configuration PCI/PnP
Line Interface 2 x RJ-11 for the line and telephone
DTE Interface 16550/A compatible UART with 16 bite double buffered FIFO
Modem Operation
Line Rate 0.3, 1.2, 2.4, 4.8, 7.2, 9.6, 12, 14.4, 16.8, 19.2, 21.6, 24, 26.4, 28.8, 31.2, 33.6, 56 Kbps
DTE Rate 115200 bps maximum
Operation Half or full-duplex over 2-wire dial-up line Asynchronous
Linking Auto dial/answer, auto bauding, MNP10 auto fall- back/forward
Flow Control RTS/CTS, XON/XOFF (software selectable)
Compatibility Bell 103; 212A, ITU-T V.21; V.22; V.23, V.22bis; V.32; V.32bis; V.34; K56flex, V.90, V.92
Error Correction ITU-T V.42, MNP4 (auto-match)
Data Compression ITU-T V.42bis, V.44, MNP5 (auto-match)
Receive Sensitivity -36 dBm
Command Set AT command and Escape sequence
Memory 1 configuration profile
Diagnostics Power on self-test, V.54 loop test
Voice Operation
Operation Telephone Answering Machine (TAM), Voice mail system
Sampling Rate Voice 7.2 KHz using 2, 3 or 4 bits ADPCM, 11.025 KHz linear PCM
ITU-T V.80 Synchronous access modes support based communication protocols
Fax Operation
Speed 14400 bps
Compatibility Group 3 with T.30 protocol over ITU-T V.17; V.21 ch2, V.27ter; V.29
Command Set EIA/TIA 578 class 1 and T.31 class 1.0 command sets
