To remove and reinstall the system stand, do the following:
1. Turn off the computer and disconnect all power cords from electrical outlets.
2. Remove the system stand hinge cover. See “Removing and reinstalling the system stand hinge cover”
on page 67.
3. Remove the two screws that secure the system stand, and then lift the system stand up and remove
it from the computer.

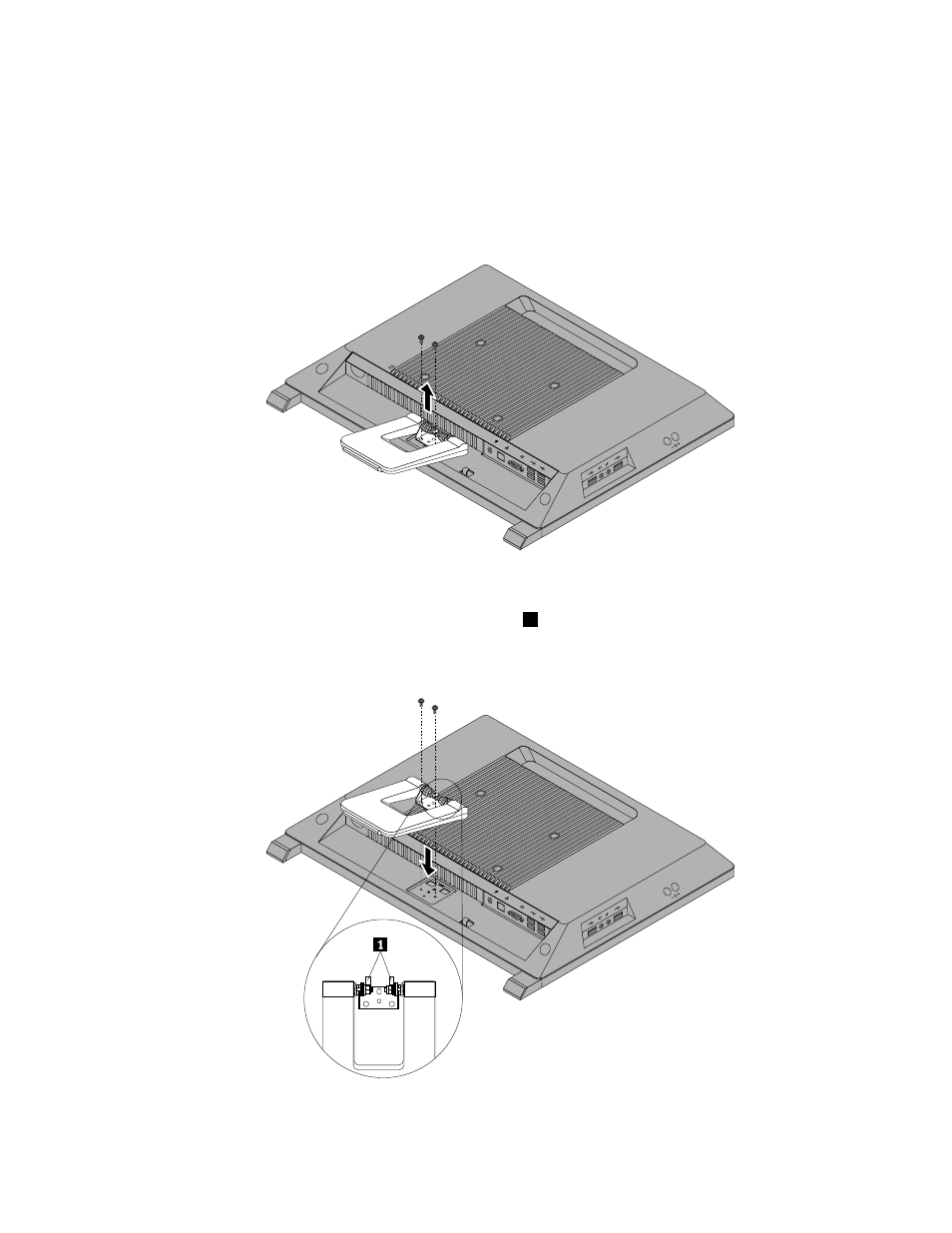

Figure 7. Removing the system stand
4. To reinstall the system stand, insert the two metal tabs 1 on the system stand into the two holes in the
chassis. Then, align the two screw holes with the corresponding holes in the chassis, and install the two
screws to secure the system stand to the computer.
Figure 8. Reinstalling the system stand
Chapter 9 . Replacing FRUs 69
