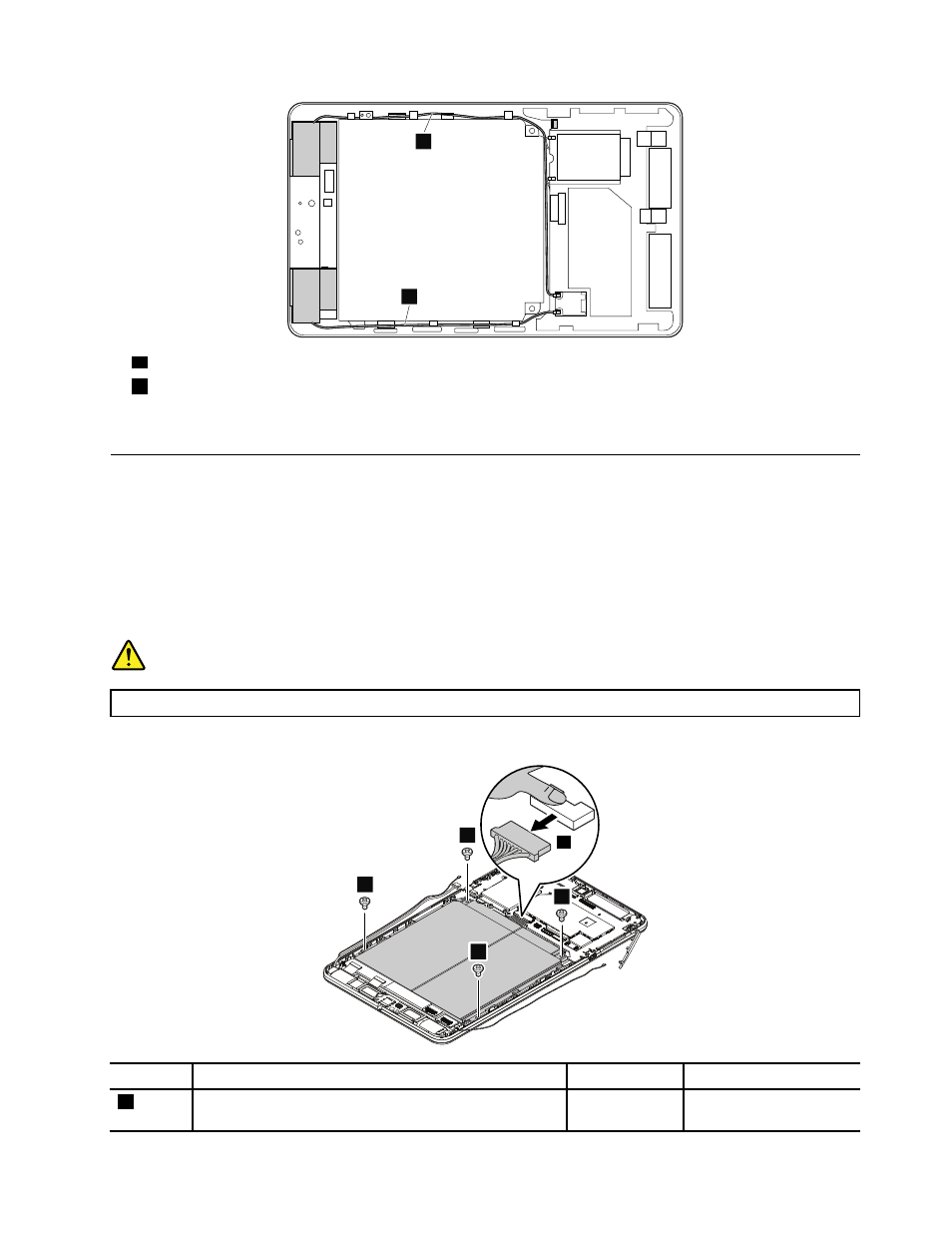

Lenovo ThinkPad 8 - Manual (Page 57)

a
b
a Wireless-LAN antenna (Main)
b Wireless-LAN antenna (Auxiliary)
When installing: Ensure that the connectors are attached firmly.
1130 Built-in battery
For access, remove this FRU:
•
“1010 Back cover assembly” on page 41
• “1060 Audio-card cable” on page 45
• “1070 Audio card” on page 46
• “1080 Touch-sensor-card support bracket” on page 46
• “1100 Display cable” on page 49
• “1110 Touch-sensor cable” on page 49
DANGER
Use only the authorized battery specified for your tablet. Any other battery could ignite or explode.
Removal steps of the built-in battery
1
2
2
2
2
Step Screw (quantity) Color Torque
2 M1.6 × 2.5 mm, flat-head, nylon-coated (4) Black 0.098 Nm
(1.00 kgf-cm)
Chapter 7 . Removing or replacing a FRU 51
