1110 LCD front bezel
For access, remove these FRUs in order:
• “1010 Keyboard” on page 36
• “1020 Battery pack” on page 38
• “1040 Hard disk drive” on page 42
• “1050 DIMM” on page 44
• “1060 PCI Express Mini Card for wireless LAN/WAN and SSD card” on
page 45
• “1080 Fan assembly and Heat Sink assembly” on page 51
• “1070 System board” on page 47
• “1090 LCD unit” on page 53
• “1100 Speaker, base cover, finger printer board, power assembly and LED
board” on page 55

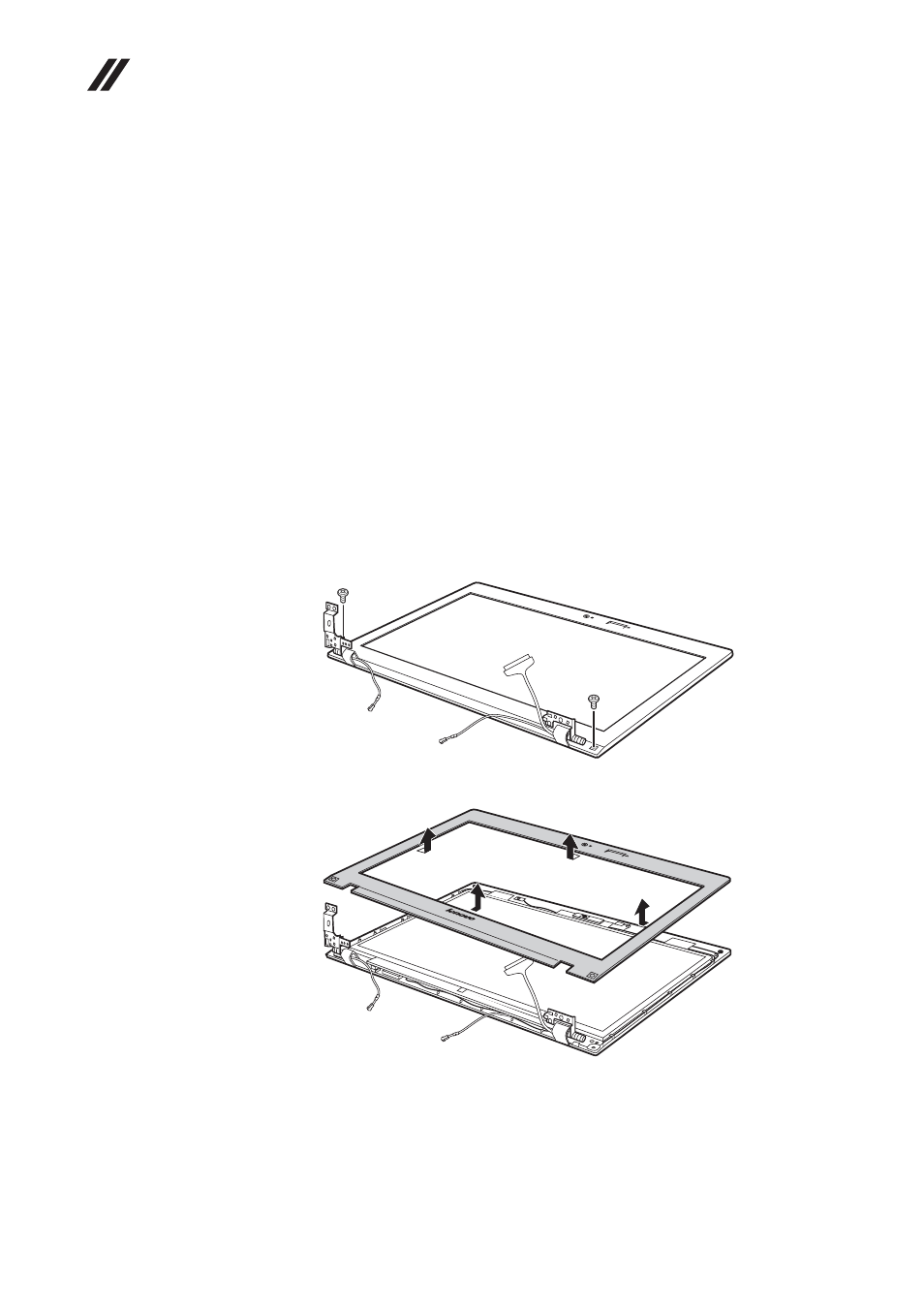

Figure 11. Removal steps of LCD front bezel
Remove screws .
Remove the LCD front bezel in the direction shown by arrows .
a
a
a
b
b
b
b
b
