Overall – Lenovo K49 Notebook User Manual
Page 90

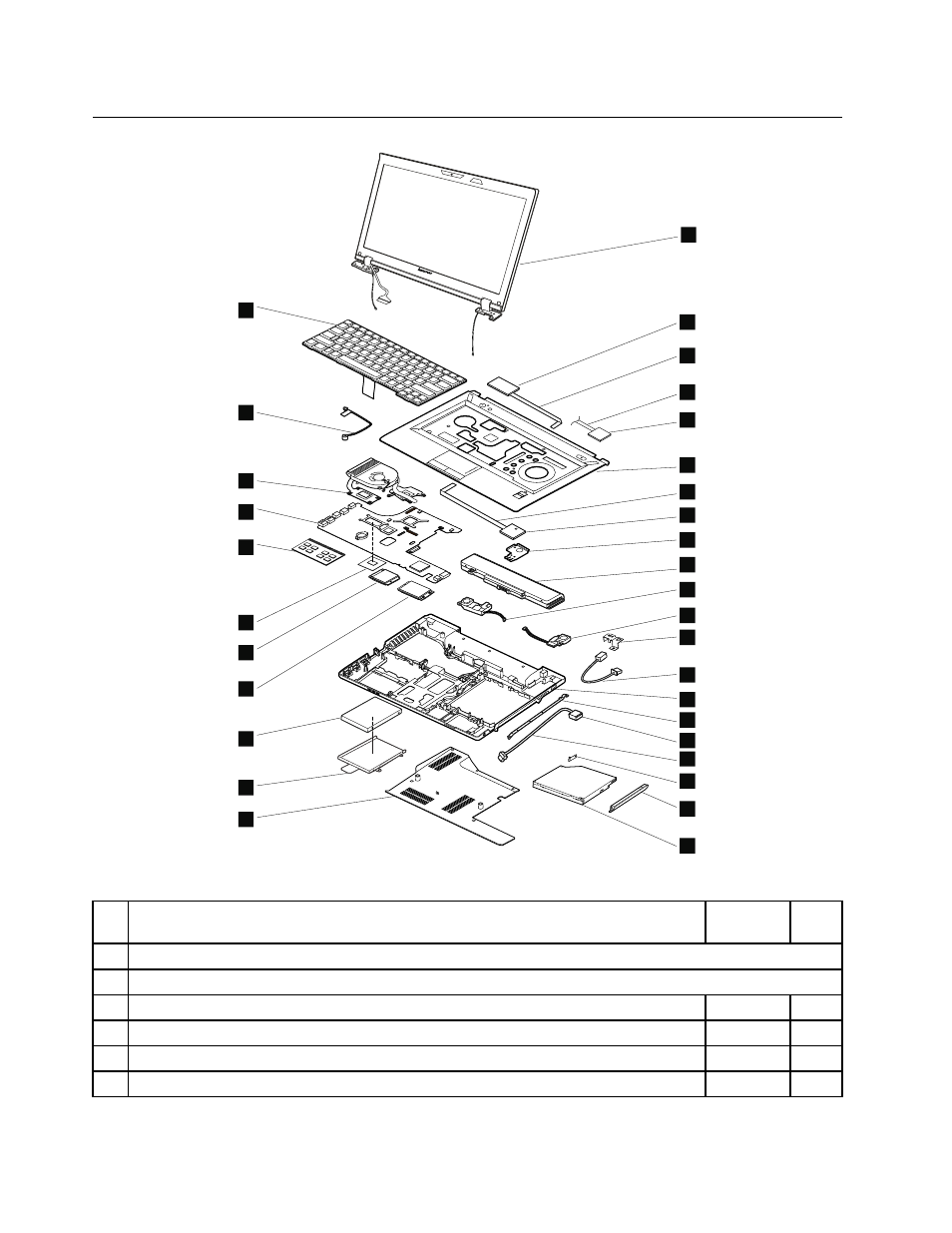

Overall
1
2
a
4
3
b
5
c
d
6
8
7
e
f
9
h
10
i
11
g
j
k
12
13
14
15
16
17
18
19
20
21
Table 3. Parts list—Overall
No. FRU (Overall)
FRU No.
CRU
ID
a-k
See “Miscellaneous parts” on page 88.
1
LCD unit (see “LCD FRUs” on page 86)
2
LLP Power Board
90000350
N
3
LLP Function Board
90000351
N
4
LLP Upper Case W/TP
90201078
N
5
LLP FingerPrint Board
90000349
N
84
Hardware Maintenance Manual
