Chapter 8. Locations
This chapter presents the locations of the hardware components.
Front view
2
1
2
9
8
4
3
4
5
7
6

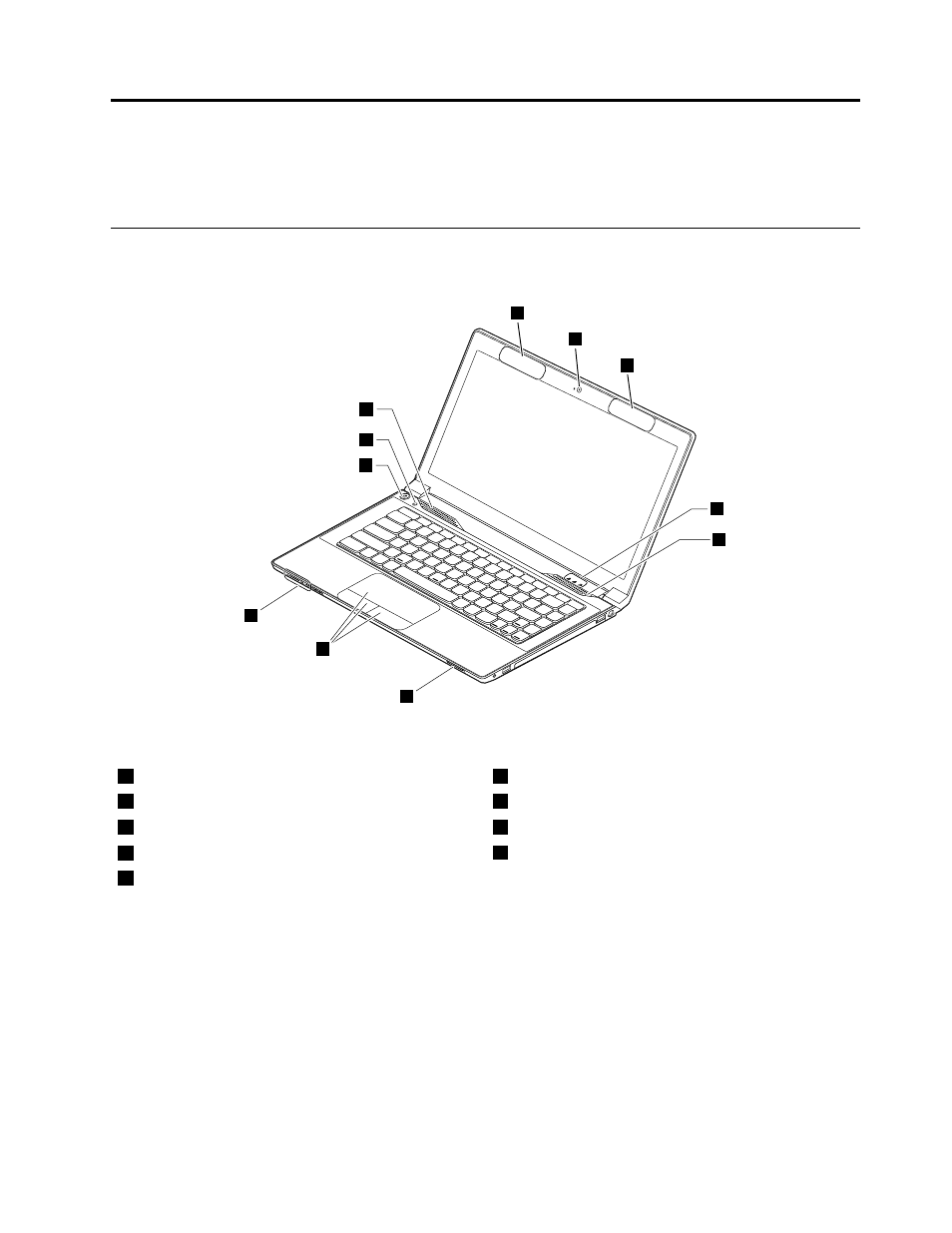

Figure 1. Front view
1 Integrated camera (on some models) 6 Touch pad and touch pad buttons
2 Wireless module antennas 7 Power and battery status indicator 1
3 Status indicators 1 8 Power button
4 Speakers 9 Recovery button
5 Media card reader slot
1 For the description of the indicators, see “Status indicators” on page 38.
